6.6 Typical Characteristics

over operating temperature range (TJ = –40°C to +125°C), VIN = VOUT(TYP) + 0.3 V or 2.7 V, whichever is greater; IOUT = 1 mA, VEN = VIN, COUT = 2.2 μF, and CNR = 0.01 μF (unless otherwise noted); for TPS79901-Q1, VOUT = 3 V; typical values are at TJ = 25°C

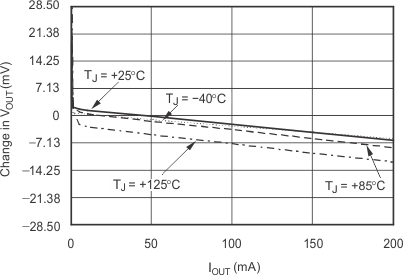

Figure 6-1 Load Regulation

Figure 6-3 Output Voltage vs Junction Temperature

Figure 6-5 Ground Pin Current vs Input Voltage

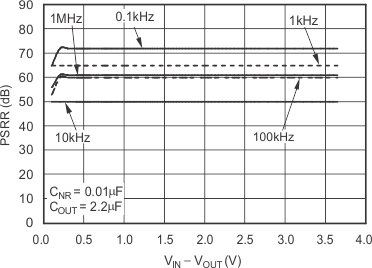

Figure 6-7 Power-Supply Ripple Rejection vs VIN – VOUT, IOUT = 1 mA

Figure 6-9 Power-Supply Ripple Rejection vs VIN – VOUT, IOUT = 200 mA

Figure 6-2 Line Regulation

Figure 6-4 TPS79901-Q1 Dropout vs Input Voltage

Figure 6-6 Ground Pin Current (Disabled) vs Junction Temperature

Figure 6-8 Power-Supply Ripple Rejection vs VIN – VOUT, IOUT = 100 mA
