6 Specifications

6.1 Absolute Maximum Ratings

over operating free-air temperature range (unless otherwise noted)(1)
MIN MAX UNIT
Supply inputs VIN –0.3 45 V
VIN_LDO –0.3 20
VIN – VIN_LDO –0.3 45
Control EN1, EN2 –0.3 45 V
EN1-VIN, EN2-VIN 1
Buck converter FB1 –0.3 3.6 V
SW –0.3
–2 V for 30 ns 		40
BOOT –0.3 46
BOOT-SW 8
COMP –0.3 3.6
SS –0.3 3.6
RT/CLK, SS –0.3 3.6
LDO regulator LDO_OUT –0.3 7 V
FB2 –0.3 7
nRST –0.3 7
Operating ambient temperature, TA –40 125 °C
Operating junction temperature, TJ –40 150
Storage temperature, Tstg –55 165 °C
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

6.2 ESD Ratings

VALUE UNIT
V(ESD) Electrostatic discharge Human-body model (HBM), per AEC Q100-002(1) ±2000 V
Charged-device model (CDM), per AEC Q100-011 All pins ±500
Corner pins (1, 7, 8, and 14) ±750
(1) AEC Q100-002 indicates that HBM stressing shall be in accordance with the ANSI/ESDA/JEDEC JS-001 specification.

6.3 Recommended Operating Conditions

over operating free-air temperature range (unless otherwise noted)
MIN MAX UNIT
Supply inputs VIN 3.6 40 V
VIN_LDO 3 20
Buck regulator BOOT1 3.6 46 V
SW1 –1 40
VFB1 0 3
SS 0 3
COMP 0 3
RT/CLK 0 3
LDO regulator LDO_OUT 1.1 5.5 V
VFB2 0 5.25
nRST 0 5.25
Control EN1 0 40 V
EN2 0 40
Operating junction temperature, TJ –40 150 °C

6.4 Thermal Information

THERMAL METRIC(1) TPS65320-Q1 UNIT
PWP (HTSSOP)
14 PINS
RθJA Junction-to-ambient thermal resistance 49.9 °C/W
RθJC(top) Junction-to-case (top) thermal resistance 31 °C/W
RθJB Junction-to-board thermal resistance 26.6 °C/W
ψJT Junction-to-top characterization parameter 1 °C/W
ψJB Junction-to-board characterization parameter 26.4 °C/W
RθJC(bot) Junction-to-case (bottom) thermal resistance 3.7 °C/W
(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report, SPRS953.

6.5 Electrical Characteristics

VI = 6 V to 27 V, EN1 = EN2 = VI, over-operating free-air temperature range TA = –40°C to +125°C and maximum operating junction temperature TJ = –40°C to +150°C, unless otherwise noted. VI is the voltage on the battery-supply pins, VIN and VIN_LDO.
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
VIN (INPUT POWER SUPPLY)
Operating input voltage Normal mode, after initial start-up 3.6 14 40 V
Shutdown supply current V(EN1) = V(EN2) = 0 V, 25°C 2 7 μA
Initial start-up voltage 6 40 V
ENABLE AND UVLO (EN1 AND EN2 PINS)
Enable low level 0.7 V
Enable high level 2.5 V
V(VIN)(f) Internal UVLO falling threshold Ramp V(VIN) down until output turns OFF 2 2.6 3 V
V(VIN)(r) Internal UVLO rising threshold Ramp V(VIN) up until output turns ON 2.2 2.8 3.2 V
BUCK REGULATOR
Operating: non-switching supply V(FB1) = 0.83 V, V(VIN) = 12 V, 25°C 110 140 μA
Output capacitor ESR = 0.001 Ω to 0.1 Ω, large output capacitance may be required for load transient 10 μF
BUCK REGULATOR: HIGH-SIDE MOSFET
On-resistance V(VIN) = 12 V, V(SW) = 6 V 127 250 mΩ
BUCK REGULATOR: ERROR AMPLIFIER
Input current 50 nA
Error-amplifier transconductance (gm) –2 µA < I(COMP) < 2 µA, V(COMP) = 1 V 310 µS
Error-amplifier transconductance (gm) during soft start –2 µA < I(COMP) < 2 µA, V(COMP) = 1 V
V(FB1) = 0.4 V		 70 µS
Error-amplifier dc gain V(FB1) = 0.8 V 100 dB
Error-amplifier bandwidth 6000 kHz
Error-amplifier source or sink V(COMP) = 1 V, 100-mV overdrive ±27 μA
COMP to switch-current transconductance 10.5 S
Vref1 Voltage reference for FB1 pin Buck regulator output: 3.6 V to 10 V 0.788 0.8 0.812 V
BUCK REGULATOR: CURRENT-LIMIT
Current-limit threshold V(VIN) = 12 V, TJ = 25°C 4 6 A
BUCK REGULATOR: TIMING RESISTOR AND EXTERNAL CLOCK (RT/CLK PIN)
RT/CLK High threshold 1.9 2.2 V
RT/CLK Low threshold 0.5 0.7 V
BUCK REGULATOR: INTERNAL SOFT START TIMER
IS(SS) Soft-start source current V(SS) = 0 V 1 2 4 μA
LDO REGULATOR
ΔVO(ΔVI) Line regulation V(VIN) = 6 V to 30 V, I(LDO_OUT) = 10 mA, V(LDO_OUT) = 3.3 V 20 mV
ΔVO(ΔIL) Load regulation I(LDO_OUT) = 10 mA to 200 mA, V(VIN_LDO) = 14 V, V(LDO_OUT) = 3.3 V 35 mV
VDROPOUT
(V(VIN_LDO) – V(LDO_OUT))		 Dropout voltage I(LDO_OUT) = 200 mA 300 450 mV
I(LDO_OUT) Output current V(LDO_OUT) in regulation 0 280 mA
Error-amplifier dc gain 800 V/V
V(VIN_LDO) Operating input voltage on VIN_LDO pin Buck regulator is in regulation and supplying at least LDO output plus dropout voltage VDROPOUT 3 20 V
Vref2 Voltage reference for FB2 pin V(LDO_OUT) = 1.2 V to 5 V 0.788 0.8 0.812 V
ICL(LDO_OUT) Output current limit V(LDO_OUT) = 0 V (LDO_OUT pin is shorted to ground.) 280 1000 mA
IQ(LDO) Quiescent current V(VIN) > 9 V, V(EN1) = 0 V, V(EN2) = 5 V, I(LDO_OUT) = 0.01 mA to 0.75 mA, TJ = 25°C 28 75 μA
PSRR Power supply ripple rejection V(VIN_LDO)(rip) = 0.5 VPP, I(LDO_OUT) = 200 mA, frequency = 100 Hz, V(LDO_OUT) = 5 V and V(LDO_OUT) = 3.3 V 60 dB
PSRR Power supply ripple rejection VVIN_LDO(rip) = 0.5 VPP, I(LDO_OUT) = 200 mA, frequency = 150 kHz, V(LDO_OUT) = 5 V and V(LDO_OUT) = 3.3 V 30 dB
Output capacitor ESR = 0.001 Ω to 100 mΩ, large output capacitance may be required for load transient, V(LDO_OUT) ≥ 3.3 V 1 40 μF
ESR = 0.001 Ω to 100 mΩ, large output capacitance may be required for load transient, 1.2 V ≤ V(LDO_OUT) < 3.3 V 20 40 μF
LDO REGULATOR: RESET (nRST PIN)
RESET threshold V(LDO_OUT) decreasing 88% 92% 95%
VOH Output high Reset released due to rising LDO_OUT, V(LDO_OUT) ≥ 3.3 V, IOH = 100 µA –5% × V(LDO_OUT) V
VOL Output low Reset asserted due to falling LDO_OUT, IOL = 1 mA 0 0.045 0.4 V
OVERTEMPERATURE PROTECTION
TSD Thermal-shutdown trip point 155 ºC
Thys Hysteresis 10 ºC

6.6 Timing Requirements

VI = 6 V to 27 V, EN1 = EN2 = VI, over-operating free-air temperature range TA = –40°C to +125°C and maximum operating junction temperature TJ = –40°C to +150°C, unless otherwise noted
MIN TYP MAX UNIT
BUCK REGULATOR: TIMING RESISTOR AND EXTERNAL CLOCK (RT/CLK PIN)
Minimum CLK input pulse width 40 ns

6.7 Switching Characteristics

VI = 6 V to 27 V, EN1 = EN2 = VI, over-operating free-air temperature range TA = –40°C to +125°C and maximum operating junction temperature TJ = –40°C to +150°C, unless otherwise noted
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
BUCK REGULATOR: HIGH-SIDE MOSFET
tonmin Minimum on-time ƒS = 2.5 MHz 100 ns
BUCK REGULATOR: TIMING RESISTOR AND EXTERNAL CLOCK (RT/CLK PIN)
ƒS Switching-frequency range using RT mode 100 2500 kHz
ƒS Switching frequency 200 kΩ connected between pin RT/CLK and GND 450 581 720 kHz
ƒS Switching-frequency range using CLK mode 300 2200 kHz
RT/CLK Falling edge to SW rising edge delay Measured at 500 kHz with 200-kΩ series resistor connected to RT/CLK pin 60 ns
PLL Lock-in time Measured at 500 kHz 100 μs
LDO REGULATOR: RESET (nRST PIN)
Filter time Delay before asserting nRST low 6 10 15 μs

6.8 Typical Characteristics

TPS65320-Q1 C002_SLVSAY9.gif
ƒS = 2 MHz

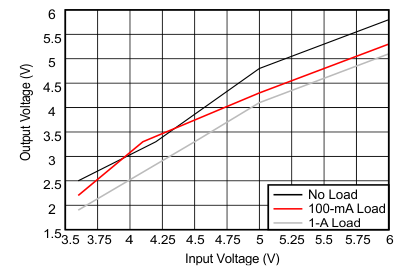

Figure 1. Buck-Regulator Output Voltage
TPS65320-Q1 C004_SLVSAY9.gif
V(VIN) = 12 V

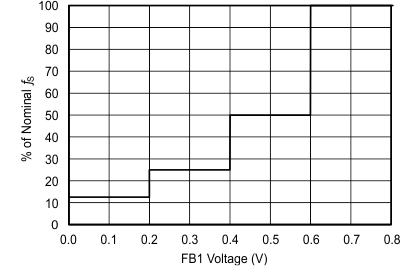

Figure 2. Buck-Regulator Switching Frequency vs V(FB1) Feedback Voltage
TPS65320-Q1 C003_SLVSAY9.gif
V(VIN) = 12 V TJ = 25°C

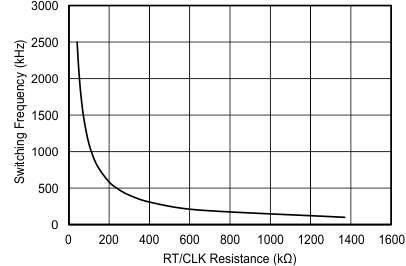

Figure 3. Buck-Regulator Switching Frequency vs RT_CLK Resistance
TPS65320-Q1 C008_SLVSAY9.gif
V(VIN_LDO) = 5 V V(LDO_OUT) = 3.3 V

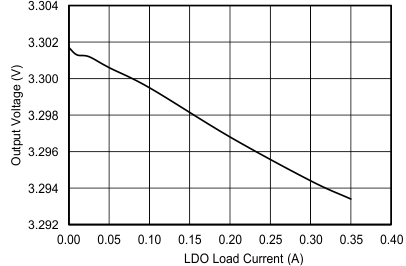

Figure 5. LDO-Regulator Load Regulation
TPS65320-Q1 C010_SLVSAY9.gif
I(LDO_OUT) = 100 mA V(VIN_LDO) = 12 V

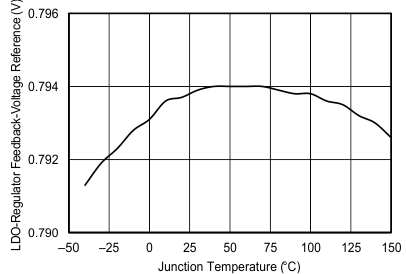

Figure 7. LDO-Regulator Feedback-Voltage Reference (V(FB2)) vs Junction Temperature
TPS65320-Q1 C007_SLVSAY9.gif
No Load V(VIN) = 12 V

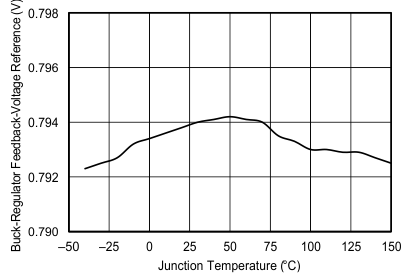

Figure 4. Buck-Regulator Feedback-Voltage Reference (V(FB1)) vs Junction Temperature
TPS65320-Q1 C009_SLVSAY9.gif
Figure 6. LDO-Regulator Dropout Voltage vs Load Current
