8.2.3 Application Curves

TPS565208 D015_SLVSE72.gif
VIN = 5 V VOUT1 = 1.05 V
Figure 15. TPS565208 Load Regulation, VIN = 5 V
TPS565208 D017_SLVSE72.gif
IOUT = 1 A
Figure 17. TPS565208 Line Regulation

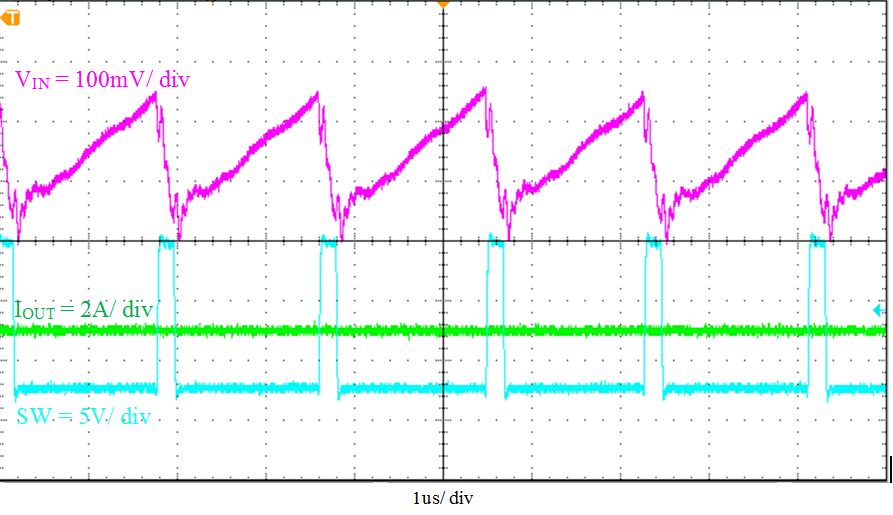

TPS565208 Figure 19. Input Voltage Ripple.png
1 µs/div
Figure 19. TPS565208 Input Voltage Ripple
TPS565208 Output_Voltage_Ripple_IOUT_2p5A_21_SLVSE71.gif
1 µs/div
Figure 21. TPS565208 Output Voltage Ripple, IOUT 2.5 A
TPS565208 Load_Transient_Response_0p1A_to_2p5A_23_SLVSE72.gif
100 µs/div
Figure 23. TPS565208 Transient Response 0.1 to 2.5 A
TPS565208 Load_Transient_Response_2p5A_to_5A_25_SLVSE72.gif
100 µs/div
Figure 25. TPS565208 Transient Response, 2.5 to 5 A
TPS565208 Start-up_Relative_to_EN_27_SLVSE71.gif
400 µs/div
Figure 27. TPS565208 Startup Relative to EN
TPS565208 Shut-Down_Relative_to_EN_29_SLVSE71.gif
400 µs/div
Figure 29. TPS565208 Shutdown Relative to EN
TPS565208 D016_SLVSE72.gif
VIN = 12 V VOUT1 = 1.05 V
Figure 16. TPS565208 Load Regulation, VIN = 12 V
TPS565208 D009_SLVSE72.gif
Figure 18. TPS565208 Efficiency, Vout = 1.05 V

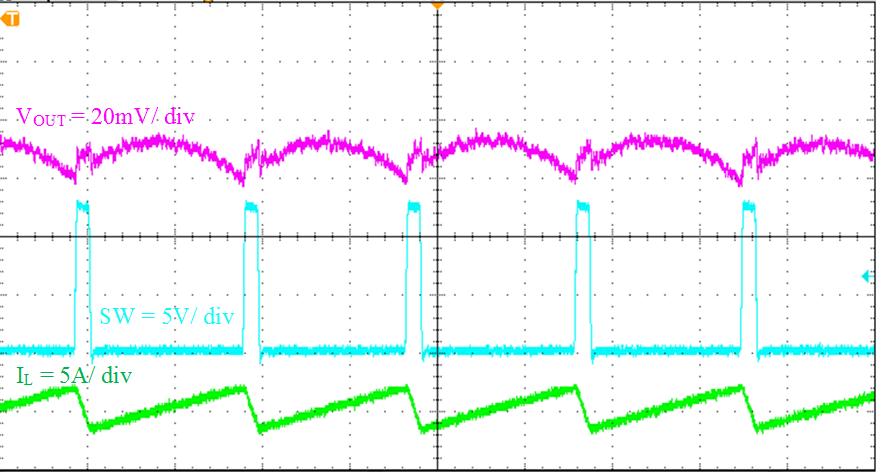

TPS565208 Figure 20. Output Voltage Ripple, no load.png
1 µs/div
Figure 20. TPS565208 Output Voltage Ripple, No Load
TPS565208 Output_Voltage_Ripple_IOUT_5A_22_SLVSE71.gif
1 µs/div
Figure 22. TPS565208 Output Voltage Ripple, IOUT 5 A
TPS565208 Load_Transient_Response_1p25A_to_3p75A_24_SLVSE71.gif
100 µs/div
Figure 24. TPS565208 Transient Response, 1.25 to 3.75 A
TPS565208 Start-up_Relative_to_VIN_26_SLVSE71.gif
2 ms/div
Figure 26. TPS565208 Startup Relative to VIN
TPS565208 Shut-Down_Relative_to_VIN_28_SLVSE71.gif
20 ms/div
Figure 28. TPS565208 Shutdown Relative to VIN
