6.6 Typical Characteristics

VIN = 12 V (unless otherwise noted)

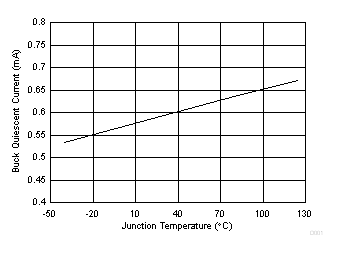

TPS565208 D001_SLVSE72.gif
Figure 1. TPS565208 Supply Current vs Junction Temperature
TPS565208 D003_SLVSE72.gif
Figure 3. EN Pin UVLO Low Voltage vs Junction Temperature

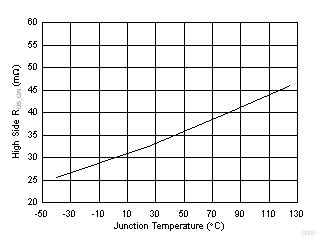

TPS565208 D005_SLVSE72.gif
Figure 5. High-Side Rds-On vs Junction Temperature
TPS565208 D054.gif
IOUT = 1 A
Figure 7. TPS565208 Switching Frequency vs Input Voltage
TPS565208 D009_SLVSE72.gif
Figure 9. TPS565208 VOUT = 1.05 V Efficiency, L = 2.2 µH

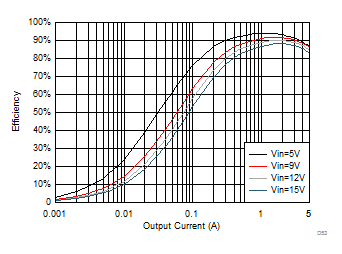

TPS565208 D053.gif
Figure 11. TPS565208 VOUT = 1.8 V Efficiency, L = 2.2 µH

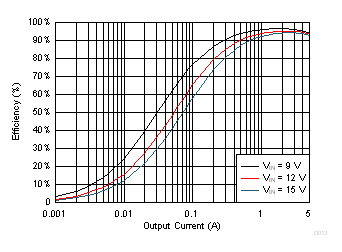

TPS565208 D013_SLVSE72.gif
Figure 13. TPS565208 VOUT = 5 V Efficiency, L = 3.3 µH
TPS565208 D002_SLVSE72.gif
Figure 2. VFB Voltage vs Junction Temperature

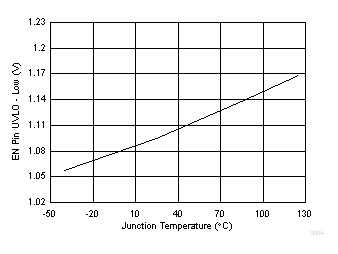

TPS565208 D004_SLVSE72.gif
Figure 4. TPS565208 EN Pin UVLO High Voltage vs Junction Temperature
TPS565208 D006_SLVSE72.gif
Figure 6. Low-Side Rds-On vs Junction Temperature
TPS565208 D052.gif
VIN = 12 V
Figure 8. TPS565208 Switching Frequency vs Output Current
TPS565208 D010_SLVSE72.gif
Figure 10. TPS565208 VOUT = 1.5 V Efficiency, L = 2.2 µH

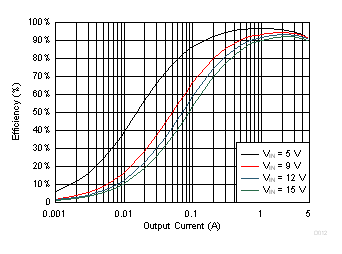

TPS565208 D012_SLVSE72.gif
Figure 12. TPS565208 VOUT = 3.3 V Efficiency, L = 2.2 µH
