Typical Characteristics

all typical characteristics curves are taken at 25°C with 1.6 V ≤ VDD ≤ 6.5 V (unless other wise noted)

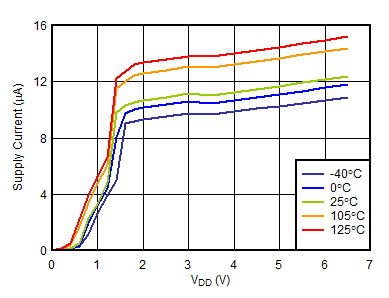

GUID-E0EC30C6-41DC-4A28-B42C-B071F91D7456-low.gifFigure 6-3 Supply Current vs VDD

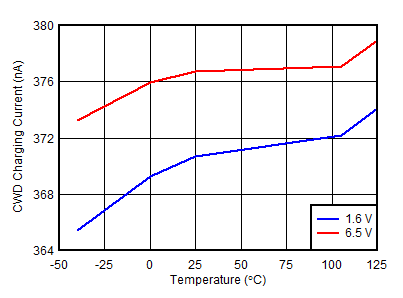

GUID-EFA0A449-83D8-4691-A2B3-CAC6E076F356-low.gifFigure 6-5 CWD Charging Current vs Temperature
TPS3851G18-Q1, VITN = 1.728 V
Figure 6-7 VITN Accuracy vs Temperature
TPS3851G50-Q1, VITN = 4.8 V
Figure 6-9 VITN Accuracy vs Temperature
Includes G and H versions; 1.8-V, 2.5-V, 3.0-V, 3.3-V, and 5-V thresholds; total units = 36,627
Figure 6-11 VITN Accuracy Histogram
VDD = 1.6 V

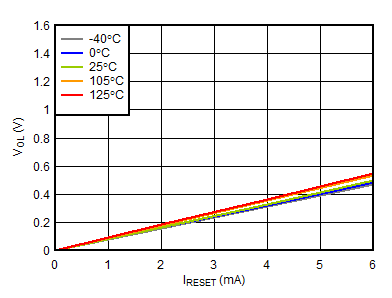

Figure 6-13 Low-Level RESET Voltage vs RESET Current
TPS3851G18-Q1 entering undervoltage
Figure 6-15 Propagation Delay vs Overdrive
TPS3851G18-Q1 exiting undervoltage

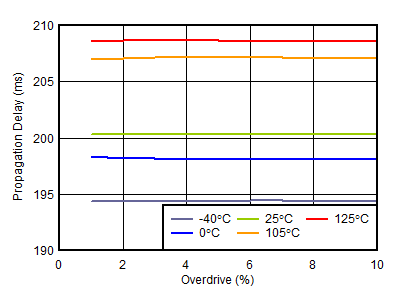

Figure 6-17 Propagation Delay (tRST) vs Overdrive
VITN = 1.728 V
Figure 6-19 High-to-Low Glitch Immunity vs Temperature
VDD = 1.6 V
Figure 6-4 MR Threshold vs Temperature
TPS3851G18-Q1, VITN = 1.728 V

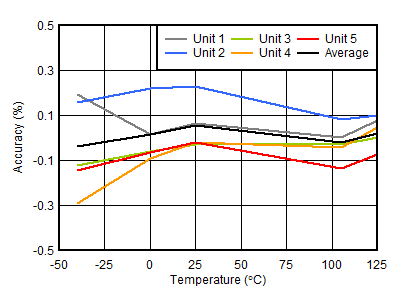

Figure 6-6 VITN + VHYST Accuracy vs Temperature
TPS3851G50-Q1, VITN = 4.8 V
Figure 6-8 VITN + VHYST Accuracy vs Temperature
Includes G and H versions; 1.8-V, 2.5-V, 3.0-V, 3.3-V, and 5-V thresholds; total units = 36,627
Figure 6-10 VITN + VHYST Accuracy Histogram
Includes G and H versions; 1.8-V, 2.5-V, 3.0-V, 3.3-V, and 5-V thresholds; total units = 36,627
Figure 6-12 Hysteresis Histogram
VDD = 6.5 V
Figure 6-14 Low-Level RESET Voltage vs RESET Current
TPS3851G50-Q1 entering undervoltage
Figure 6-16 Propagation Delay vs Overdrive
TPS3851G50-Q1 exiting undervoltage
Figure 6-18 Propagation Delay (tRST) vs Overdrive
VITN = 4.8 V
Figure 6-20 High-to-Low Glitch Immunity vs Temperature
