Pin Configuration and Functions

TPS24750, TPS24751 RUV Package
36-Pin VQFN
Top View

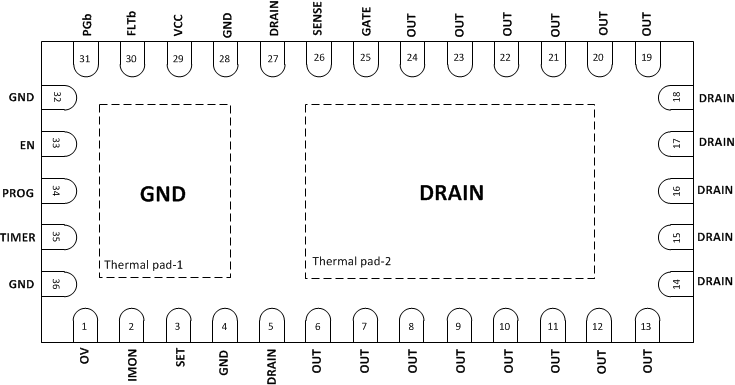

TPS24750 TPS24751 po_slvsc87.gif

Pin Functions

PIN TYPE DESCRIPTION
NAME NO.
DRAIN 5, 14-18, 27 I The drain of the internal pass MOSFET. Connect to a terminal of current sense resistor in the power path
EN 33 I Active high enable input. Logic input. Connects to resistor divider
FLTb 30 I Active-low, open-drain output indicates overload fault timer has turned internal FET off
GATE 25 I/O Gate driver output for the internal MOSFET
GND 4, 28, 32, 36 GND Ground
IMON 2 O Load current analog and current limit program point. Connect RIMON to ground
OUT 6-13, 19-24 I/O Internally connect to the source of internal pass MOSFET. Connect to output capacitors and load
OV 1 I Overvoltage comparator input. Connects to resistor divider. GATE is pulled low when OV exceeds the threshold
Pad-1 Tied to GND
Pad-2 Tied to DRAIN
PGb 31 O Active-low, open-drain power good indicator. Status is determined by the voltage across the MOSFET
PROG 34 I Power-limiting programming pin. A resistor from this pin to GND sets the maximum power dissipation for the internal pass MOSFET
SENSE 26 I Current sensing input for resistor shunt from VCC to SENSE. Connect to a terminal of current sense resistor
SET 3 I Current limit programming set pin. A resistor is connected from this pin to VCC
TIMER 35 I/O A capacitor connected from this pin to GND provides a fault timing function
VCC 29 I Input voltage sense and power supply
