Typical Characteristics

TPS24750 TPS24751 Figure_06_LVSAL1.gif
EN = High
Figure 1. Supply Current vs Input Voltage at Normal Operation
TPS24750 TPS24751 Figure_08_LVSAL1.gif

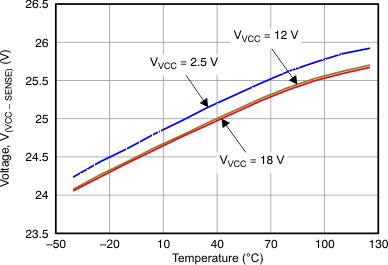

Figure 3. Voltage Across RSENSE in Inrush Current Limiting vs Temperature

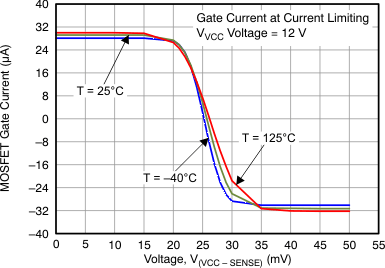

TPS24750 TPS24751 Figure_10_LVSAL1.gif
Figure 5. Internal FET Gate Current vs Voltage Across RSENSE During Inrush Power Limiting
TPS24750 TPS24751 Figure_12_LVSAL1.gif
VVCC = VGATE = 3.3 V

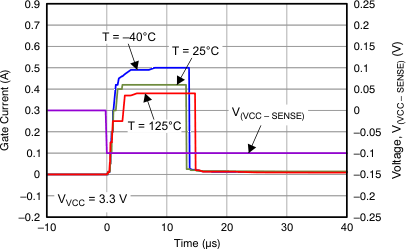

Figure 7. Gate Current During Fast Trip
TPS24750 TPS24751 Figure_14_LVSAL1.gif

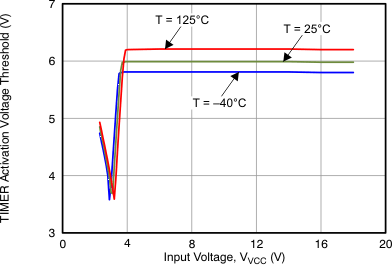

Figure 9. TIMER Activation Voltage Threshold vs Input Voltage at Various Temperatures
TPS24750 TPS24751 Figure_04_slvsc87.gif
Figure 11. EN Threshold Voltage vs Temperature
TPS24750 TPS24751 Figure_18_LVSAL1.gif
Figure 13. Threshold Voltage of VDS vs Temperature, PGb Rising and Falling

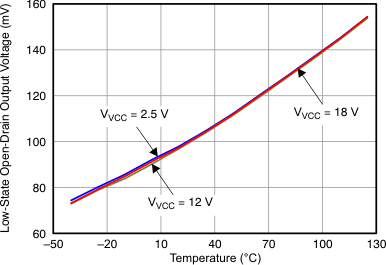

TPS24750 TPS24751 Figure_20_LVSAL1.gif
Figure 15. PGb Open-Drain Output Voltage in Low State
TPS24750 TPS24751 Figure_23_LVSAL1.gif
Figure 17. Supply Current vs Input Voltage at Various Temperatures when EN Pulled Low

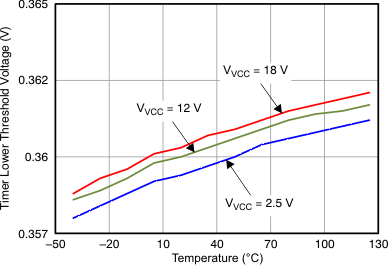

TPS24750 TPS24751 Figure_25_LVSAL1.gif
Figure 19. Timer Lower Threshold Voltage vs Temperature at Various Input Voltages

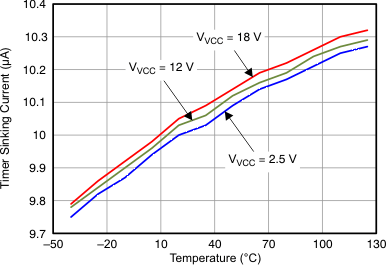

TPS24750 TPS24751 Figure_27_LVSAL1.gif
Figure 21. Timer Sinking Current vs Temperature at Various Input Voltages

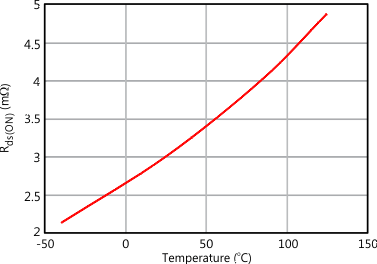

TPS24750 TPS24751 Figure_01_LVSC87.gif
Figure 23. RDS(ON) vs Temperature
TPS24750 TPS24751 gate_charge_graph_LVSC87.gif
Figure 25. Gate Charge – Internal MOSFET
TPS24750 TPS24751 G010_slvsc87.gif
Figure 27. TPS2475x Maximum Safe Operating Area (SOA)

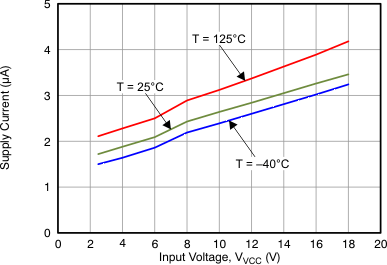

TPS24750 TPS24751 Figure_07_LVSAL1.gif
EN = 0 V
Figure 2. Supply Current vs Input Voltage at Shutdown
TPS24750 TPS24751 Figure_09_LVSAL1.gif

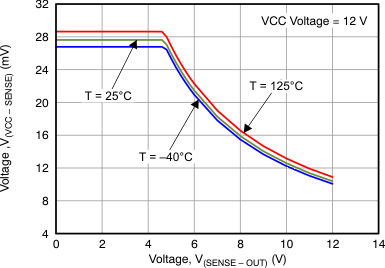

Figure 4. Voltage Across RSENSE in Inrush Power Limiting vs VDS of Internal FET
TPS24750 TPS24751 Figure_11_LVSAL1.gif
VVCC = VGATE = 12 V
Figure 6. Gate Current During Fast Trip
TPS24750 TPS24751 Figure_13_LVSAL1.gif

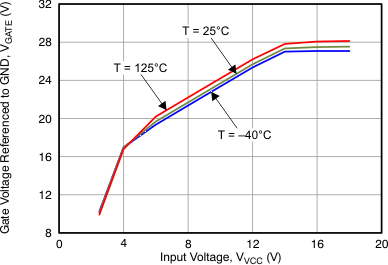

Figure 8. Gate Voltage With Zero Gate Current vs Input Voltage
TPS24750 TPS24751 Figure_15_LVSAL1.gif

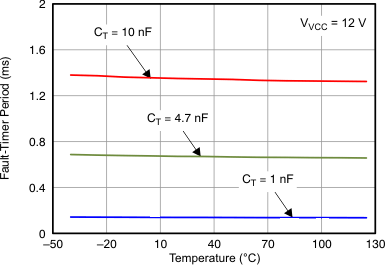

Figure 10. Fault-Timer vs Temperature with Various TIMER Capacitors
TPS24750 TPS24751 Figure_17_LVSAL1.gif

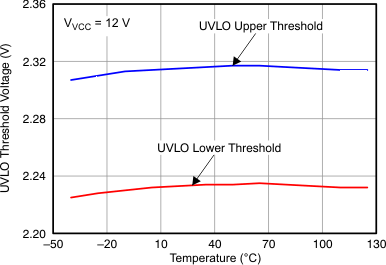

Figure 12. UVLO Threshold Voltage vs Temperature

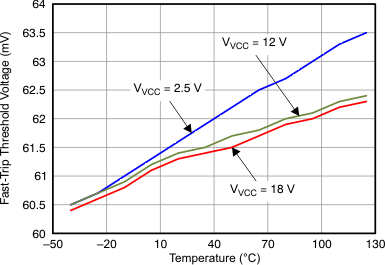

TPS24750 TPS24751 Figure_19_LVSAL1.gif
Figure 14. Fast-Trip Threshold Voltage vs Temperature
TPS24750 TPS24751 Figure_21_LVSAL1.gif
Figure 16. FLTb Open-Drain Output Voltage in Low State
TPS24750 TPS24751 Figure_24_LVSAL1.gif

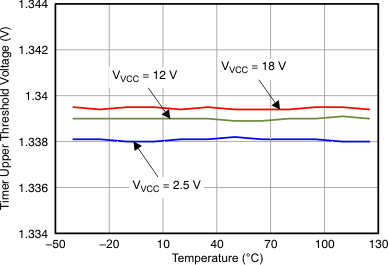

Figure 18. Timer Upper Threshold Voltage vs Temperature at Various Input Voltages
TPS24750 TPS24751 Figure_26_LVSAL1.gif

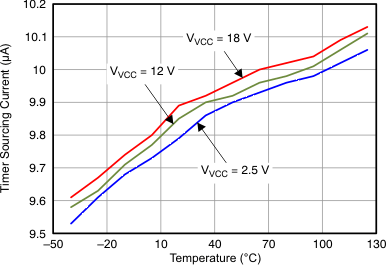

Figure 20. Timer Sourcing Current vs Temperature at Various Input Voltages
TPS24750 TPS24751 Figure_05_slvsc87.gif
Figure 22. OV Threshold Voltage vs Temperature

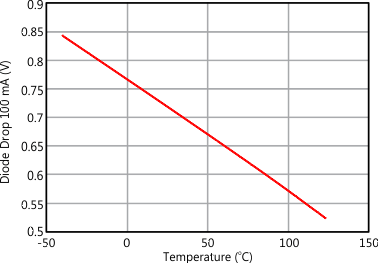

TPS24750 TPS24751 Figure_02_LVSC87.gif
Figure 24. Diode Drop vs Temperature
TPS24750 TPS24751 Figure_03_LVSC87.gif

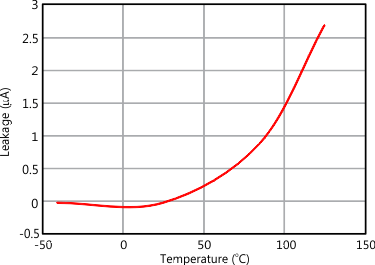

Figure 26. Leakage Current vs Temperature
