7.3.6.7.1.7 Sampling Rate: 176.4 kHz to 192 kHz

Figure 7-31 and Figure 7-32 respectively show the magnitude response and the pass-band ripple for a decimation filter with a sampling rate of 176.4 kHz to 192 kHz. Table 7-25 lists the specifications for a decimation filter with a 176.4-kHz to 192-kHz sampling rate.

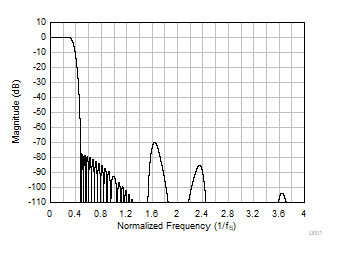

GUID-80353EAC-1A62-4D9F-AAE0-2C1B8759007F-low.gifFigure 7-31 Linear Phase Decimation Filter Magnitude Response
GUID-A81214BF-5CFE-4348-92F3-8E6A4A8ECDE2-low.gifFigure 7-32 Linear Phase Decimation Filter Pass-Band Ripple
Table 7-25 Linear Phase Decimation Filter Specifications
PARAMETERTEST CONDITIONSMINTYPMAXUNIT
Pass-band rippleFrequency range is 0 to 0.3 × fS–0.050.05dB
Stop-band attenuationFrequency range is 0.473 × fS to 4 × fS70.0dB
Frequency range is 4 × fS onwards111.0
Group delay or latencyFrequency range is 0 to 0.3 × fS11.91/fS
