7.3.6.7.3.5 Sampling Rate: 88.2 kHz to 96 kHz

Figure 7-57 shows the magnitude response and Figure 7-58 shows the pass-band ripple and phase deviation for a decimation filter with a sampling rate of 88.2 kHz to 96 kHz. Table 7-38 lists the specifications for a decimation filter with an 88.2-kHz to 96-kHz sampling rate.

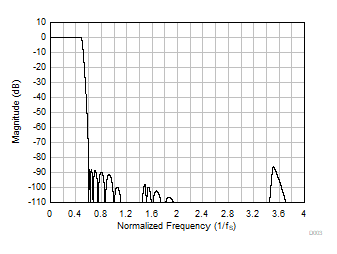

GUID-3AB57B36-2663-4AB2-B2A3-D7621E0FD1C9-low.gifFigure 7-57 Ultra-Low-Latency Decimation Filter Magnitude Response

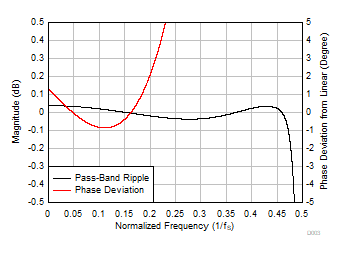

GUID-A7F482FB-FE2C-4187-9F3E-6C5DBD6C1FDC-low.gifFigure 7-58 Ultra-Low-Latency Decimation Filter Pass-Band Ripple and Phase Deviation
Table 7-38 Ultra-Low-Latency Decimation Filter Specifications
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
Pass-band ripple Frequency range is 0 to 0.466 × fS –0.04 0.04 dB
Stop-band attenuation Frequency range is 0.6 × fS onwards 86.3 dB
Group delay or latency Frequency range is 0 to 0.1625 × fS 3.7 1/fS
Group delay deviation Frequency range is 0 to 0.1625 × fS –0.091 0.091 1/fS
Phase deviation Frequency range is 0 to 0.1625 × fS –0.86 1.30 Degrees
