7.3.5 Enable and Disable Sequences

The LP875701-Q1 device supports start-up and shutdown sequencing with programmable delay for the regulator output using one EN1, EN2, or EN3 control signal. The regulator is selected for delayed control with:

  • EN_BUCK0 = 1 (in BUCK0_CTRL1 register)
  • EN_PIN_CTRL0 = 1 (in BUCK0_CTRL1 register)
  • The ENABLE pin for control is selected with BUCK0_EN_PIN_SELECT[1:0] (in BUCK0_CTRL1 register)
  • The delay from rising edge of ENx signal to the regulator enable is set by BUCK0_STARTUP_DELAY[3:0] bits (in BUCK0_DELAY register) and
  • The delay from falling edge of ENx signal to the regulator disable is set by BUCK0_SHUTDOWN_DELAY[3:0] bits (in BUCK0_DELAY register)

There are four time steps available for start-up and shutdown sequences. The delay times are selected with DOUBLE_DELAY bit in CONFIG register and HALF_DELAY bit in PGOOD_CTRL2 register as shown in Table 7-4.

Table 7-4 Start-Up and Shutdown Delays
0_STARTUP_DELAY or
0_SHUTDOWN_DELAY		DOUBLE_DELAY = 0h
HALF_DELAY = 1h		DOUBLE_DELAY = 1h
HALF_DELAY = 1h		DOUBLE_DELAY = 0h
HALF_DELAY = 0h		DOUBLE_DELAY = 1h
HALF_DELAY = 0h
0h0 ms0 ms0 ms0 ms
1h0.32 ms0.64 ms1 ms2 ms
2h0.64 ms1.28 ms2 ms4 ms
3h0.96 ms1.92 ms3 ms6 ms
4h1.28 ms2.56 ms4 ms8 ms
5h1.6 ms3.2 ms5 ms10 ms
6h1.92 ms3.84 ms6 ms12 ms
7h2.24 ms4.48 ms7 ms14 ms
8h2.56 ms5.12 ms8 ms16 ms
9h2.88 ms5.76 ms9 ms18 ms
Ah3.2 ms6.4 ms10 ms20 ms
Bh3.52 ms7.04 ms11 ms22 ms
Ch3.84 ms7.68 ms12 ms24 ms
dh4.16 ms8.32 ms13 ms26 ms
Eh4.48 ms8.96 ms14 ms28 ms
Fh4.8 ms9.6 ms15 ms30 ms

An example of start-up and shutdown sequences is shown in Figure 7-6 and Figure 7-7. The start-up and shutdown delays for the master buck regulator BUCK0 regulator is 1 ms and 4 ms . The delay settings are used only for enable/disable control with EN1, EN2, EN3 signals

GUID-A670CF4E-B13B-42BA-A9A0-51DF791C6CFB-low.gifFigure 7-6 Typical Start-Up and Shutdown Sequencing

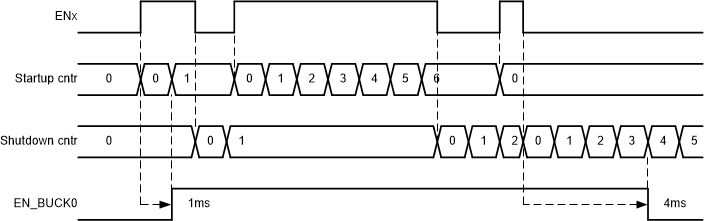

GUID-8B3975D4-A78B-4A9D-8469-4170B00542D8-low.gifFigure 7-7 Start-Up and Shutdown Sequencing With Short ENx Low and High Periods
