Typical Characteristics

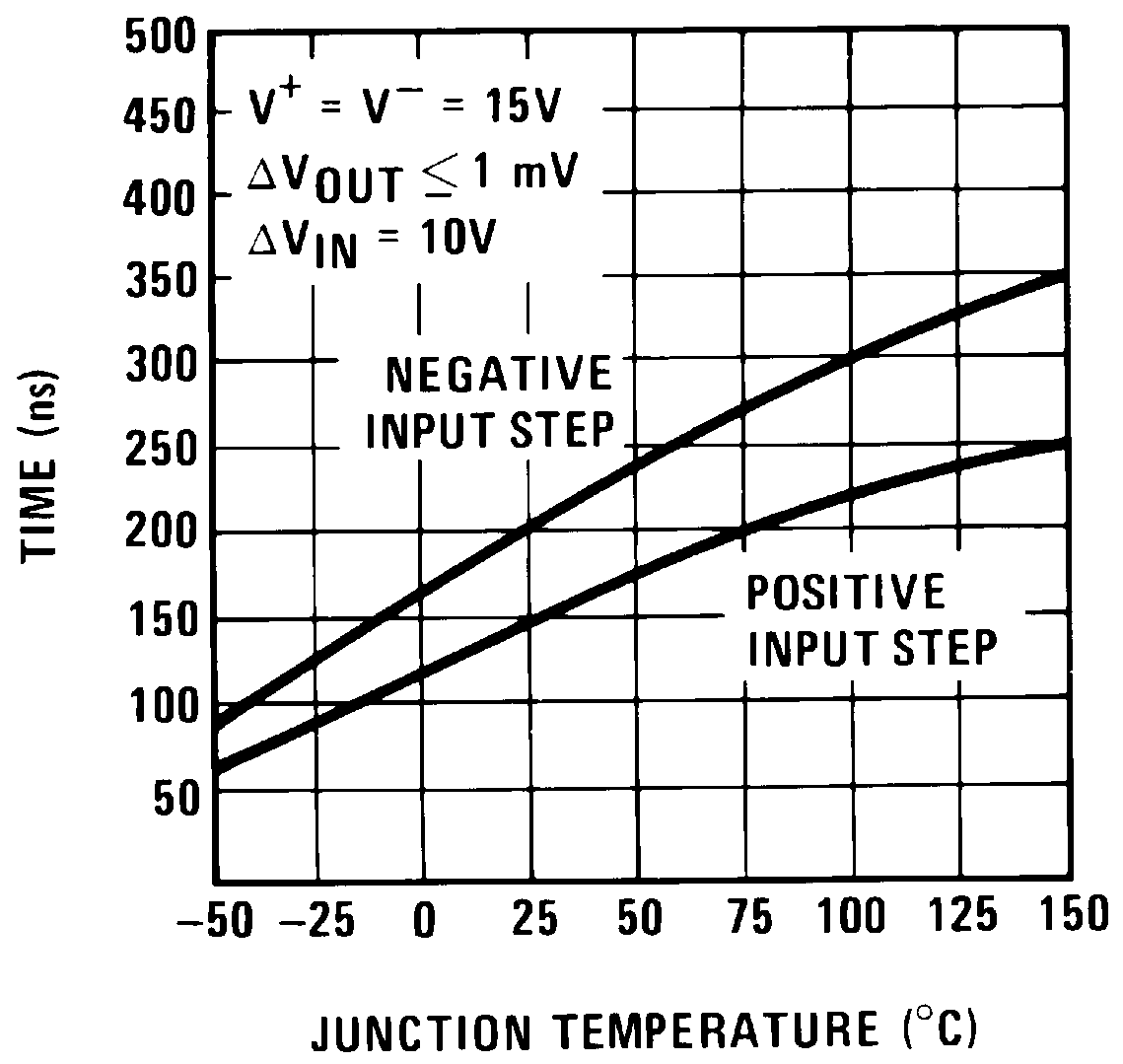

LF198-N LF298 LF398-N LF198A-N LF398A-N aperture_time_snosbi3.pngFigure 1. Aperture Time

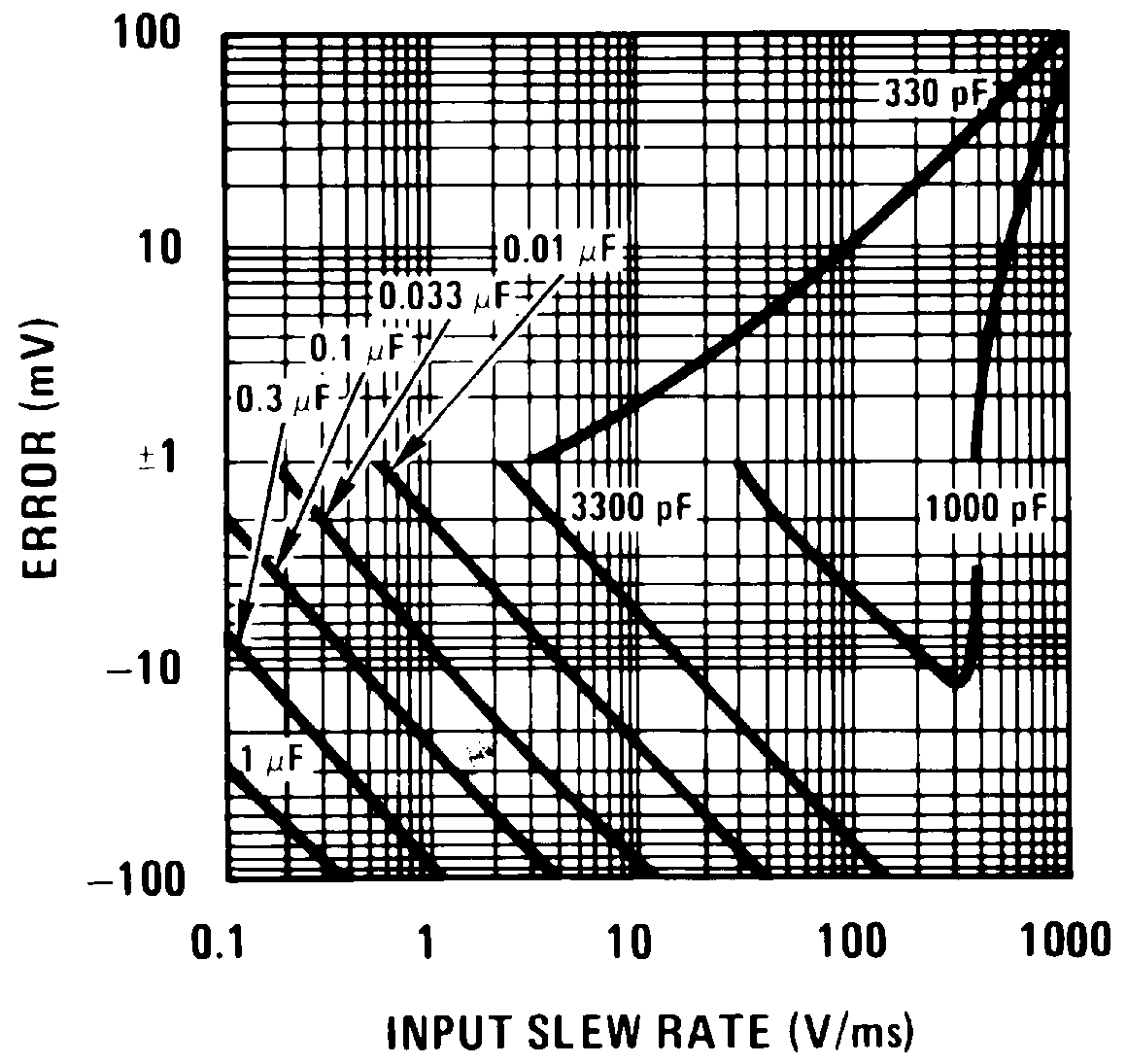

LF198-N LF298 LF398-N LF198A-N LF398A-N synamic_sampling_error_snosbi3_a.pngFigure 3. Dynamic Sampling Error

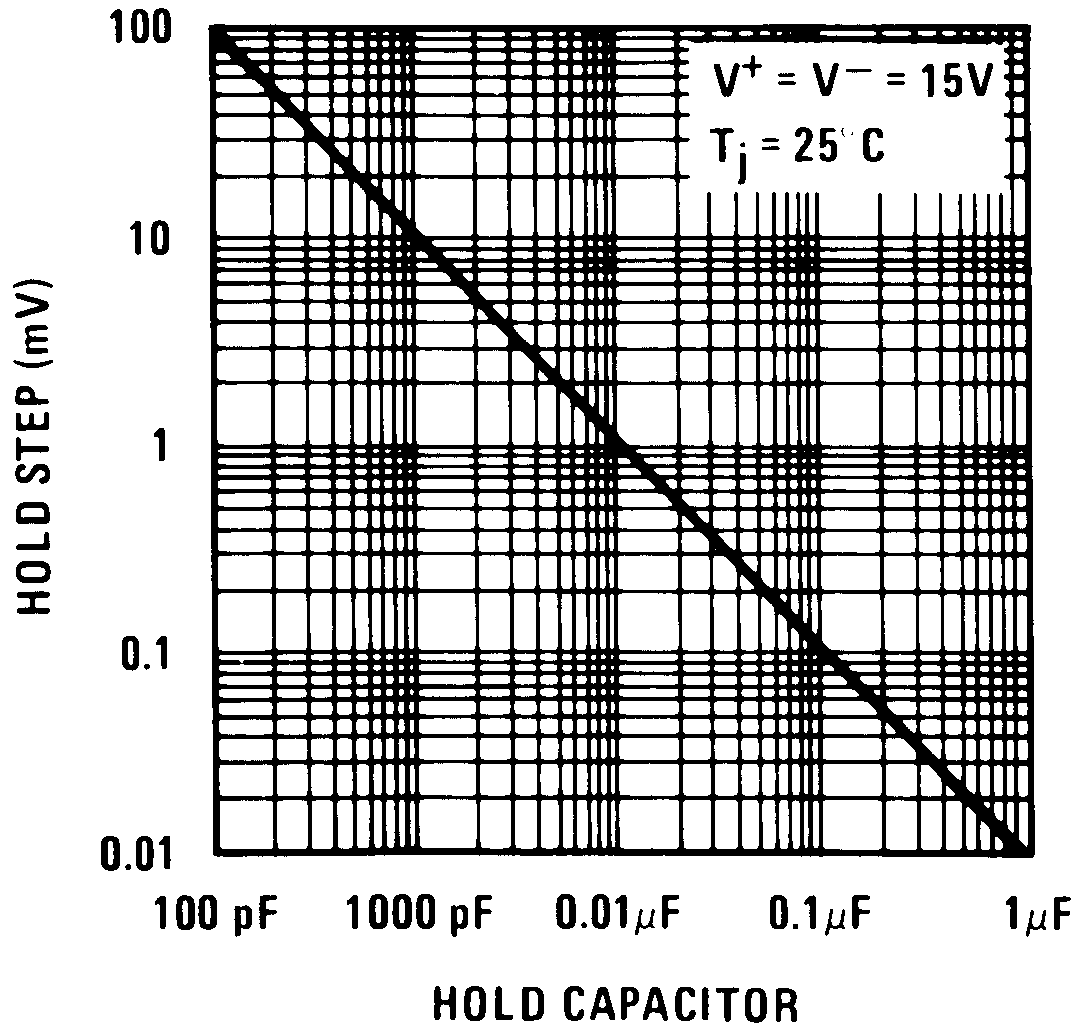

LF198-N LF298 LF398-N LF198A-N LF398A-N hold_step_snosbi3.pngFigure 5. Hold Step

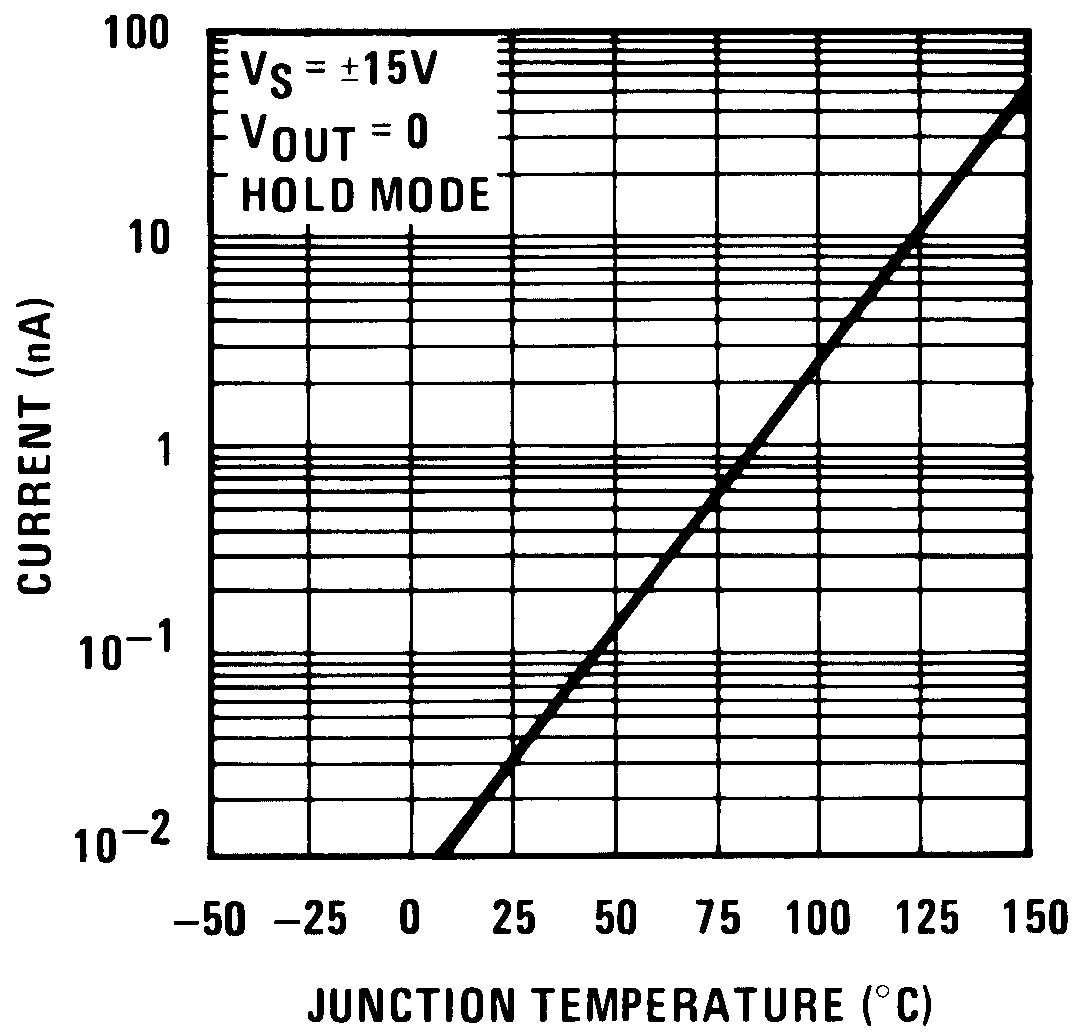

LF198-N LF298 LF398-N LF198A-N LF398A-N leakage_current_into_hold_capacitor_snosbi3.pngFigure 7. Leakage Current into Hold Capacitor

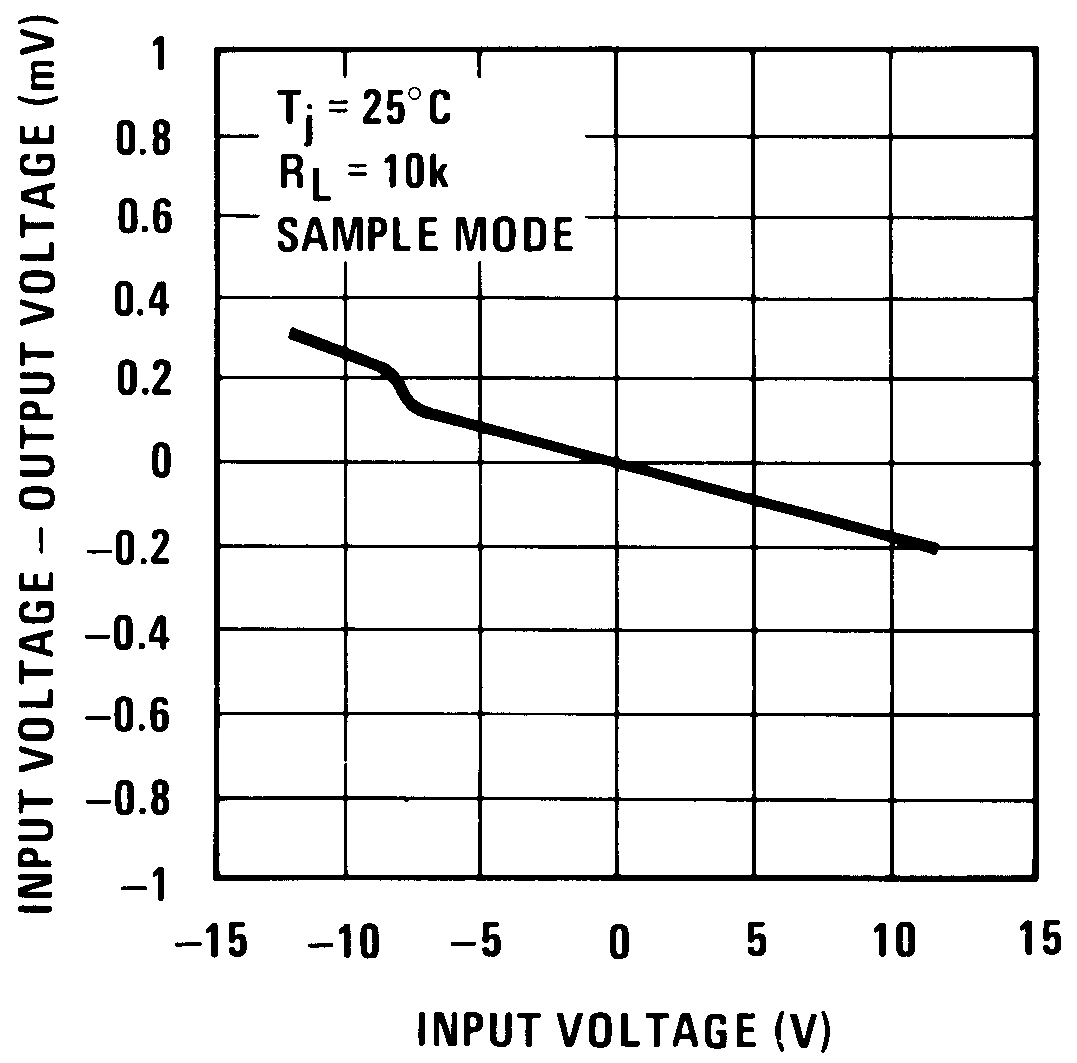

LF198-N LF298 LF398-N LF198A-N LF398A-N gain_error_snosbi3.pngFigure 9. Gain Error

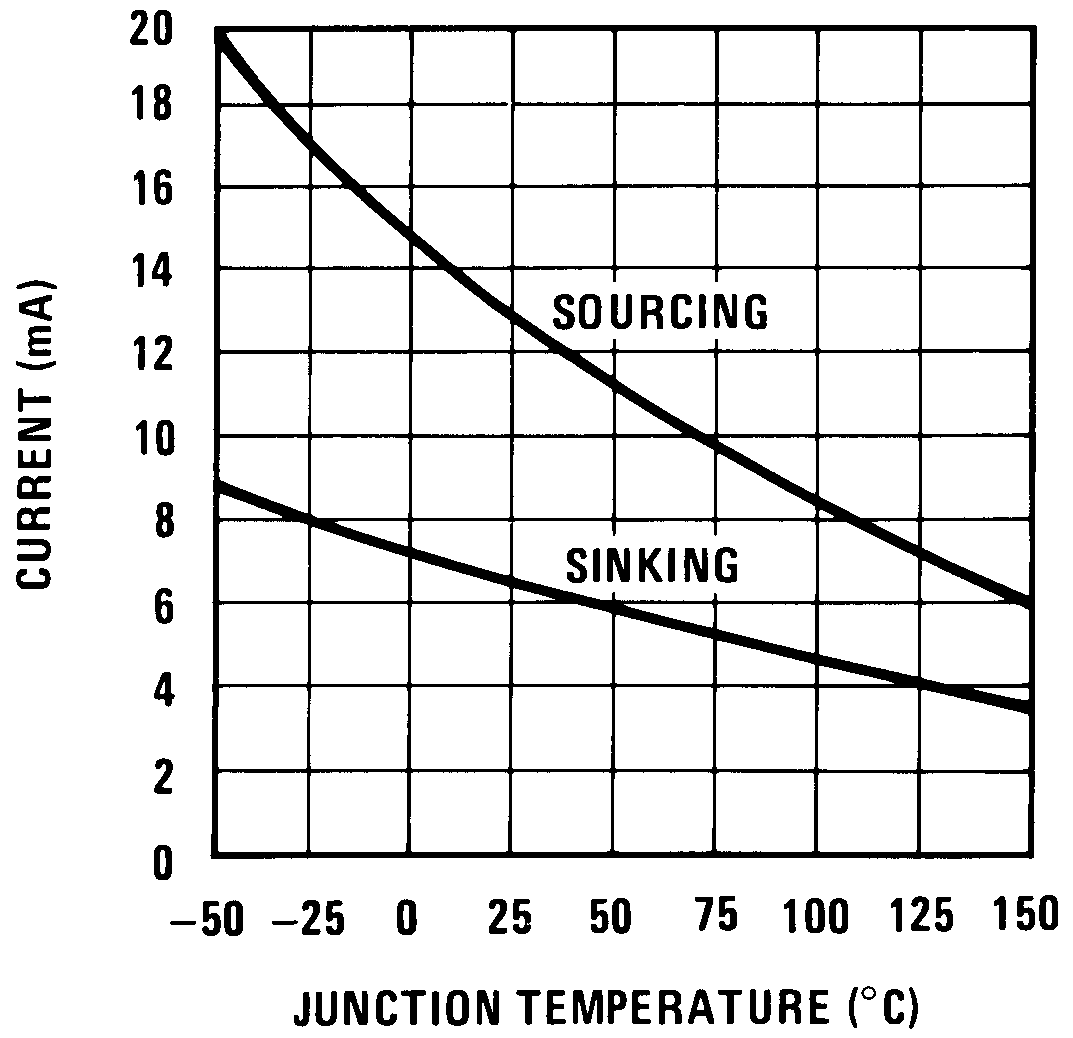

LF198-N LF298 LF398-N LF198A-N LF398A-N output_short_circuit_current_snosbi3.pngFigure 11. Output Short Circuit Current

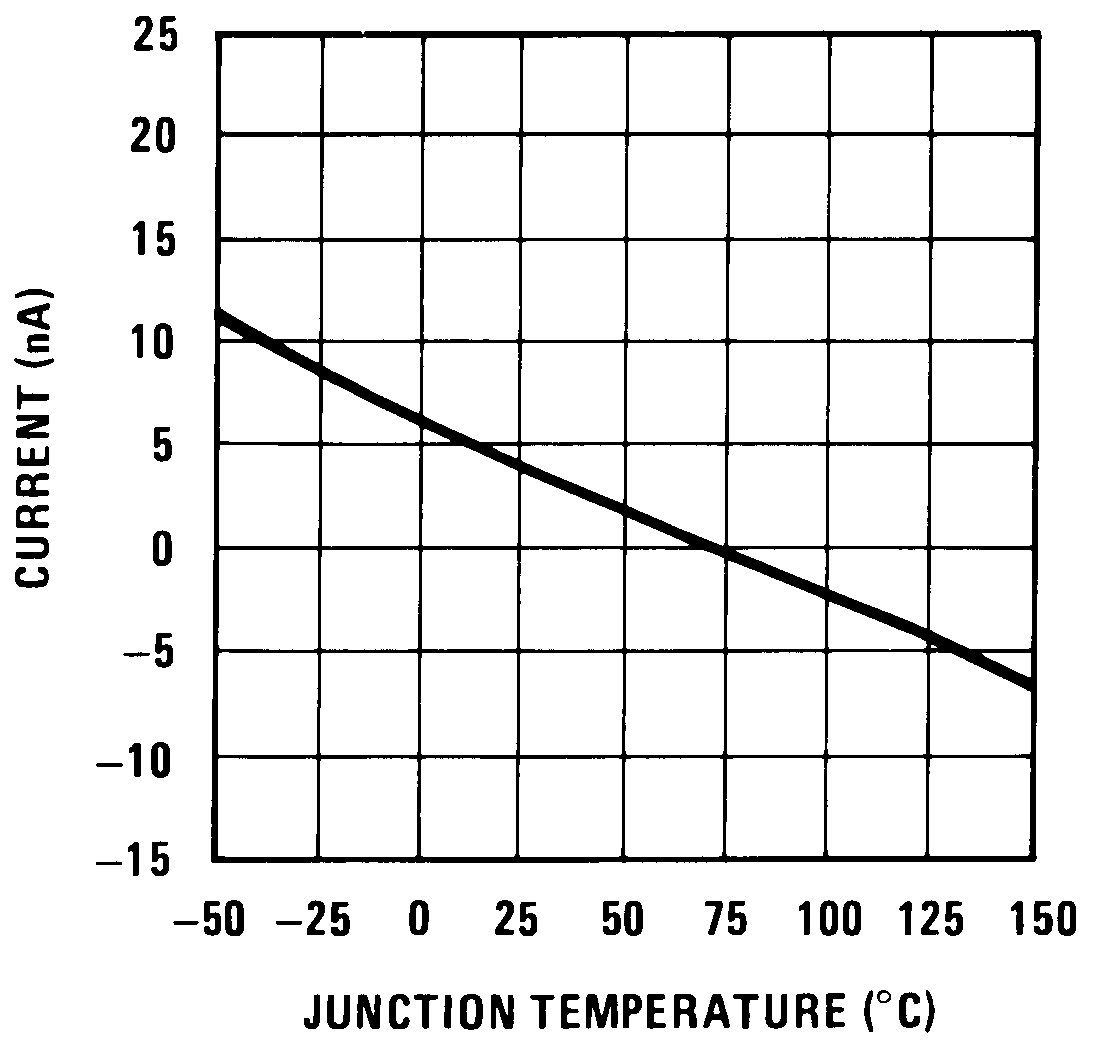

LF198-N LF298 LF398-N LF198A-N LF398A-N input_bias_current_snosbi3.pngFigure 13. Input Bias Current

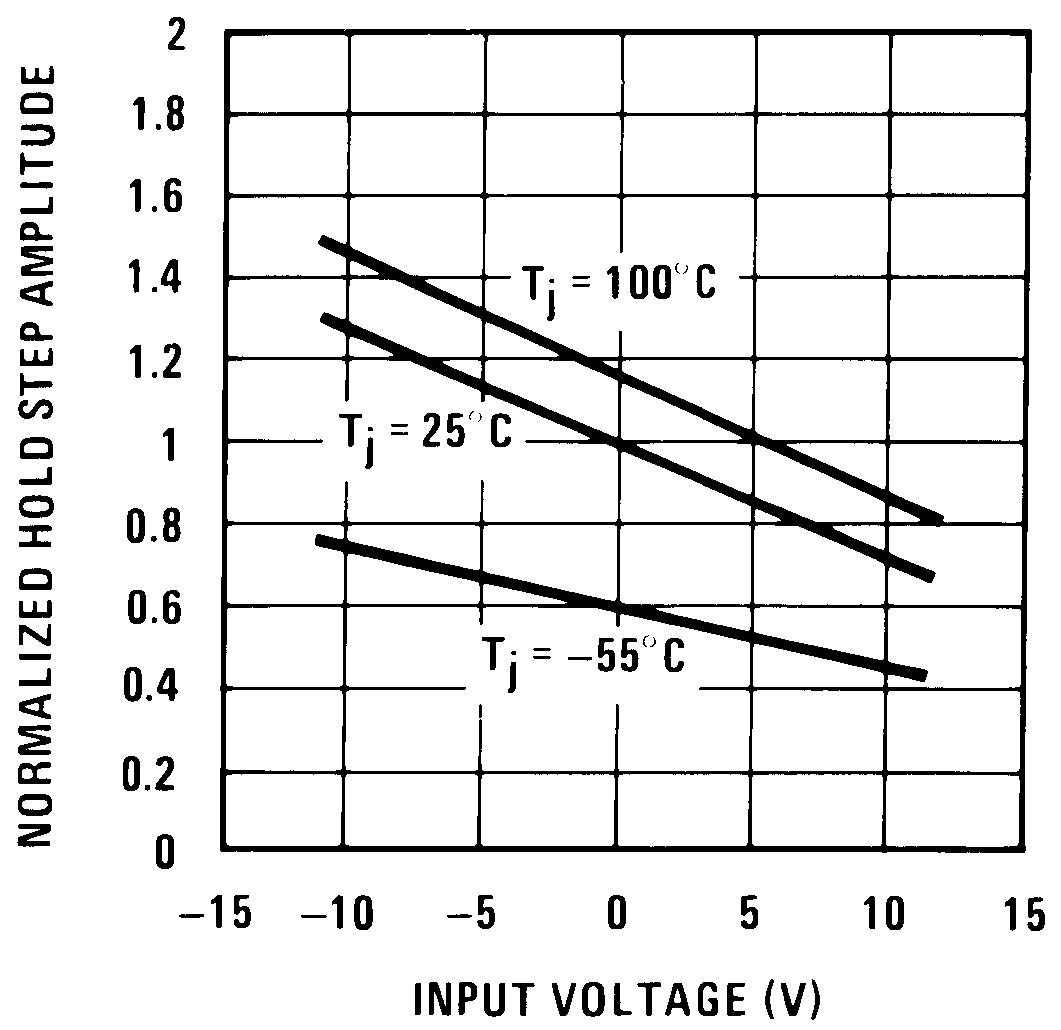

LF198-N LF298 LF398-N LF198A-N LF398A-N hold_step_vs_input_voltage_snosbi3.pngFigure 15. Hold Step vs Input Voltage

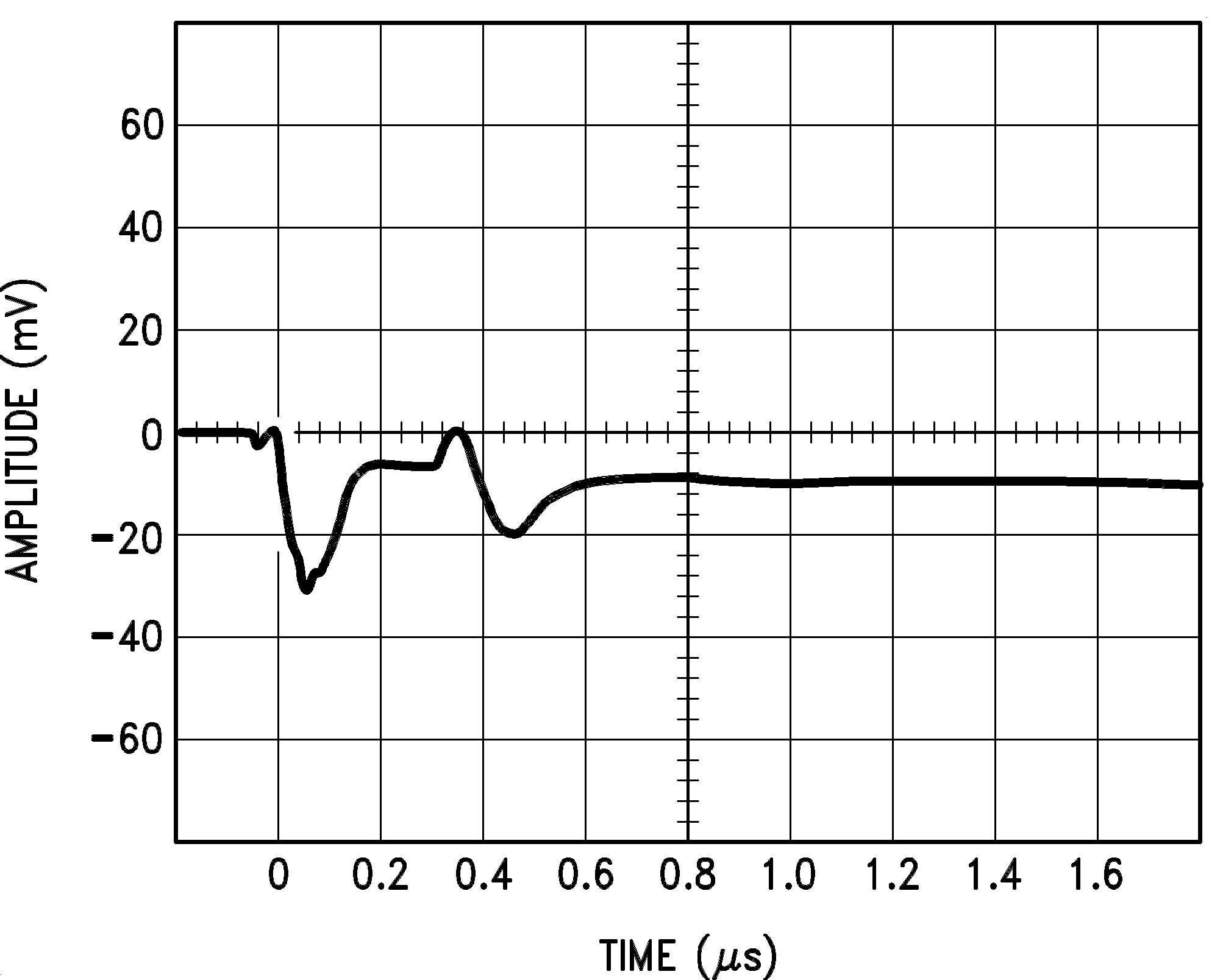

LF198-N LF298 LF398-N LF198A-N LF398A-N output_transient_at_start_of_hold_mode_snosbi3.pngFigure 17. Output Transient at Start of Hold Mode

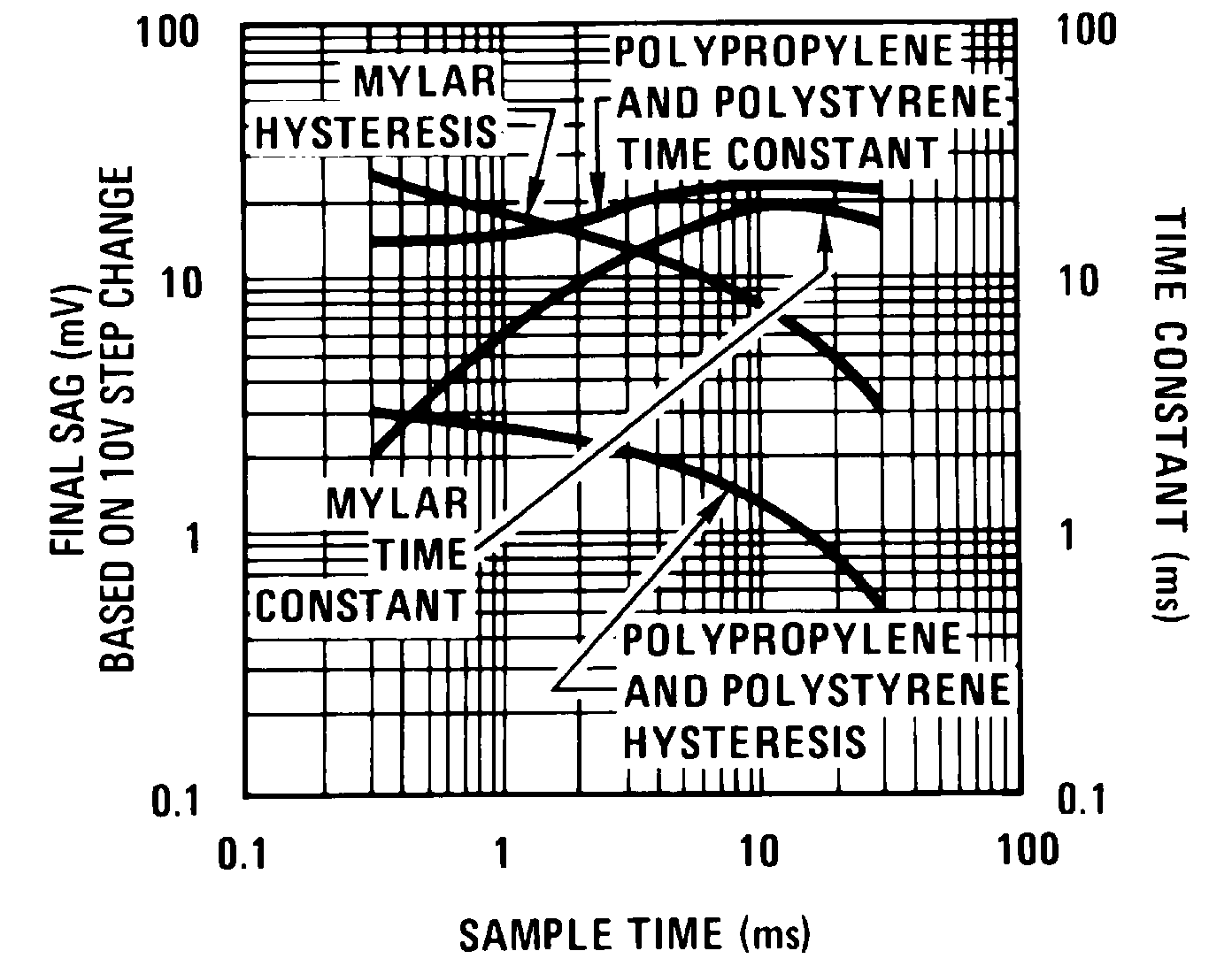

LF198-N LF298 LF398-N LF198A-N LF398A-N dielectric_absorption_error_hold_cap_snosbi3.pngFigure 2. Dielectric Absorption Error in Hold Capacitor

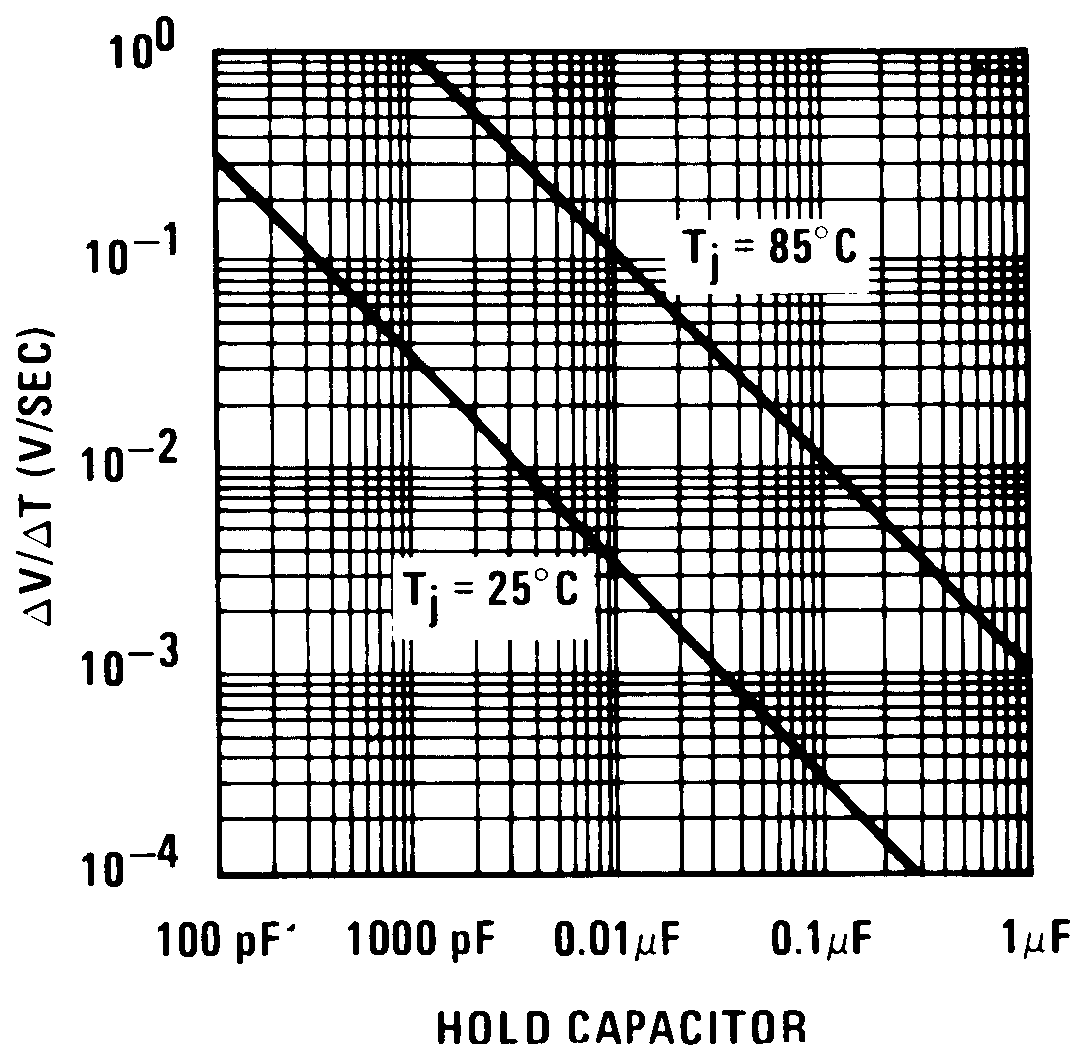

LF198-N LF298 LF398-N LF198A-N LF398A-N output_droop_rate_snosbi3_a.pngFigure 4. Output Droop Rate

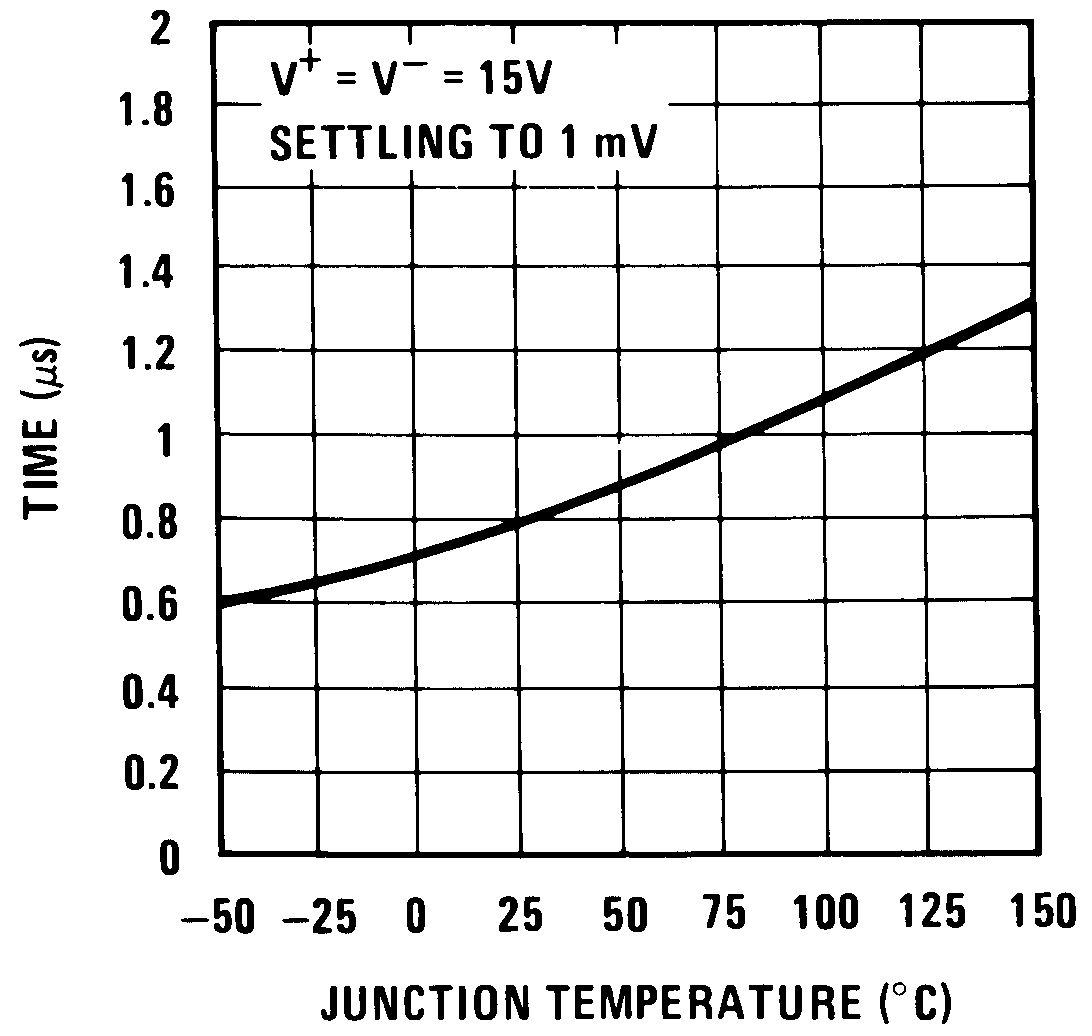

LF198-N LF298 LF398-N LF198A-N LF398A-N hold_settling_time_snosbi3.pngFigure 6. Hold Settling Time

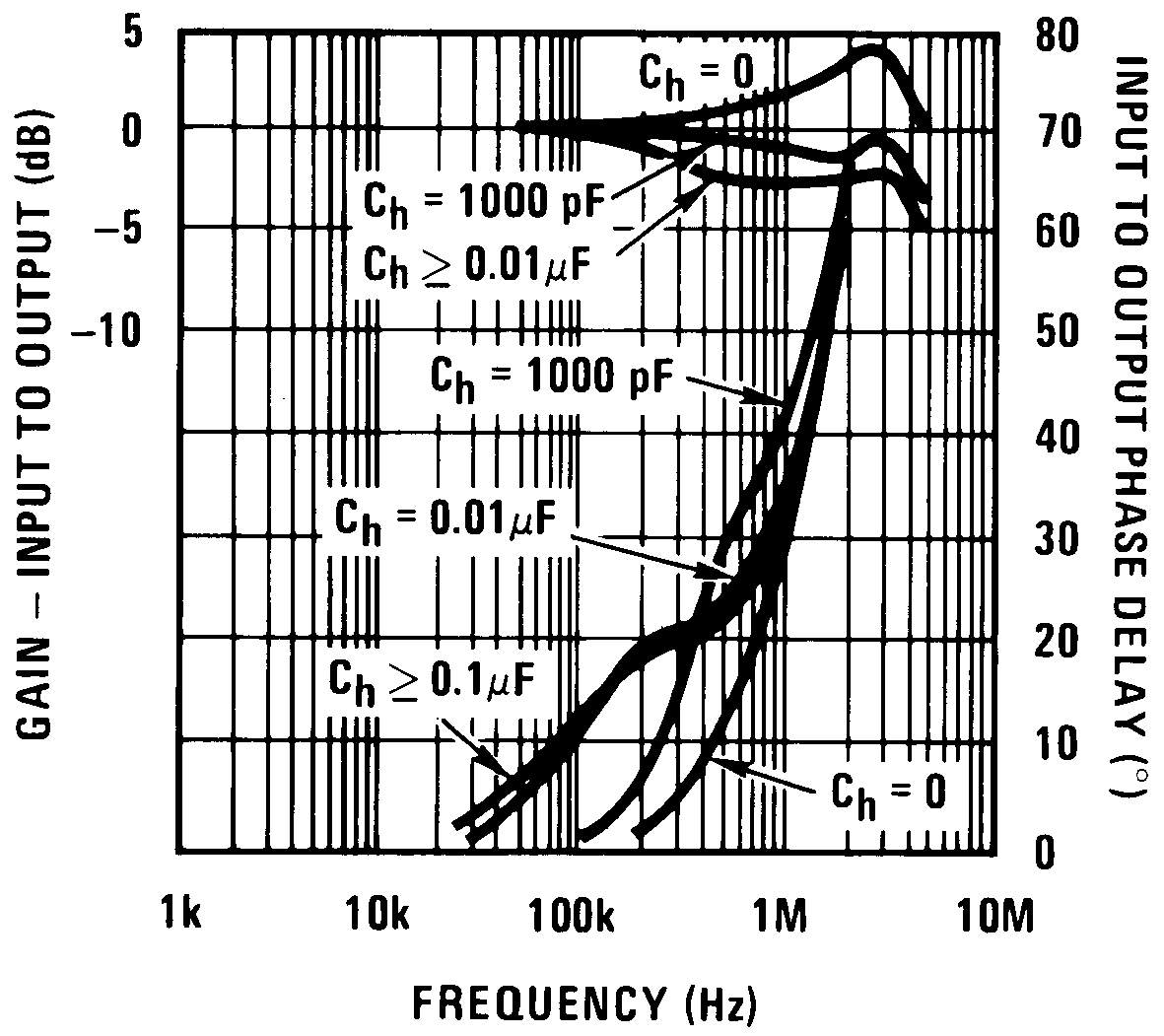

LF198-N LF298 LF398-N LF198A-N LF398A-N phase_gain_input_to_output_small_sig_snosbi3.pngFigure 8. Phase and Gain (Input to Output, Small Signal)

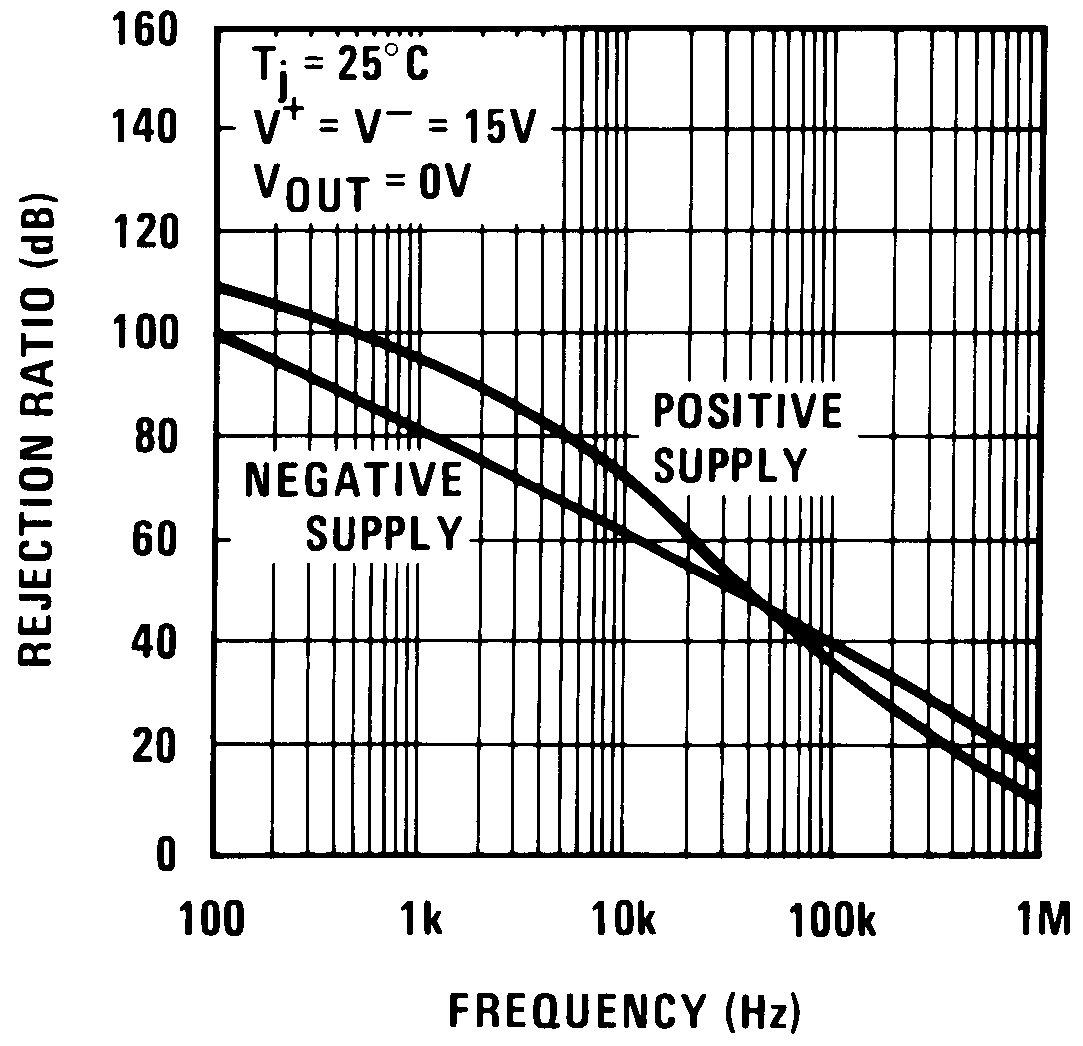

LF198-N LF298 LF398-N LF198A-N LF398A-N power_supply_rejection_snosbi3.pngFigure 10. Power Supply Rejection

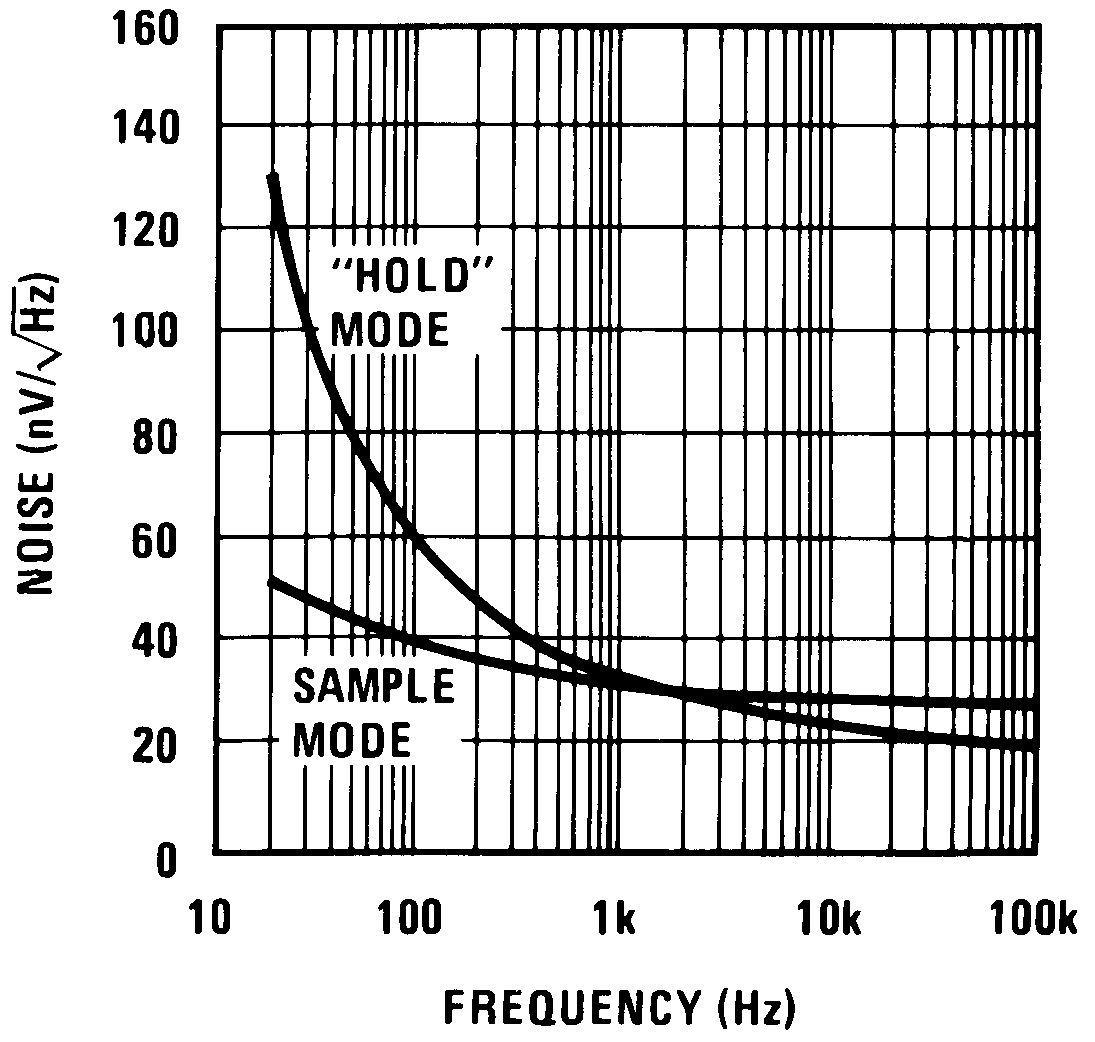

LF198-N LF298 LF398-N LF198A-N LF398A-N output_noise_snosbi3.pngFigure 12. Output Noise

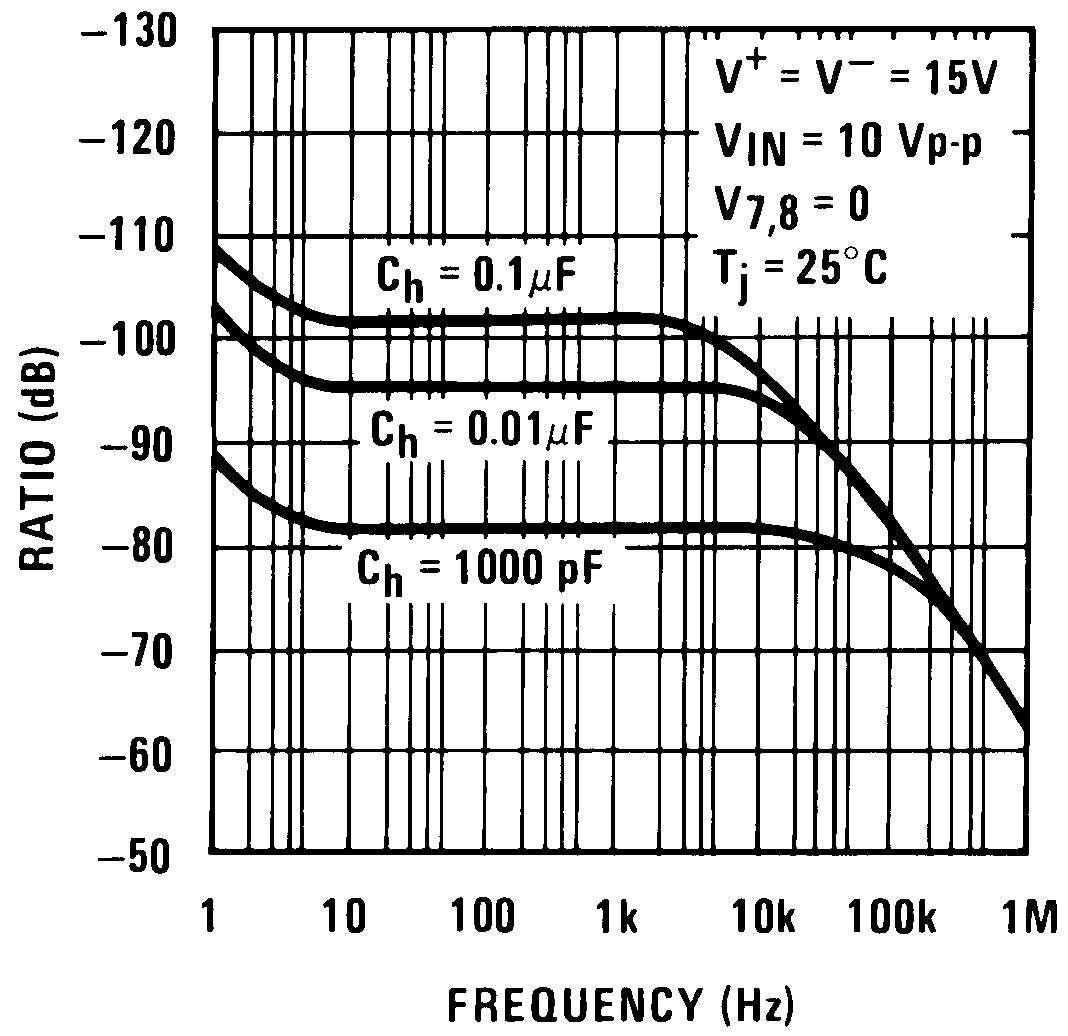

LF198-N LF298 LF398-N LF198A-N LF398A-N feedthrough_rejection_ratio_hold_mode_snosbi3.pngFigure 14. Feedthrough Rejection Ratio (Hold Mode)

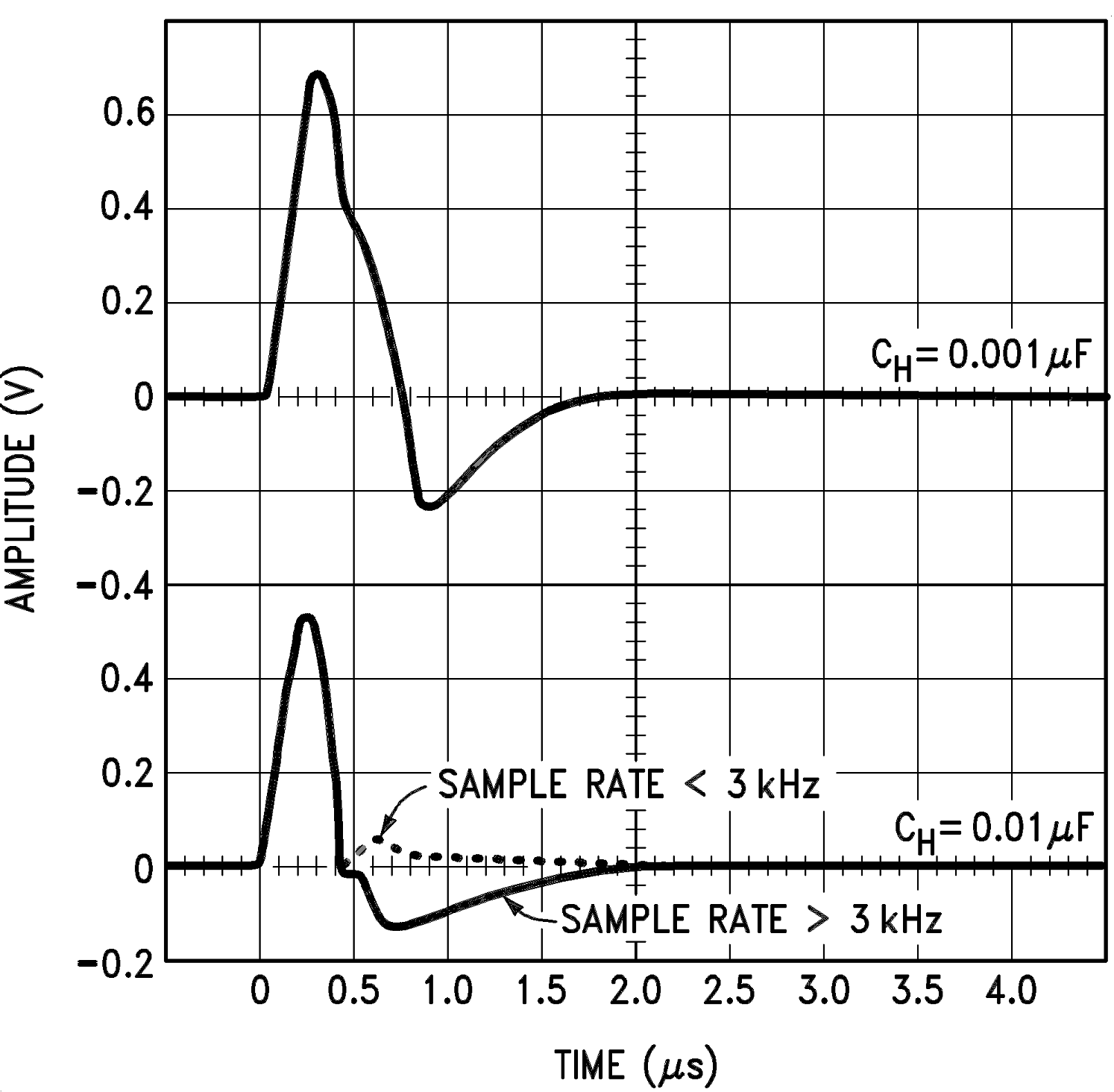

LF198-N LF298 LF398-N LF198A-N LF398A-N output_transient_at_start_of_sample_mode_snosbi3.pngFigure 16. Output Transient at Start of Sample Mode
