Typical Power Block MOSFET Characteristics

TA = 25°C, unless stated otherwise.
CSD86360Q5D graph10_SLPS327.png

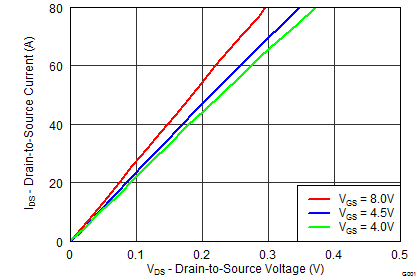

Figure 10. Control MOSFET Saturation
CSD86360Q5D graph12_SLPS287.png

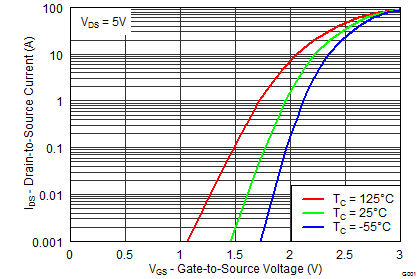

Figure 12. Control MOSFET Transfer
CSD86360Q5D graph14_SLPS327.png

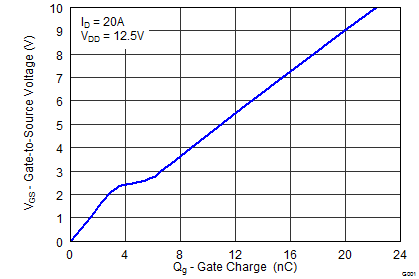

Figure 14. Control MOSFET Gate Charge

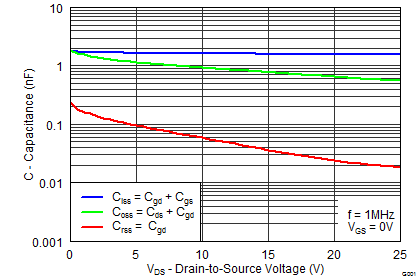

CSD86360Q5D graph16_SLPS327.png
Figure 16. Control MOSFET Capacitance
CSD86360Q5D graph18_SLPS327.png

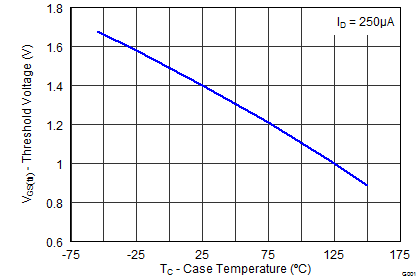

Figure 18. Control MOSFET VGS(th)
CSD86360Q5D graph20p2_SLPS327.png

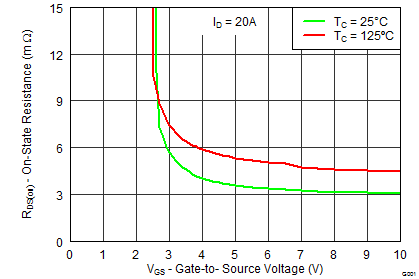

Figure 20. Control MOSFET RDS(on) vs VGS
CSD86360Q5D graph22_SLPS327.png
Figure 22. Control MOSFET Normalized RDS(on)

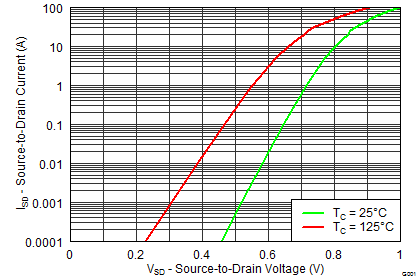

CSD86360Q5D graph24_SLPS327.png
Figure 24. Control MOSFET Body Diode
CSD86360Q5D graph26_SLPS327.png

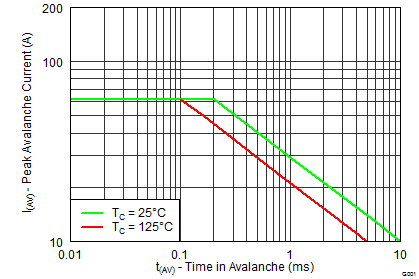

Figure 26. Control MOSFET Unclamped Inductive Switching
CSD86360Q5D graph11_SLPS327.png

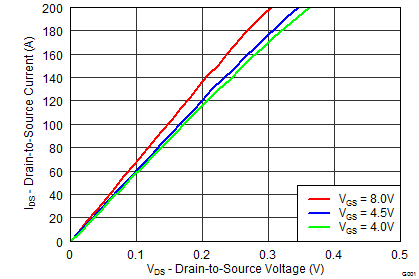

Figure 11. Sync MOSFET Saturation

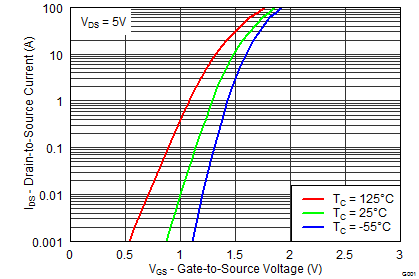

CSD86360Q5D graph13_SLPS287.png
Figure 13. Sync MOSFET Transfer
CSD86360Q5D graph15_SLPS327.png
Figure 15. Sync MOSFET Gate Charge

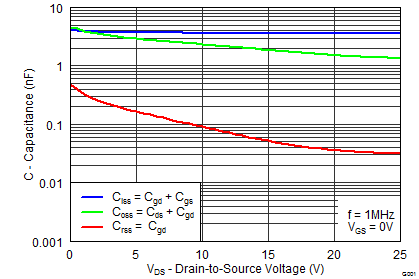

CSD86360Q5D graph17_SLPS327.png
Figure 17. Sync MOSFET Capacitance

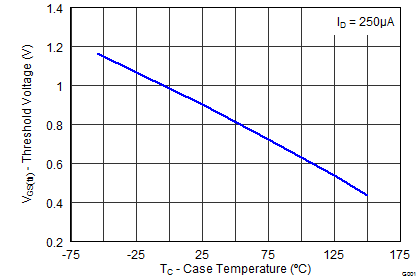

CSD86360Q5D graph19_SLPS327.png
Figure 19. Sync MOSFET VGS(th)
CSD86360Q5D graph21p2_SLPS327.png
Figure 21. Sync MOSFET RDS(on) vs VGS
CSD86360Q5D graph23_SLPS327.png

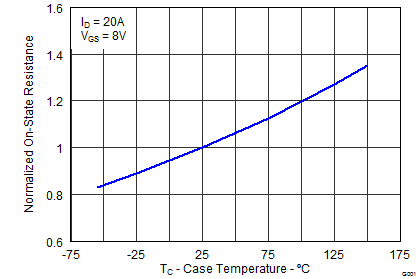

Figure 23. Sync MOSFET Normalized RDS(on)

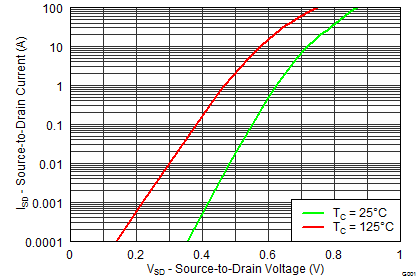

CSD86360Q5D graph25_SLPS327.png
Figure 25. Sync MOSFET Body Diode
CSD86360Q5D graph27_SLPS327.png
Figure 27. Sync MOSFET Unclamped Inductive Switching
