5.6 Typical Power Block Device Characteristics

TJ = 125°C, unless stated otherwise.
CSD86360Q5D graph01p2_SLPS287.png

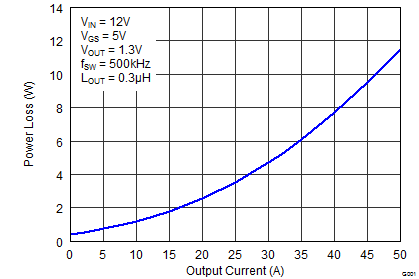

Figure 1. Power Loss vs Output Current
CSD86360Q5D graph03pe_SLPS327.png

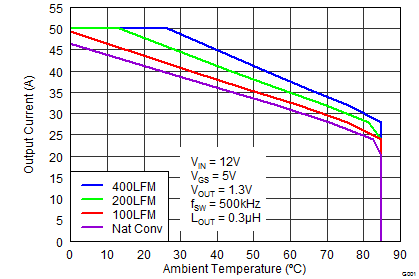

Figure 3. Safe Operating Area – PCB Vertical Mount (1)1
CSD86360Q5D graph05_SLPS287.png

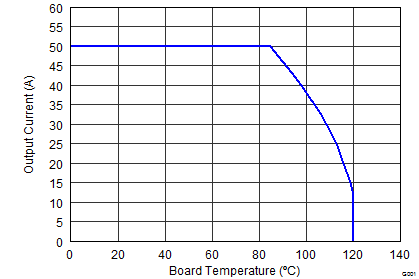

Figure 5. Typical Safe Operating Area(1)1
CSD86360Q5D graph02_SLPS223.png

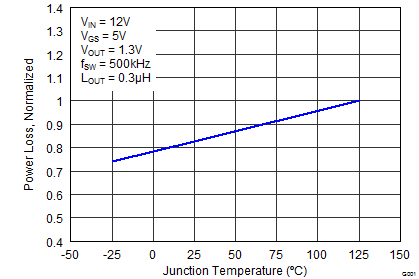

Figure 2. Normalized Power Loss vs Temperature
CSD86360Q5D graph04p3_SLPS327.png

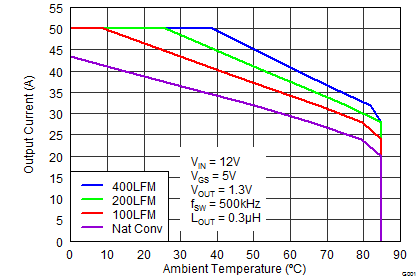

Figure 4. Safe Operating Area – PCB Horizontal Mount (1)1
1. The Typical Power Block System Characteristic curves are based on measurements made on a PCB design with dimensions of 4 in (W) × 3.5 in (L) × 0.062 in (H) and 6 copper layers of 1-oz copper thickness. See Application and Implementation section for detailed explanation.
CSD86360Q5D graph06_SLPS327.png

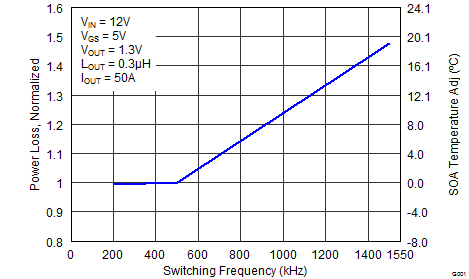

Figure 6. Normalized Power Loss vs Switching Frequency
CSD86360Q5D graph08_SLPS327.png

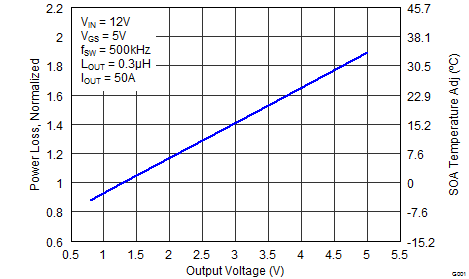

Figure 8. Normalized Power Loss vs Output Voltage
CSD86360Q5D graph07p2_SLPS327.png

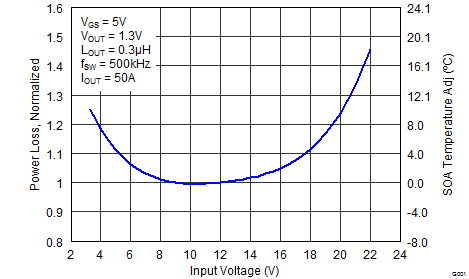

Figure 7. Normalized Power Loss vs Input Voltage
CSD86360Q5D graph09_SLPS327.png

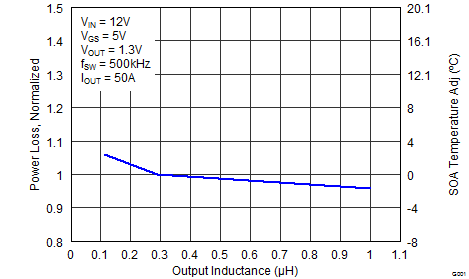

Figure 9. Normalized Power Loss vs Output Inductance
