5.7 Typical Power Block Device Characteristics

Test conditions: VIN = 12 V, VDD = 5 V, ƒSW = 500 kHz, VOUT = 1.3 V, LOUT = 0.95 µH, IOUT = 20 A, TJ = 125°C, unless stated otherwise.
CSD86336Q3D D001_SLPS666.gif
Figure 1. Power Loss vs Output Current
CSD86336Q3D D005_SLPS666.gif

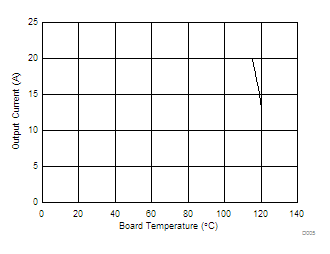

Figure 3. Typical Safe Operating Area (SOA) (1)
CSD86336Q3D D002_SLPS666.gif

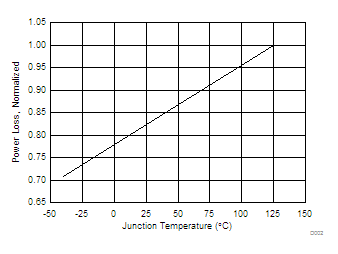

Figure 2. Power Loss vs Temperature
CSD86336Q3D D006_SLPS666.gif

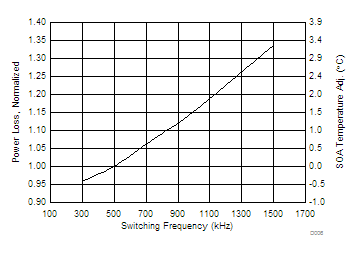

Figure 4. Normalized Power Loss vs Switching Frequency
CSD86336Q3D D008_SLPS666.gif
Figure 6. Normalized Power Loss vs Output Voltage
CSD86336Q3D D007_SLPS666.gif
Figure 5. Normalized Power Loss vs Input Voltage
CSD86336Q3D D009_SLPS666.gif

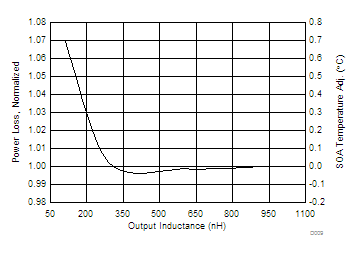

Figure 7. Normalized Power Loss vs Output Inductance
1. The Typical Power Block System Characteristic curves are based on measurements made on a PCB design with dimensions of 4 in (W) × 3.5 in (L) × 0.062 in (H) and 6 copper layers of 1-oz copper thickness. See Application and Implementation section for detailed explanation.
