5.6 Electrical Characteristics – Q2 Sync FET

Tj = 25 °C (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
STATIC CHARACTERISTICS
BVDSS Drain-to-source voltage VGS = 0 V, IDS = 250 µA 25 V
IDSS Drain-to-source leakage current VGS = 0 V, VDS = 20 V 1 µA
IGSS Gate-to-source leakage current VDS = 0 V, VGS = +10 / –8 V 100 nA
VGS(th) Gate-to-source threshold voltage VDS = VGS, IDS = 250 µA 1.0 1.3 1.6 V
ZDS(on) Effective AC on-impedance VIN = 12 V, VGS = 5 V, VOUT = 1.3 V,
IOUT = 20 A, ƒSW = 500 kHz,
LOUT = 950 nH		 3.4 mΩ
gfs Transconductance VDS = 2.5 V, IDS = 14 A 57 S
DYNAMIC CHARACTERISTICS
CISS Input capacitance VGS = 0 V, VDS = 12.5 V, ƒ = 1 Mhz 728 970 pF
COSS Output capacitance 501 664 pF
CRSS Reverse transfer capacitance 26 33 pF
RG Series gate resistance 0.65 1.3 Ω
Qg Gate charge total (4.5 V) VDS = 12.5 V, IDS = 14 A 5.7 7.4 nC
Qgd Gate charge – gate-to-drain 1.2 nC
Qgs Gate charge – gate-to-source 2.1 nC
Qg(th) Gate charge at Vth 1.0 nC
QOSS Output charge VDS = 12.5 V, VGS = 0 V 10.3 nC
td(on) Turn on delay time VDS = 12.5 V, VGS = 4.5 V, IDS = 14 A,
RG = 0 Ω		 4 ns
tr Rise time 10 ns
td(off) Turn off delay time 8 ns
tf Fall time 2 ns
DIODE CHARACTERISTICS
VSD Diode forward voltage IDS = 14 A, VGS = 0 V 0.82 0.95 V
Qrr Reverse recovery charge VDS = 12.5 V, IF = 14 A, di/dt = 300 A/µs 25.4 nC
trr Reverse recovery time 18 ns

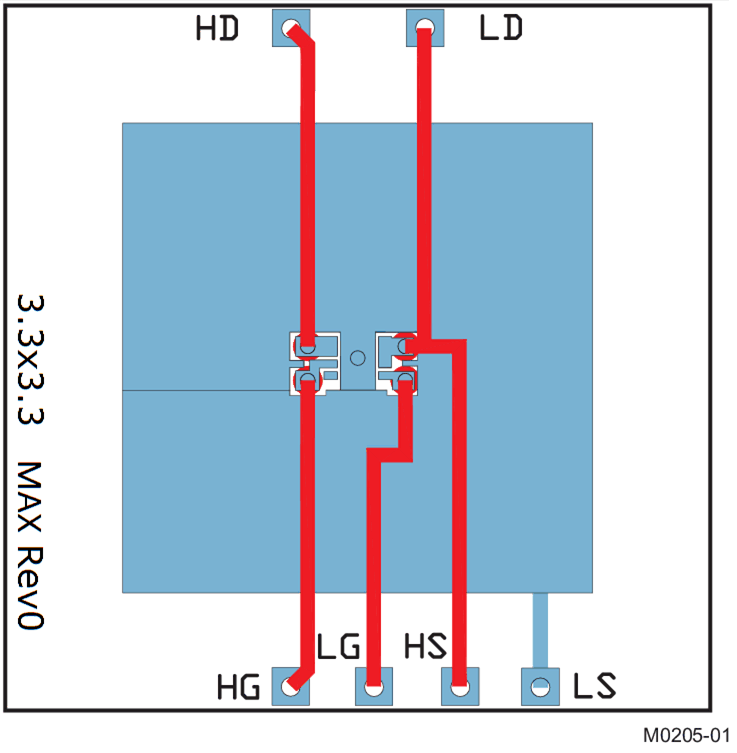

CSD86336Q3D RthMax.gif
Max RθJA = 55°C/W when mounted on 1 in2 (6.45 cm2) of 2-oz (0.071-mm) thick Cu.

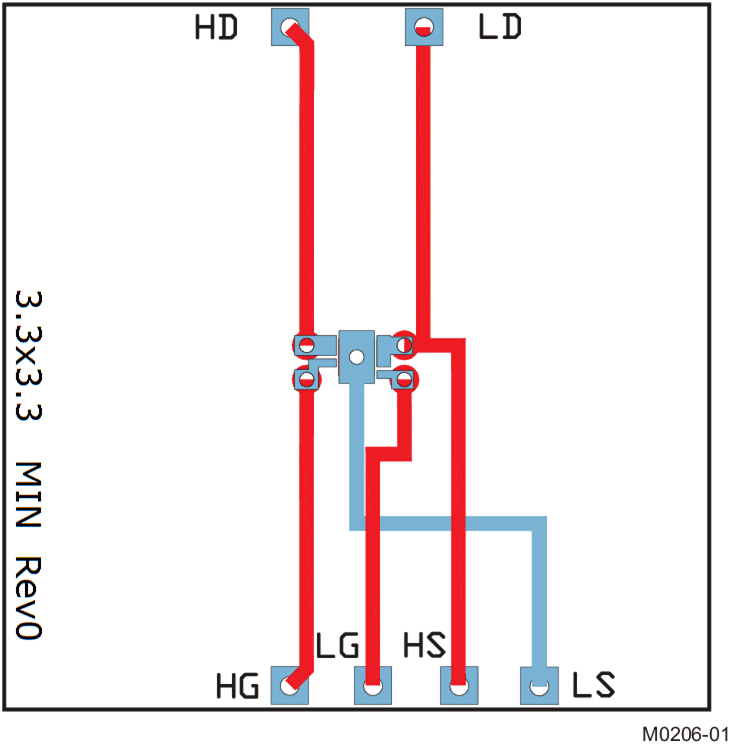

CSD86336Q3D RthMin.gif
Max RθJA = 105°C/W when mounted on minimum pad area of 2-oz (0.071-mm) thick Cu.
