Typical MOSFET Characteristics

TA = 25°C (unless otherwise stated)

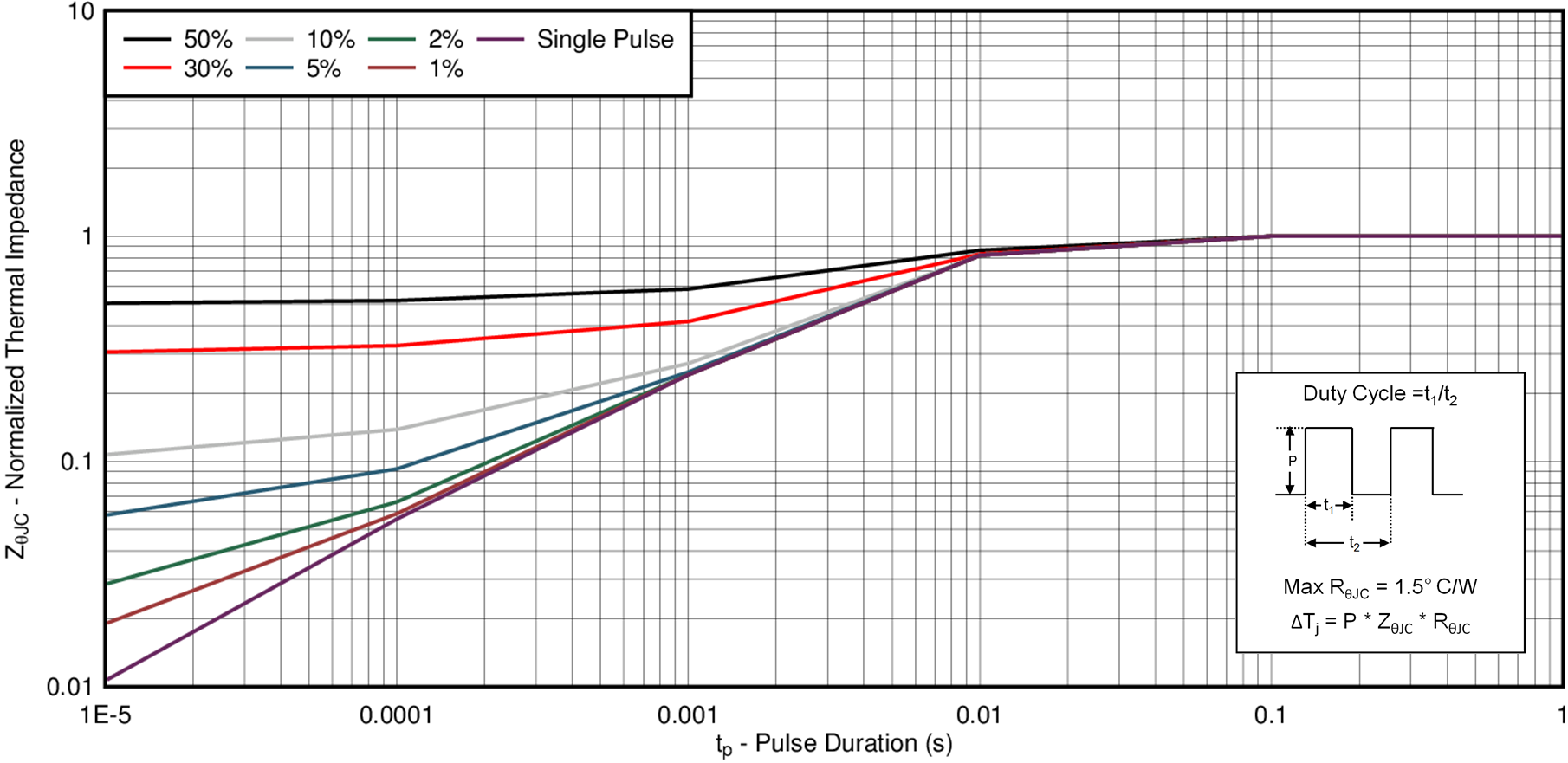

GUID-88DC0497-76CD-488C-AA22-AA0C20CB6FDE-low.png Figure 5-1 Transient Thermal Impedance

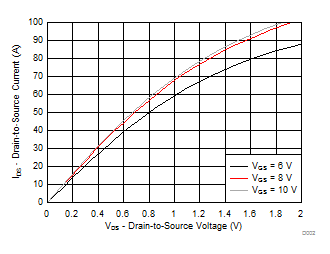

GUID-21FE8321-FA8C-4232-9B53-75435952E0E1-low.gifFigure 5-2 Saturation Characteristics
ID = 10 A VDS = 50 V
Figure 5-4 Gate Charge
ID = 250 µA
Figure 5-6 Threshold Voltage vs Temperature
ID = 10 A
Figure 5-8 Normalized On-State Resistance vs Temperature
Single Pulse, Max RθJC = 1.5°C/W
Figure 5-10 Maximum Safe Operating Area

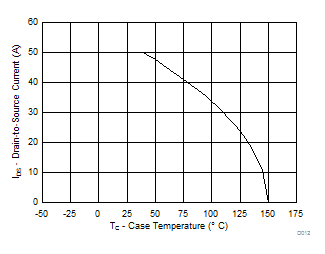

GUID-24FDF229-86E8-44B1-89CB-BAD0F97F777B-low.gifFigure 5-12 Maximum Drain Current vs Temperature
VDS = 5 V
Figure 5-3 Transfer Characteristics

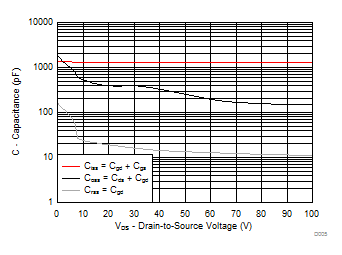

GUID-42CCA698-7572-4F33-BBB1-4A5B13673CB6-low.gifFigure 5-5 Capacitance

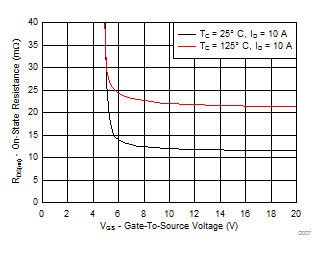

GUID-83CAF4F6-88FA-4150-874F-8A7EBF6DCD9D-low.gifFigure 5-7 On-State Resistance vs Gate-to-Source Voltage

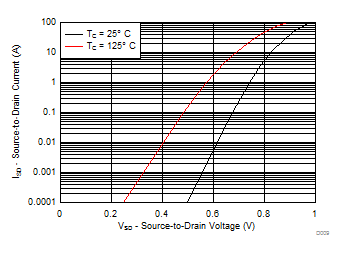

GUID-E58FBD6C-BBD0-4594-83E5-3E83A0E1E384-low.gifFigure 5-9 Typical Diode Forward Voltage
Figure 5-11 Single Pulse Unclamped Inductive Switching
