6.10.5.2.3 SPI Controller Mode Switching Parameters (CLOCK PHASE = 1, SPICLK = output,
SPISIMO = output, and SPISOMI = input)
NO.(1)(2)(3) PARAMETER MIN TYP MAX UNIT
1 tc(SPC)M Cycle time, SPICLK(4) 25 256tc(VCLK) ns
2(4) tw(SPCH)M Pulse duration, SPICLK high (clock polarity = 0) 0.5tc(SPC)M – 4 0.5tc(SPC)M + 4 ns
tw(SPCL)M Pulse duration, SPICLK low (clock polarity = 1) 0.5tc(SPC)M – 4 0.5tc(SPC)M + 4
3(4) tw(SPCL)M Pulse duration, SPICLK low (clock polarity = 0) 0.5tc(SPC)M – 4 0.5tc(SPC)M + 4 ns
tw(SPCH)M Pulse duration, SPICLK high (clock polarity = 1) 0.5tc(SPC)M – 4 0.5tc(SPC)M + 4
4(4) td(SPCH-SIMO)M Delay time, SPISIMO valid before SPICLK low, (clock polarity = 0) 0.5tc(SPC)M – 3 ns
td(SPCL-SIMO)M Delay time, SPISIMO valid before SPICLK high, (clock polarity = 1) 0.5tc(SPC)M – 3
5(4) tv(SPCL-SIMO)M Valid time, SPISIMO data valid after SPICLK low, (clock polarity = 0) 0.5tc(SPC)M – 10.5 ns
tv(SPCH-SIMO)M Valid time, SPISIMO data valid after SPICLK high, (clock polarity = 1) 0.5tc(SPC)M – 10.5
6(5) tC2TDELAY Setup time CS active until SPICLK high
(clock polarity = 0)		 CSHOLD = 0 0.5*tc(SPC)M + (C2TDELAY + 2)*tc(VCLK) – 7 0.5*tc(SPC)M + (C2TDELAY+2) * tc(VCLK) + 7.5 ns
CSHOLD = 1 0.5*tc(SPC)M + (C2TDELAY + 2)*tc(VCLK) – 7 0.5*tc(SPC)M + (C2TDELAY+2) * tc(VCLK) + 7.5
Setup time CS active until SPICLK low
(clock polarity = 1)		 CSHOLD = 0 0.5*tc(SPC)M + (C2TDELAY+2)*tc(VCLK) – 7 0.5*tc(SPC)M + (C2TDELAY+2) * tc(VCLK) + 7.5
CSHOLD = 1 0.5*tc(SPC)M + (C2TDELAY+3)*tc(VCLK) – 7 0.5*tc(SPC)M + (C2TDELAY+3) * tc(VCLK) + 7.5
7(5) tT2CDELAY Hold time, SPICLK low until CS inactive (clock polarity = 0) (T2CDELAY + 1) *tc(VCLK) – 7.5 (T2CDELAY + 1) *tc(VCLK) + 7 ns
Hold time, SPICLK high until CS inactive (clock polarity = 1) (T2CDELAY + 1) *tc(VCLK) – 7.5 (T2CDELAY + 1) *tc(VCLK) + 7
8(4) tsu(SOMI-SPCL)M Setup time, SPISOMI before SPICLK low
(clock polarity = 0)		 5 ns
tsu(SOMI-SPCH)M Setup time, SPISOMI before SPICLK high
(clock polarity = 1)		 5
9(4) th(SPCL-SOMI)M Hold time, SPISOMI data valid after SPICLK low
(clock polarity = 0)		 3 ns
th(SPCH-SOMI)M Hold time, SPISOMI data valid after SPICLK high
(clock polarity = 1)		 3
(1) The Controller bit (SPIGCRx.0) is set and the CLOCK PHASE bit (SPIFMTx.16) is set ( where x = 0 or 1 ).
(2) tc(MSS_VCLK) = main subsystem clock time = 1 / f(MSS_VCLK). For more details, see the Technical Reference Manual.
(3) When the SPI is in Controller mode, the following must be true: For PS values from 1 to 255: tc(SPC)M ≥ (PS +1)tc(MSS_VCLK) ≥ 25 ns, where PS is the prescale value set in the SPIFMTx.[15:8] register bits. For PS values of 0: tc(SPC)M = 2tc(MSS_VCLK) ≥ 25 ns.
(4) The active edge of the SPICLK signal referenced is controlled by the CLOCK POLARITY bit (SPIFMTx.17).
(5) C2TDELAY and T2CDELAY is programmed in the SPIDELAY register

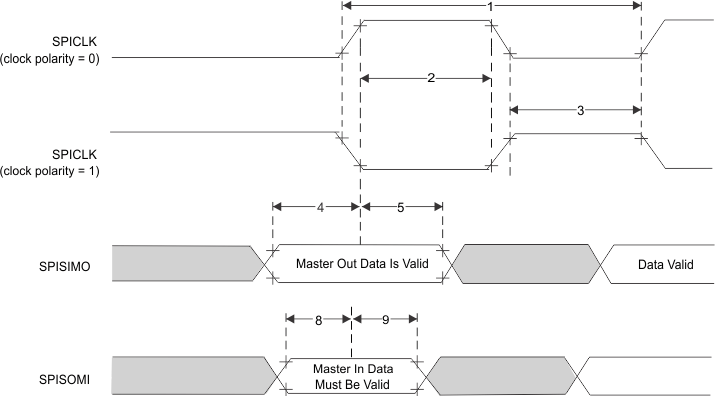

GUID-6A6051CA-597B-42FA-BA69-77A213936CC3-low.gif Figure 6-10 SPI Controller Mode External Timing (CLOCK PHASE = 1)

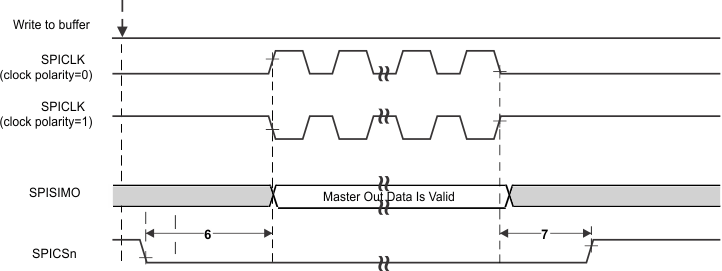

GUID-0D966465-F3AA-4189-B6B9-BD329F855EEC-low.gif Figure 6-11 SPI Controller Mode Chip Select Timing (CLOCK PHASE = 1)
