Parameter Measurement Information

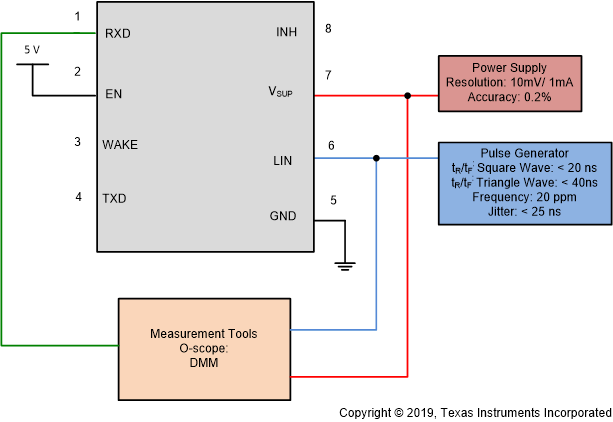

GUID-21EB6A27-F9DA-4C63-9E20-7D068D41A203-low.gif Figure 8-1 Test System: Operating Voltage Range with RX and TX Access: Parameters 9, 10
GUID-D3BC3235-3D23-4038-BE3F-0EA858DECFFB-low.gif Figure 8-2 RX Response: Operating Voltage Range

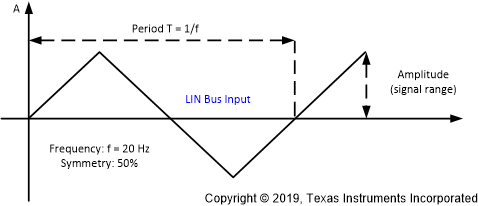

GUID-EF60E67C-4E66-4805-89E2-07500BBEEC1F-low.gif Figure 8-3 LIN Bus Input Signal
GUID-35F5659C-BB91-4089-A904-1D7695A849F6-low.gif Figure 8-4 LIN Receiver Test with RX access Param 17, 18, 19, 20
GUID-F3F46BAE-0E52-43FB-B621-8DB7C18B3B56-low.gif Figure 8-5 VSUP_NON_OP Param 1154/56

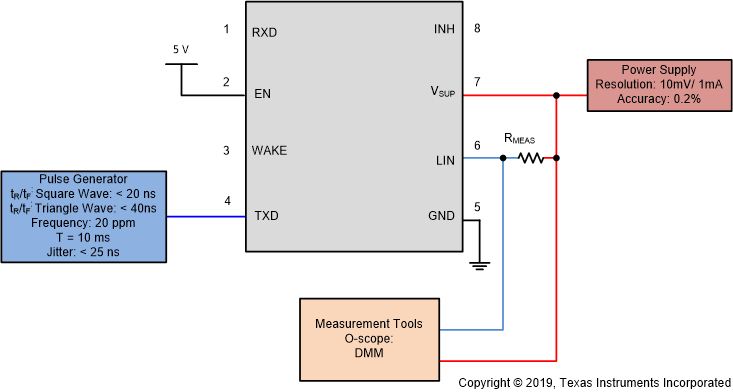

GUID-557F2EBA-CBDE-4EFC-A63F-11ECB7AD9DBD-low.gif Figure 8-6 Test Circuit for IBUS_LIM at Dominant State (Driver on) Param 12
GUID-5CDD7BF2-F164-4D3D-B0AE-876B1BA702CF-low.gif Figure 8-7 Test Circuit for IBUS_PAS_dom; TXD = Recessive State VBUS = 0 V, Param 13
GUID-A69F0A60-F898-46DA-AD70-2E7DD464C598-low.gif Figure 8-8 Test Circuit for IBUS_PAS_rec Param 14

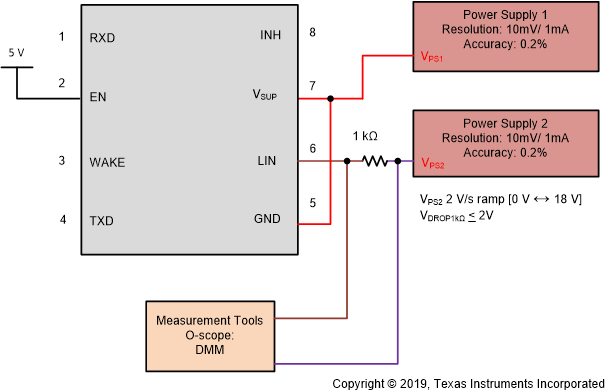

GUID-B41B33E9-E400-4123-BC56-8CC5D1ECA03F-low.gif Figure 8-9 Test Circuit for IBUS_NO_GND Loss of GND
GUID-A4935E12-F38D-4523-9F9B-F927E696E456-low.gif Figure 8-10 Test Circuit Slope Control and Duty Cycle Param 27, 28, 29, 30, 72, 73, 74, 75
GUID-09929E1E-BD62-4B1C-A4CF-82DA24B8F4A0-low.gif Figure 8-11 Definition of Bus Timing Parameters
GUID-A4935E12-F38D-4523-9F9B-F927E696E456-low.gif Figure 8-12 Propagation Delay Test Circuit; Param 31, 32

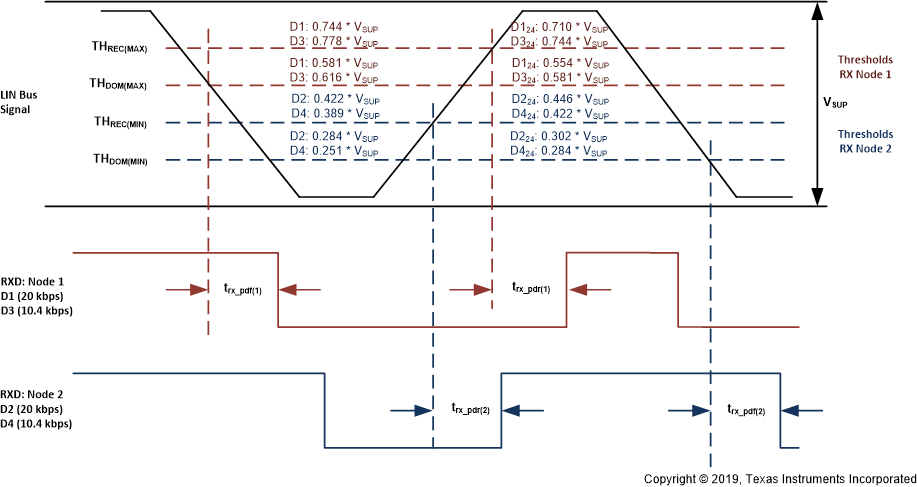

GUID-DDD6753C-F1C0-4C0B-8E33-56936A6836C1-low.gif Figure 8-13 Propagation Delay
GUID-A1F7D086-627A-4F93-9AC9-2D87E55D1047-low.gif Figure 8-14 Mode Transitions

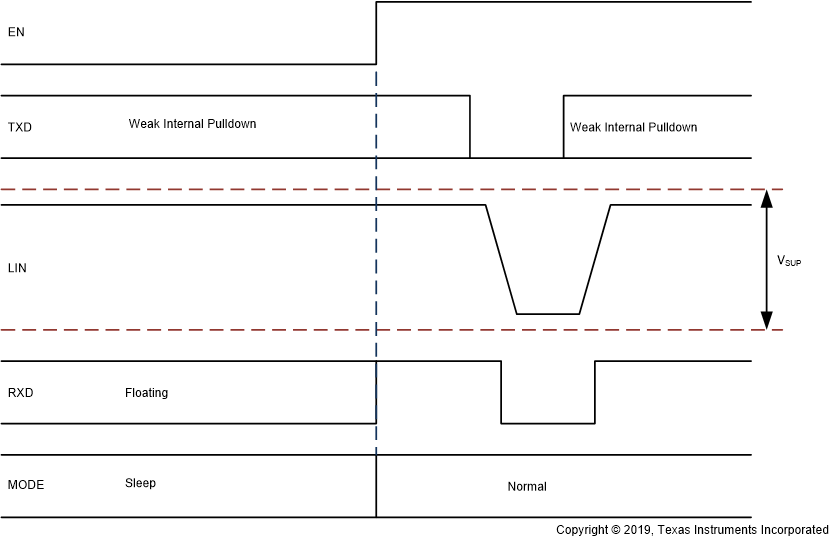

GUID-2A98CE5E-917E-4852-8350-E4132CCACE3A-low.gif Figure 8-15 Wake-up Through EN

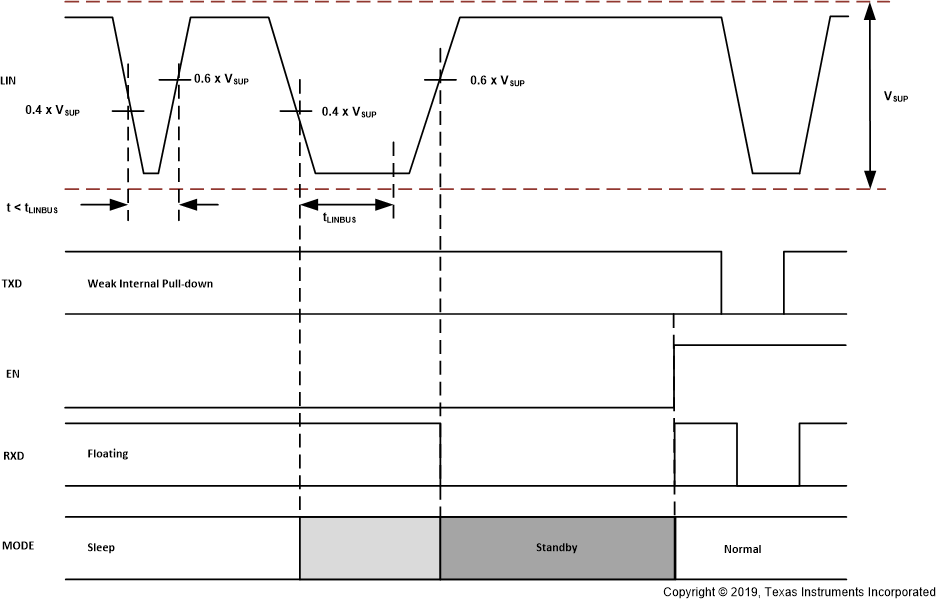

GUID-1AA3AF2E-0871-4DF9-8EB9-99FEF72841BC-low.gif Figure 8-16 Wake-up through LIN
