6.7 Typical Characteristics

–40°C ≤ TA = TJ ≤ +125°C, V(IN_SYS) = V(IN) = 24 V, V( SHDN) = 2 V, R(ILIM) = 30 kΩ, IMON = PGOOD =  FLT = OPEN, C(OUT) = 1 μF, C(dVdT) = OPEN. (Unless stated otherwise)

TPS2663 On-Resistance vs Temperature Across Load Current
Figure 6-1 On-Resistance vs Temperature Across Load Current

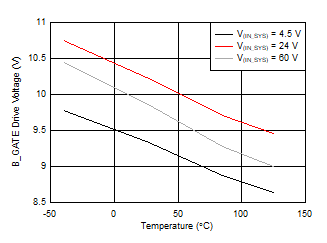

TPS2663 B_GATE Drive Voltage vs Temperature
Figure 6-3 B_GATE Drive Voltage vs Temperature

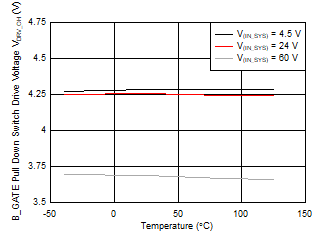

TPS2663 B_GATE Pulldown Drive Voltage vs Temperature
A.
Figure 6-5 B_GATE Pulldown Drive Voltage vs Temperature
TPS2663 Input Supply Current vs Supply Voltage During Normal Operation
Figure 6-7 Input Supply Current vs Supply Voltage During Normal Operation

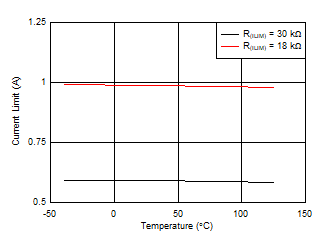

TPS2663 Overload Current Limit vs Temperature
Figure 6-9 Overload Current Limit vs Temperature
TPS2663 Output Power Limiting Accuracy vs PLIM
A.
Figure 6-11 Output Power Limiting Accuracy vs PLIM
TPS2663 Current Monitor Output vs Output CurrentFigure 6-13 Current Monitor Output vs Output Current

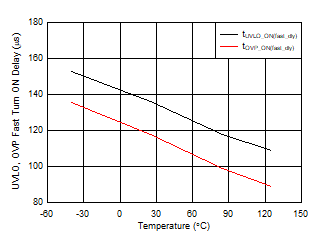

TPS2663 UVLO, OVP Fast Turn-ON Delay vs Temperature
A.
V(PGTH) > V(PGTHF)
Figure 6-15 UVLO, OVP Fast Turn-ON Delay vs Temperature

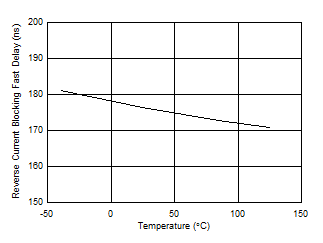

TPS2663 Reverse Current Blocking Response vs Temperature
Figure 6-17 Reverse Current Blocking Response vs Temperature
TPS2663 Overvoltage Clamp Threshold vs Temperature
Figure 6-2 Overvoltage Clamp Threshold vs Temperature

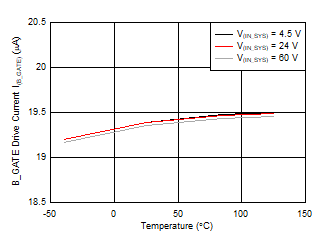

TPS2663 B_GATE Drive Current vs Temperature
A.
Figure 6-4 B_GATE Drive Current vs Temperature
TPS2663 Input Supply Current vs Supply Voltage in Shutdown
Figure 6-6 Input Supply Current vs Supply Voltage in Shutdown
TPS2663 Input Supply Current vs Reverse Supply Voltage, –V(IN_SYS)
V(OUT) = 0 V
Figure 6-8 Input Supply Current vs Reverse Supply Voltage, –V(IN_SYS)
TPS2663 Overload Current Limit vs Temperature
Figure 6-10 Overload Current Limit vs Temperature
TPS2663 Power Limit, Current limit vs Supply Voltage
TPS26632 R(PLIM) = 100 kΩ R(ILIM) = 3 kΩ
Figure 6-12 Power Limit, Current limit vs Supply Voltage
TPS2663 IMON Gain Accuracy at < 0.6-A Output CurrentFigure 6-14 IMON Gain Accuracy at < 0.6-A Output Current
TPS2663 Maximum Duration in Current and Power Limiting vs Temperature
A.
Figure 6-16 Maximum Duration in Current and Power Limiting vs Temperature
TPS2663 Thermal Shutdown Time vs Power Dissipation
Taken on VQFN device on EVM Board
Figure 6-18 Thermal Shutdown Time vs Power Dissipation
