Low-Latency Filter Frequency Response

The low-latency filter provides many data rate options for rejecting 50-Hz and 60-Hz line cycle noise. At data rates of 2.5 SPS, 5 SPS, 10 SPS, and 20 SPS, the filter rejects both 50-Hz and 60-Hz line frequencies. At data rates of 16.6 SPS and 50 SPS, the filter has a notch at 50 Hz. At a 60-SPS data rate, the filter has a notch at 60 Hz.

For detailed frequency response plots showing line cycle noise rejection, download the ADS1x4S0x design calculator from www.ti.com.

Figure 54 to Figure 68 show the frequency response of the low-latency filter for different data rates. Table 12 gives the bandwidth of the low-latency filter for each data rate.

ADS114S06 ADS114S08 ai_ll_filt_2p5sps_sbas660.gif
fCLK = 4.096 MHz, low-latency filter

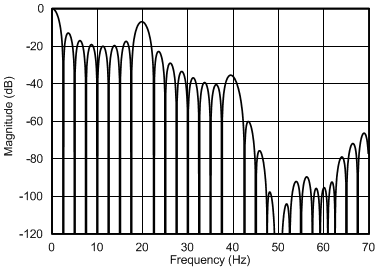

Figure 54. Low-Latency Filter Frequency Response,
Data Rate = 2.5 SPS
ADS114S06 ADS114S08 ai_ll_filt_10sps_sbas660.gif
fCLK = 4.096 MHz, low-latency filter
Figure 56. Low-Latency Filter Frequency Response,
Data Rate = 10 SPS
ADS114S06 ADS114S08 ai_ll_filt_20sps_sbas660.gif
fCLK = 4.096 MHz, low-latency filter
Figure 58. Low-Latency Filter Frequency Response,
Data Rate = 20 SPS
ADS114S06 ADS114S08 ai_ll_filt_50sps_sbas660.gif
fCLK = 4.096 MHz, low-latency filter
Figure 60. Low-Latency Filter Frequency Response,
Data Rate = 50 SPS
ADS114S06 ADS114S08 ai_ll_filt_100sps_sbas660.gif
fCLK = 4.096 MHz, low-latency filter
Figure 62. Low-Latency Filter Frequency Response,
Data Rate = 100 SPS
ADS114S06 ADS114S08 ai_ll_filt_400sps_sbas660.gif
fCLK = 4.096 MHz, low-latency filter
Figure 64. Low-Latency Filter Frequency Response,
Data Rate = 400 SPS
ADS114S06 ADS114S08 ai_ll_filt_1ksps_sbas660.gif
fCLK = 4.096 MHz, low-latency filter
Figure 66. Low-Latency Filter Frequency Response,
Data Rate = 1 kSPS
ADS114S06 ADS114S08 ai_ll_filt_4ksps_sbas660.gif
fCLK = 4.096 MHz, low-latency filter
Figure 68. Low-Latency Filter Frequency Response,
Data Rate = 4 kSPS
ADS114S06 ADS114S08 ai_ll_filt_5sps_sbas660.gif
fCLK = 4.096 MHz, low-latency filter
Figure 55. Low-Latency Filter Frequency Response,
Data Rate = 5 SPS
ADS114S06 ADS114S08 ai_ll_filt_16sps_sbas660.gif
fCLK = 4.096 MHz, low-latency filter
Figure 57. Low-Latency Filter Frequency Response,
Data Rate = 16.6 SPS
ADS114S06 ADS114S08 ai_ll_filt_20sps_50_60_sbas660.gif
fCLK = 4.096 MHz, low-latency filter
Figure 59. Low-Latency Filter Frequency Response,
Data Rate = 20 SPS, Zoomed to 50 Hz and 60 Hz
ADS114S06 ADS114S08 ai_ll_filt_60sps_sbas660.gif
fCLK = 4.096 MHz, low-latency filter
Figure 61. Low-Latency Filter Frequency Response,
Data Rate = 60 SPS
ADS114S06 ADS114S08 ai_ll_filt_200sps_sbas660.gif
fCLK = 4.096 MHz, low-latency filter
Figure 63. Low-Latency Filter Frequency Response,
Data Rate = 200 SPS
ADS114S06 ADS114S08 ai_ll_filt_800sps_sbas660.gif
fCLK = 4.096 MHz, low-latency filter
Figure 65. Low-Latency Filter Frequency Response,
Data Rate = 800 SPS
ADS114S06 ADS114S08 ai_ll_filt_2ksps_sbas660.gif
fCLK = 4.096 MHz, low-latency filter
Figure 67. Low-Latency Filter Frequency Response,
Data Rate = 2 kSPS

Table 12. Low-Latency Filter Bandwidth

NOMINAL DATA RATE (SPS)(1) –3-dB BANDWIDTH (Hz)(1)
2.5 1.1
5 2.2
10 4.7
16.6 7.4
20 13.2
50 22.1
60 26.6
100 44.4
200 89.9
400 190
800 574
1000 718
2000 718
4000 718
Valid for the internal oscillator or an external 4.096-MHz clock. Scales proportional with fCLK.

The low-latency filter notches and output data rate scale proportionally with the clock frequency. For example, a notch that appears at 20 Hz when using a 4.096-MHz clock appears at 10 Hz if a 2.048-MHz clock is used. Note that the internal oscillator can vary over temperature as specified in the Electrical Characteristics table. The data rate, conversion time, and filter notches consequently vary by the same percentage. Consider using an external precision clock source if a digital filter notch at a specific frequency with a tighter tolerance is required.
