7.8 Typical Characteristics

at TA = 25°C, AVDD = 3.3 V, AVSS = 0 V, DVDD = IOVDD = 3.3 V, using internal VREF = 2.5 V, internal 4.096-MHz oscillator, and PGA enabled (unless otherwise noted)
ADS114S06 ADS114S08 D055_sbas660.gif
PGA bypassed, DR = 20 SPS, VIN = 0 V
Figure 8. Absolute Input Current vs Absolute Input Voltage
ADS114S06 ADS114S08 D053_sbas660.gif
PGA enabled, gain = 1, DR = 20 SPS, VIN = 0 V
Figure 10. Absolute Input Current vs Absolute Input Voltage
ADS114S06 ADS114S08 D051_sbas660.gif
PGA bypassed, DR = 20 SPS, VCM = 1.65 V
Figure 12. Differential Input Current vs Differential Input Voltage
ADS114S06 ADS114S08 D049_sbas660.gif
PGA enabled, DR = 20 SPS, VCM = 1.65 V
Figure 14. Differential Input Current vs Differential Input Voltage
ADS114S06 ADS114S08 D007_sbas660.gif
PGA bypassed, gain = 1
Figure 16. INL vs Differential Input Voltage
ADS114S06 ADS114S08 D020_sbas660.gif
Figure 18. INL vs Temperature
ADS114S06 ADS114S08 D022_sbas660.gif
Figure 20. Gain Error vs Temperature
ADS114S06 ADS114S08 D001_sbas660.gif
Figure 22. Internal Reference Voltage vs AVDD
ADS114S06 ADS114S08 D018_sbas660.gif
Figure 24. Internal Oscillator Frequency Histogram
ADS114S06 ADS114S08 D043_sbas660.gif
Figure 26. IDAC Accuracy vs Compliance Voltage
ADS114S06 ADS114S08 D045_sbas660.gif
IDAC output voltage = 1.65 V
Figure 28. IDAC Accuracy vs Temperature
ADS114S06 ADS114S08 D034_sbas660.gif
Figure 30. VBIAS Voltage [(AVDD – AVSS) / 2] vs Temperature
ADS114S06 ADS114S08 D032_sbas660.gif
Figure 32. PGA Rail Detection, PGAN_RAILP, PGAP_RAILP Threshold From AVDD
ADS114S06 ADS114S08 D030_sbas660.gif
Level 0 = 300 mV
Figure 34. Reference Threshold Voltage, Level 0
ADS114S06 ADS114S08 D004_sbas660.gif
Figure 36. Temperature Sensor Voltage vs Temperature
ADS114S06 ADS114S08 D060_sbas660.gif
AVDD = 3.3 V
Figure 38. GPIO Pin Output Voltage vs Sourcing Current
ADS114S06 ADS114S08 D058_sbas660.gif
DVDD = 3.3 V
Figure 40. Digital Pin Output Voltage vs Sourcing Current
ADS114S06 ADS114S08 D024_sbas660.gif
Standby and conversion mode, external VREF
Figure 42. Analog Supply Current vs Temperature
ADS114S06 ADS114S08 D029_sbas660.gif
Power-down mode
Figure 44. Analog Supply Current vs Temperature
ADS114S06 ADS114S08 D025_sbas660.gif
Standby and conversion mode
Figure 46. Digital Supply Current vs Temperature
ADS114S06 ADS114S08 D028_sbas660.gif
Power-down mode
Figure 48. Digital Supply Current vs Temperature
ADS114S06 ADS114S08 D054_sbas660.gif
PGA bypassed, DR = 4 kSPS, VIN = 0 V
Figure 9. Absolute Input Current vs Absolute Input Voltage
ADS114S06 ADS114S08 D052_sbas660.gif
PGA enabled, gain = 1, DR = 4 kSPS, VIN = 0 V
Figure 11. Absolute Input Current vs Absolute Input Voltage
ADS114S06 ADS114S08 D050_sbas660.gif
PGA bypassed, DR = 4 kSPS, VCM = 1.65 V
Figure 13. Differential Input Current vs Differential Input Voltage
ADS114S06 ADS114S08 D048_sbas660.gif
PGA enabled, DR = 4 kSPS, VCM = 1.65 V
Figure 15. Differential Input Current vs Differential Input Voltage
ADS114S06 ADS114S08 D008_sbas660.gif
PGA enabled, gain = 1
Figure 17. INL vs Differential Input Voltage
ADS114S06 ADS114S08 D021_sbas660.gif

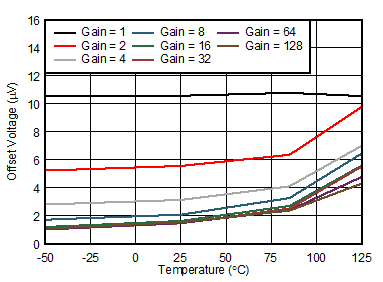

Figure 19. Offset Voltage vs Temperature
ADS114S06 ADS114S08 D056_sbas660.gif
28 units, TQFP package
Figure 21. Internal Reference Voltage vs Temperature
ADS114S06 ADS114S08 D062_sbas660.gif
Figure 23. Internal Reference Voltage Noise
ADS114S06 ADS114S08 D057_sbas660.gif
28 units
Figure 25. Internal Oscillator Frequency vs Temperature
ADS114S06 ADS114S08 D044_sbas660.gif
Figure 27. IDAC Accuracy vs Compliance Voltage
ADS114S06 ADS114S08 D046_sbas660.gif
Figure 29. IDAC Matching vs Temperature
ADS114S06 ADS114S08 D035_sbas660.gif
Figure 31. VBIAS Voltage [(AVDD – AVSS) / 12] vs Temperature
ADS114S06 ADS114S08 D033_sbas660.gif
Figure 33. PGA Rail Detection, PGAN_RAILN, PGAP_RAILN Threshold From AVSS
ADS114S06 ADS114S08 D031_sbas660.gif
Level 1 = 1/3 · (AVDD – AVSS)
Figure 35. Reference Threshold Voltage, Level 1
ADS114S06 ADS114S08 D005_sbas660.gif
Figure 37. Low-Side Switch RON vs Temperature
ADS114S06 ADS114S08 D061_sbas660.gif
AVDD = 3.3 V
Figure 39. GPIO Pin Output Voltage vs Sinking Current
ADS114S06 ADS114S08 D059_sbas660.gif
DVDD = 3.3 V
Figure 41. Digital Pin Output Voltage vs Sinking Current
ADS114S06 ADS114S08 D023_sbas660.gif
Conversion mode, external VREF
Figure 43. Analog Supply Current vs AVDD
ADS114S06 ADS114S08 D064_sbas660.gif
Figure 45. Internal Reference AVDD Current vs Temperature
ADS114S06 ADS114S08 D036_sbas660.gif
Conversion mode
Figure 47. Digital Supply Current vs DVDD
