Layout Example

The following example layout demonstrates how the thermal pad should be laid out using standard WQFN board routing guidelines.

LMH1218 layout_example_1.png

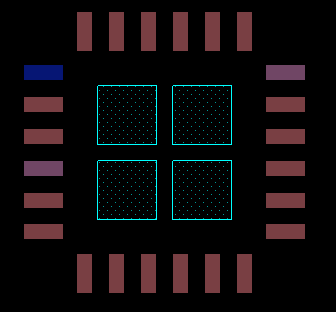

Note: Thermal pad is divided into 4 squares with solder paste
Figure 28. LMH1218 Recommended Four Squares Solder Paste
LMH1218 layout_example2.png

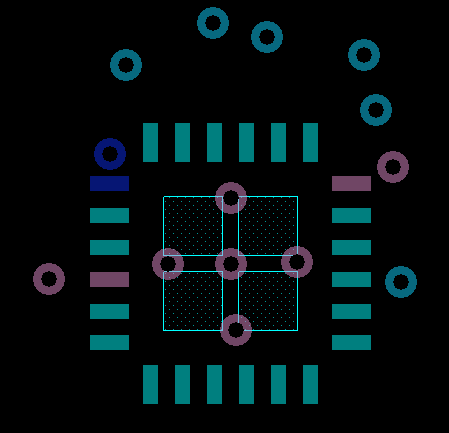

5 Vias without solder paste are located between 4 squares solder paste
Figure 29. LMH1218 Recommended Solder Paste Mask and Vias
LMH1218 example_layout.png

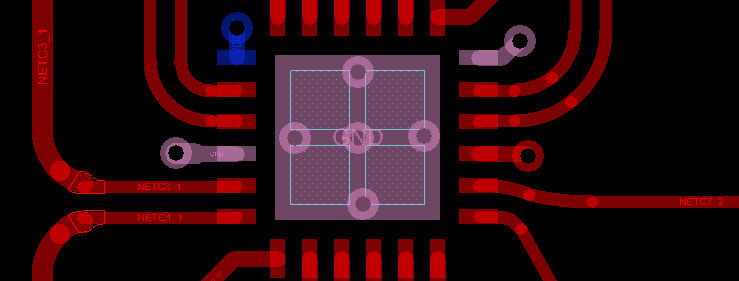

Top etch plus traces
Figure 30. Example Layout
