3.1 Switching

Figure 3-1 through Figure 3-12 show the switching behavior waveforms. Each waveform reflects the following parameters:

  • Ch 1 (dark blue) is Vsw_priL: switching voltage of primary low-side half bridge
  • Ch 2 (light blue) is Vsw_priH: switching voltage of primary high-side half bridge
  • Ch 3 (purple) is Vsw_sr: switching voltage of secondary SR MOSFET
  • Ch 4 (green) is Ip: Current of primary side
PMP41037 800VIN, Forward Operating With 0A LoadFigure 3-1 800VIN, Forward Operating With 0A Load
PMP41037 800VIN, Forward Operating With 0A Load (Zoom in at Rising Edge)Figure 3-2 800VIN, Forward Operating With 0A Load (Zoom in at Rising Edge)

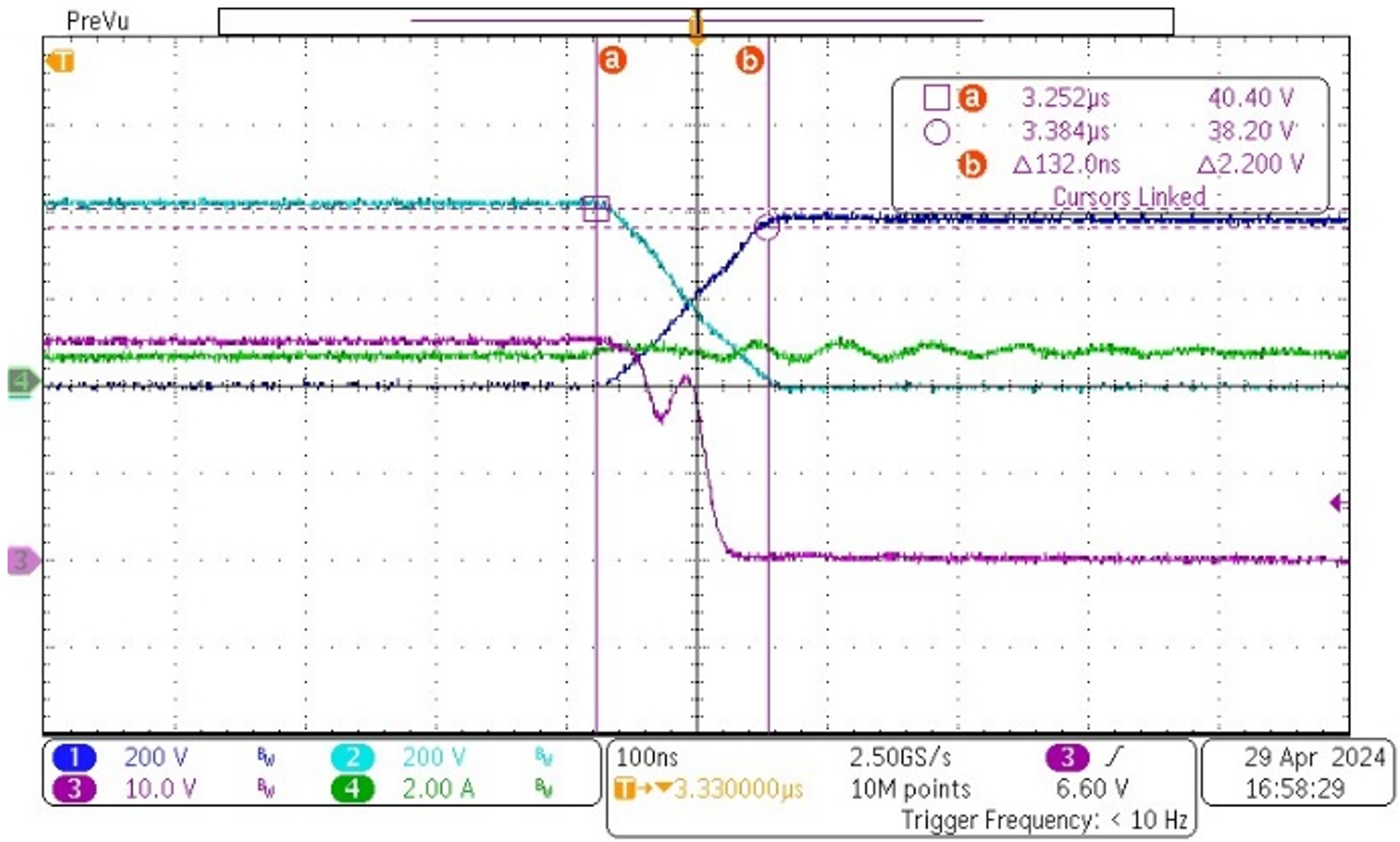

PMP41037 800VIN, Forward Operating With 0A Load (Zoom in at Falling Edge)

Figure 3-3 800VIN, Forward Operating With 0A Load (Zoom in at Falling Edge)
PMP41037 800VIN, Forward Operating With 80A LoadFigure 3-4 800VIN, Forward Operating With 80A Load
PMP41037 800VIN, Forward Operating With 80A Load (Zoom in at Rising Edge)Figure 3-5 800VIN, Forward Operating With 80A Load (Zoom in at Rising Edge)
PMP41037 800VIN, Forward Operating With 80A Load (Zoom in at Falling Edge)Figure 3-6 800VIN, Forward Operating With 80A Load (Zoom in at Falling Edge)
PMP41037 9VIN, Backward Operating With 0.1A LoadFigure 3-7 9VIN, Backward Operating With 0.1A Load
PMP41037 9VIN, Backward Operating With 0.1A Load (Zoom in at Rising Edge)Figure 3-8 9VIN, Backward Operating With 0.1A Load (Zoom in at Rising Edge)
PMP41037 9VIN, Backward Operating With 0.1A Load (Zoom in at Falling Edge)Figure 3-9 9VIN, Backward Operating With 0.1A Load (Zoom in at Falling Edge)
PMP41037 9VIN, Backward Operating With 1.4A LoadFigure 3-10 9VIN, Backward Operating With 1.4A Load
PMP41037 9VIN, Backward Operating With 1.4A Load (Zoom in at Rising Edge)Figure 3-11 9VIN, Backward Operating With 1.4A Load (Zoom in at Rising Edge)
PMP41037 9VIN, Backward Operating With 1.4A Load (Zoom in at Falling Edge)Figure 3-12 9VIN, Backward Operating With 1.4A Load (Zoom in at Falling Edge)
