2.4 Thermal Image

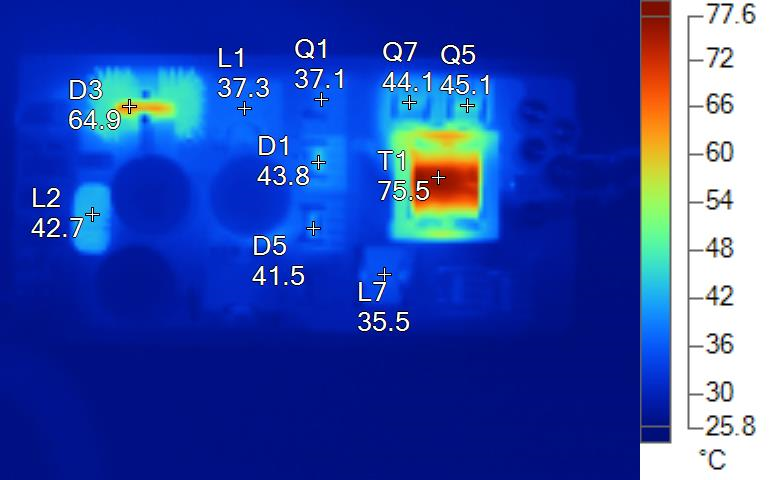

Figure 2-6 and Table 2-7 show the thermal picture of the converter supplied at 115 VAC and 400 Hz, taken after 30 minutes soak time, at 25°C ambient temperature.

The board runs at full load with a fan, placed on the side (DC/DC output).

GUID-20220530-SS0I-CGVR-HDGN-XNH2RFRQQ399-low.pngFigure 2-6 Thermal Image, 30 Minutes, Full Load
Table 2-7 Main Image Markers
Name Temperature Emissivity Background

D3

64.9°C

0.96

25.5°C

L2

42.7°C

0.96

25.5°C

L1

37.3°C

0.96

25.5°C

Q1

37.1°C

0.96

25.5°C

D1

43.8°C

0.96

25.5°C

D5

41.5°C

0.96

25.5°C

L7

35.5°C

0.96

25.5°C

T1

75.5°C

0.96

25.5°C

Q5

45.1°C

0.96

25.5°C

Q7

44.1°C

0.96

25.5°C
