2.4 Thermal Images

The following photos show the thermal images for this reference design.

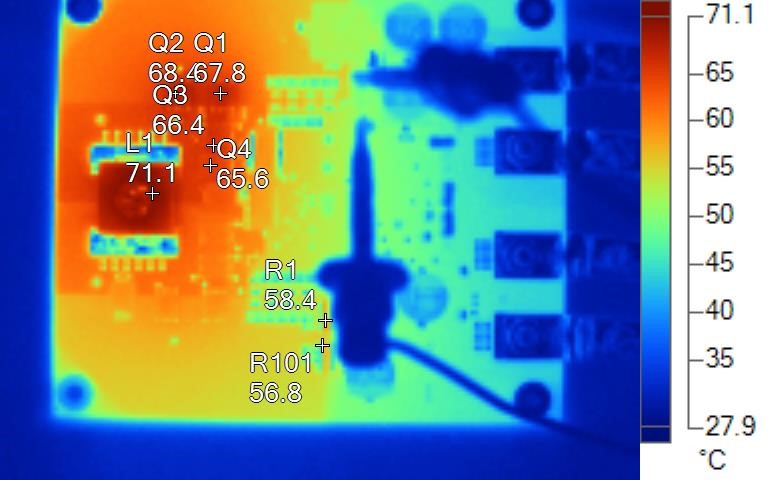

GUID-20220303-SS0I-KG8X-N2HR-RMPHV1STJNVK-low.jpg Figure 2-6 16-V Input Voltage and 30-A Output Current
Name Temperature

L1

71.1°C

Q1

67.8°C

Q2

68.4°C

Q3

66.4°C

Q4

65.6°C

R1

58.4°C

R101

56.8°C

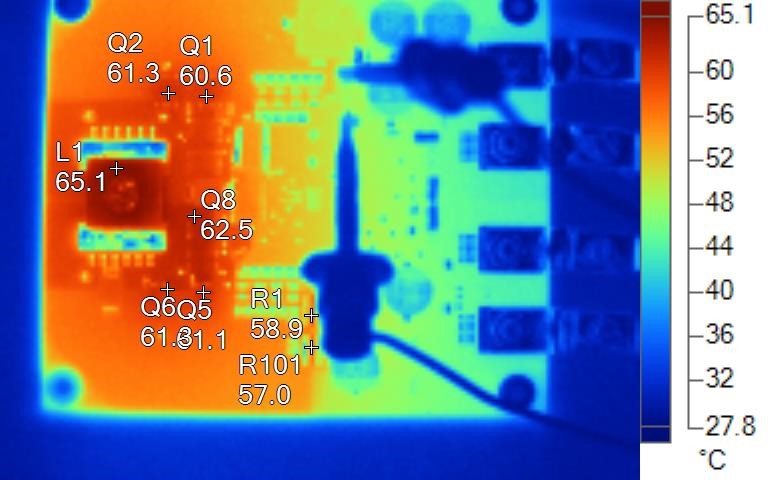

GUID-20220303-SS0I-Z5C0-1M6L-8MKCSKNVRFM6-low.jpg Figure 2-7 12-V Input Voltage and 30-A Output Current
Name Temperature

L1

65.1°C

Q1

60.6°C

Q2

61.3°C

Q5

61.1°C

Q6

61.3°C

Q8

62.5°C

R1

58.9°C

R101

57.0°C

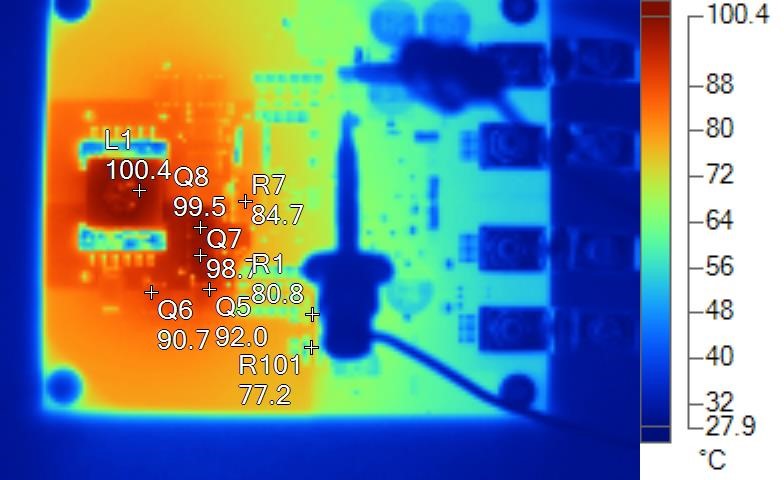

GUID-20220303-SS0I-DQ6Z-VQS6-1B6S960C8QPM-low.jpg Figure 2-8 9-V Input Voltage and 30-A Output Current
Name Temperature

L1

100.4°C

Q5

92.0°C

Q6

90.7°C

Q7

98.7°C

Q8

99.5°C

R1

80.8°C

R101

77.2°C

R7

84.7°C

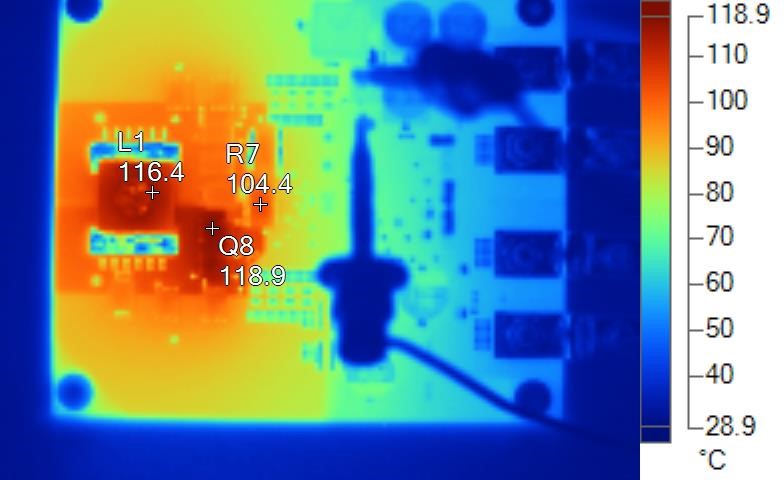

GUID-20220303-SS0I-D9W2-0FMG-4WV1WBJFXTQZ-low.jpg Figure 2-9 5.5-V Input Voltage and 20-A Output Current (After Around 3 minutes)
Name Temperature

Q8

118.9°C

L1

116.4°C

R7

104.4°C
