3 Sample Application Overview

This demonstration lets you to evaluate TI's CC256x Bluetooth device with the STM3240G-EVAL platform. The CC256x+ STM3240G-EVAL Bluetooth applications offer a rich out-of-box experience. These applications let you use a console to send Bluetooth commands, set up a Bluetooth device to accept connections, connect to a remote Bluetooth device, and communicate through Bluetooth. This demonstration includes one sample application for each profile with simple command-line sample applications to speed development. See Figure 1 for an overview of the demonstration.

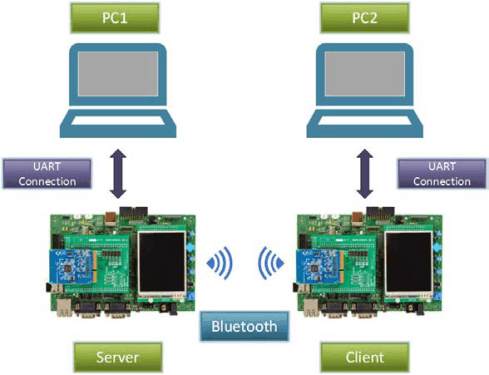

CC256x demo_example_overview_swru428.gifFigure 1. Overview of Demonstration
