Power up

To verify the startup behavior, connect the oscilloscope to the evaluation module:

  • Channel 1 - Input Voltage (Test Point Label VIN)
  • Channel 2 - Output Voltage (Test Point Label VOUT)
  • Channel 3 - DGATE Voltage (Test Point Label DGATE)
  • Channel 4 - HGATE Voltage (Test Point Label HGATE)
Set the load to 200 mA, trigger to Channel 1 rising and turn ON the power supply. Startup behavior of LM74800EVM-CD is captured in Figure 5-2.

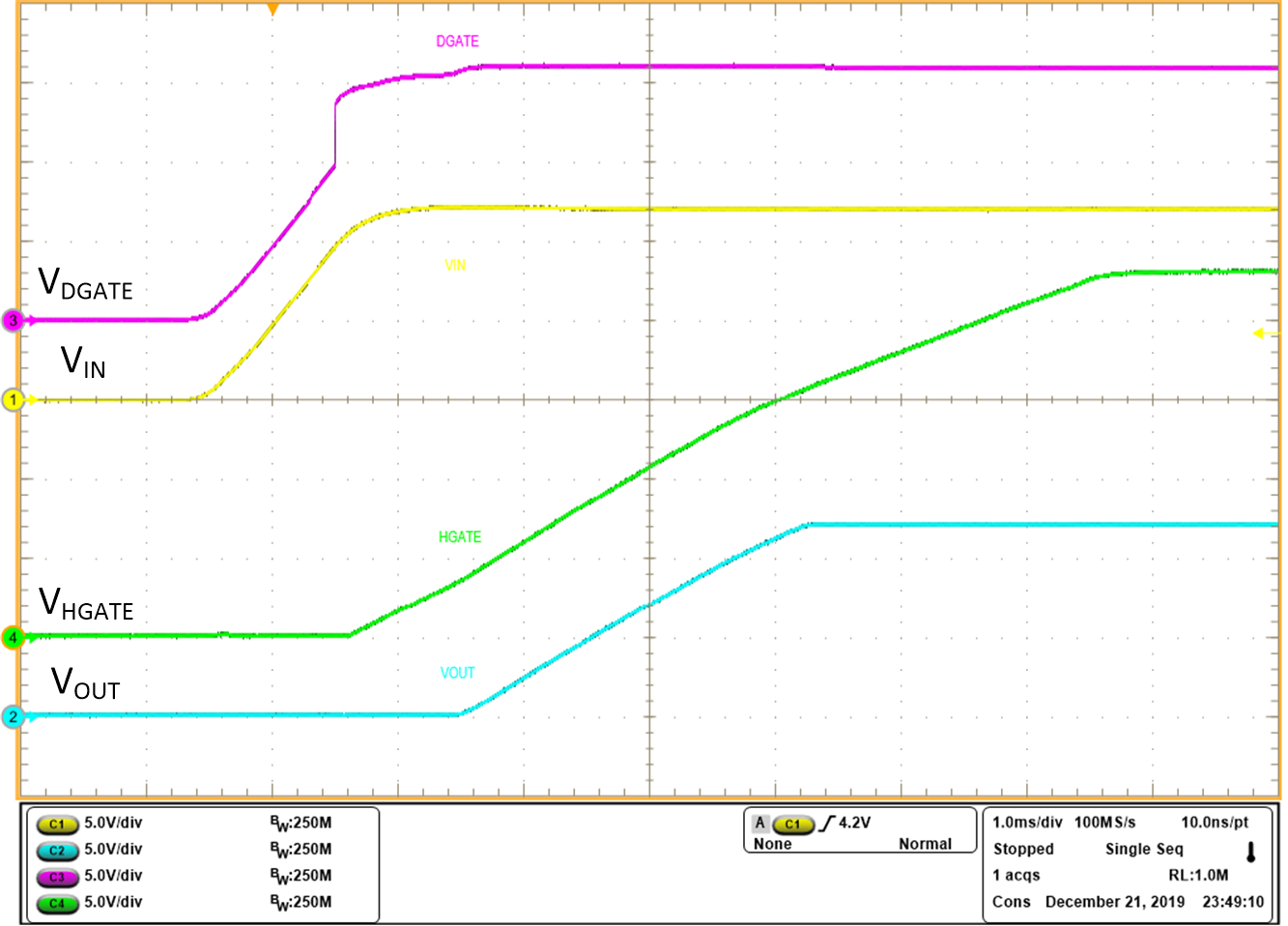

GUID-97952C7C-9FFA-4A0A-95ED-D461A5C29F1A-low.pngFigure 5-2 Power Up: DGATE and HGATE

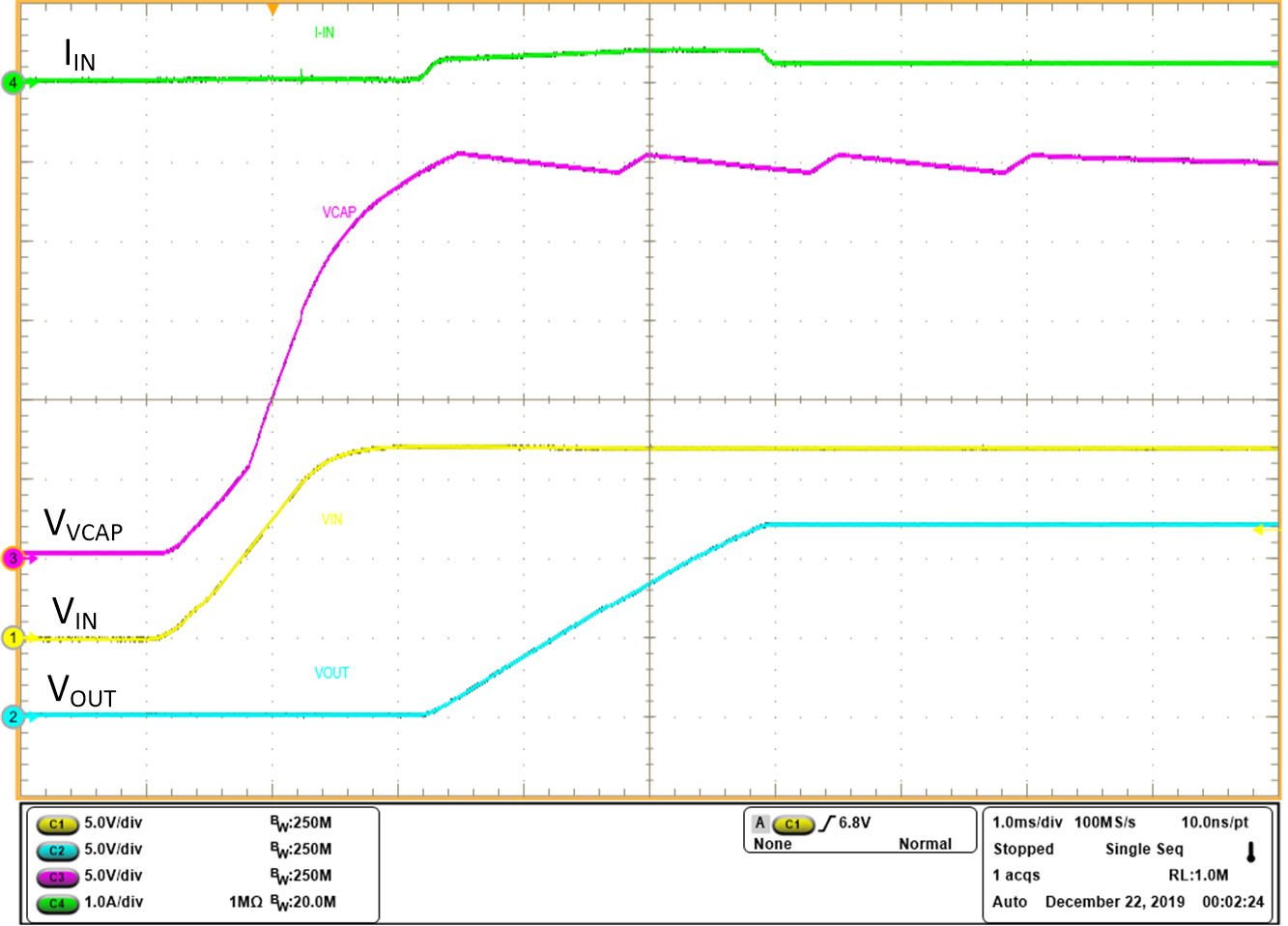

GUID-02DC276E-FB83-4DC7-BB5A-AC0E858B4DEB-low.pngFigure 5-3 Power Up: Charge Pump and Inrush Current

Additional startup information is captured in Figure 5-3. Channel 3 captures the charge pump voltage on VCAP pin during startup. Charge pump turns on when POR threshold on VIN is reached and builds up to 13.5 V above VIN.
