2.2 Efficiency

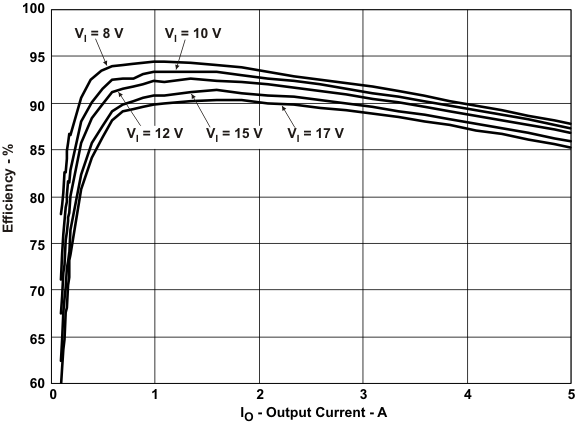

The efficiency of this EVM peaks at a load current of about 1.1 A and then decreases as the load current increases towards full load. Figure 2-1 shows the efficiency for the TPS54521EVM-607 at an ambient temperature of 25°C.

GUID-54E9891E-6E2F-4297-94BF-8D15D93DE9EA-low.gifFigure 2-1 TPS54521EVM-607 Efficiency

Figure 2-2 shows the efficiency for the TPS54521EVM-607 at lower output currents below 0.10 A at an ambient temperature of 25°C.

GUID-B97AC8BA-CEDE-47F8-A4E1-9C782BF58D9D-low.gifFigure 2-2 TPS54521EVM-607 Low Current Efficiency

The efficiency may be lower at higher ambient temperatures, due to temperature variation in the drain-to-source resistance of the internal MOSFETs.
