PCB Drawings

Figure 8 shows component placement of the EVAL Board. Figure 9 and Figure 10 shows PCB layout images.

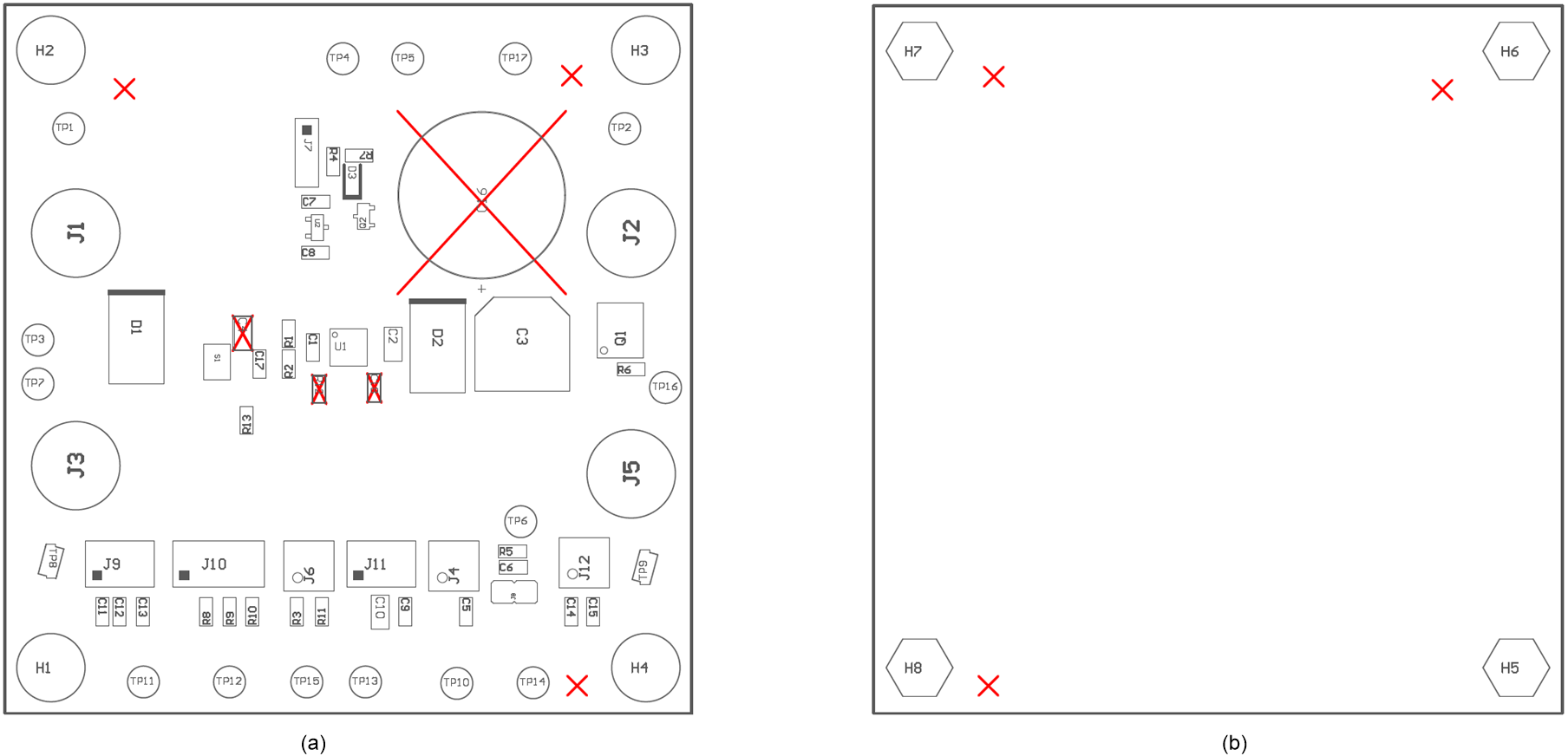

TPS25980 Assembly-1.gifFigure 8. TPS25980EVM Board (a) Top Assembly (b) Bottom Assembly
TPS25980 Top-bottom-layer-1.gifFigure 9. TPS25980EVM Board (a) Top Layer (b) Bottom Layer

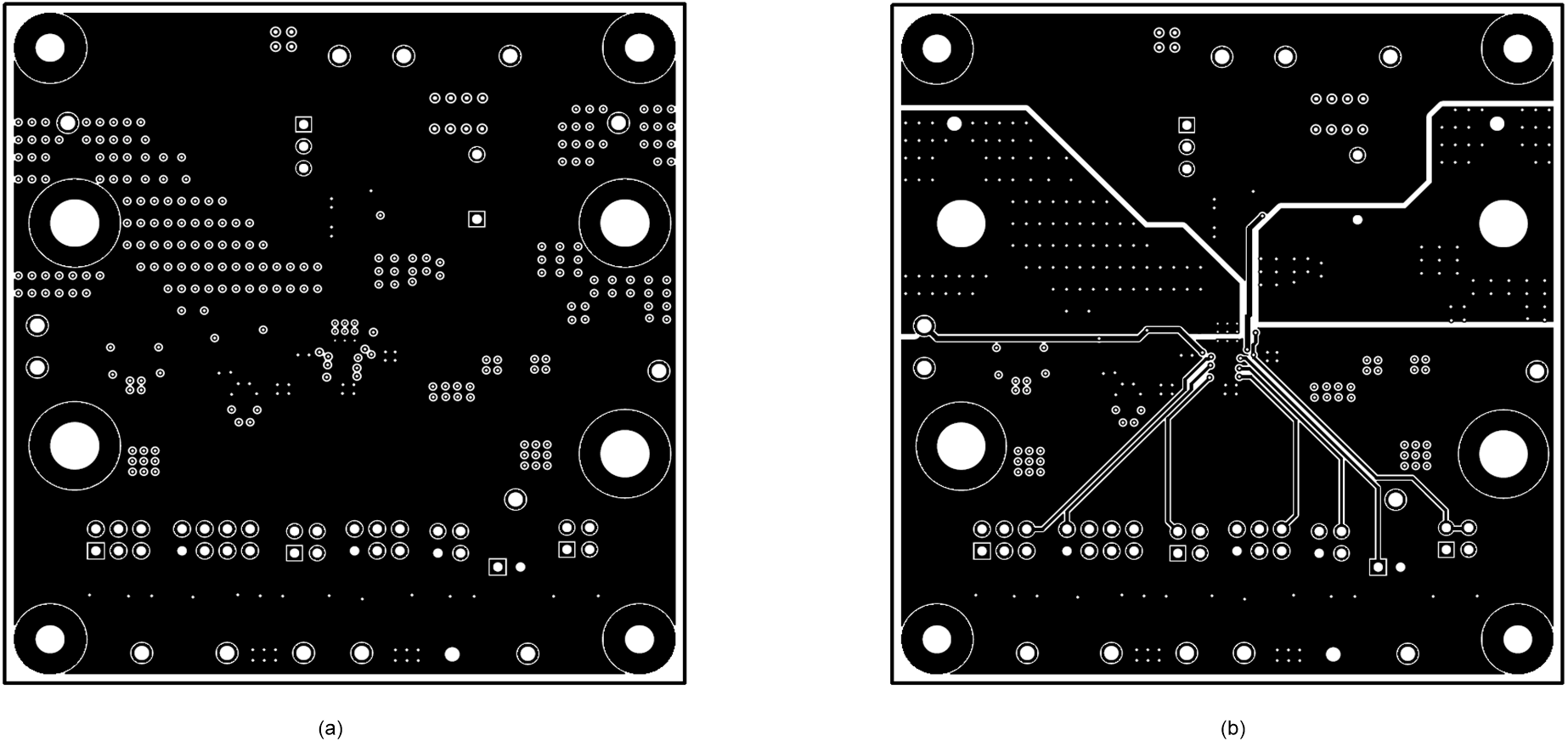

TPS25980 Inner-layer-1.gifFigure 10. TPS25980EVM Board (a) Inner Signal Layer (b) Inner Routing Layer
