4.10 Shut-Down

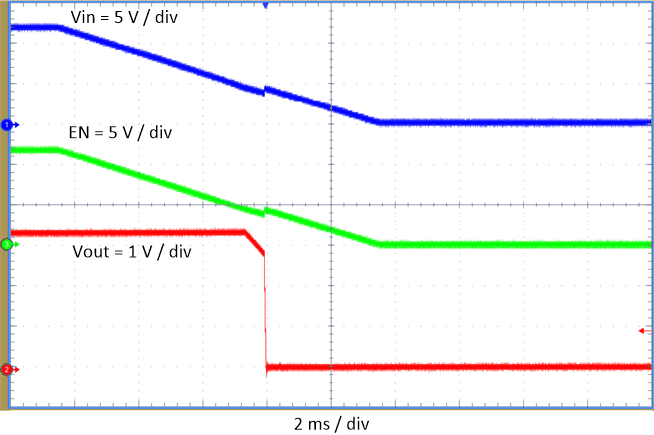

The TPS563231EVM-032 shut-down waveform relative to VIN is shown in Figure 4-12. Load = 2 Ω resistive.

GUID-389A68CE-5D63-422C-945F-19400B3CCC0C-low.gifFigure 4-12 TPS563231EVM-032 Shut-Down Relative to VIN

The TPS563231EVM-032 shut-down waveform relative to EN is shown in Figure 4-13. Load = 2 Ω resistive.

GUID-EE20EA2C-40E8-453D-9587-D35FF18263A2-low.gifFigure 4-13 TPS563231EVM-032 Shut-Down Relative to EN
