5.3 PCB 3D render

Figure 5-6 and Figure 5-7 show the 3D renders of the PCB.

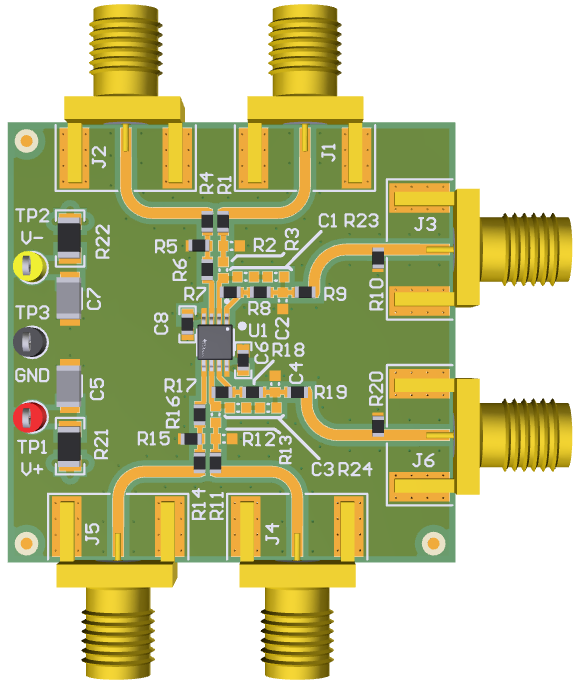

GUID-20200915-CA0I-J3WN-4WMG-VVZK3SS4M95W-low.pngFigure 5-6 OPA2863DGKEVM 3D Render - Top

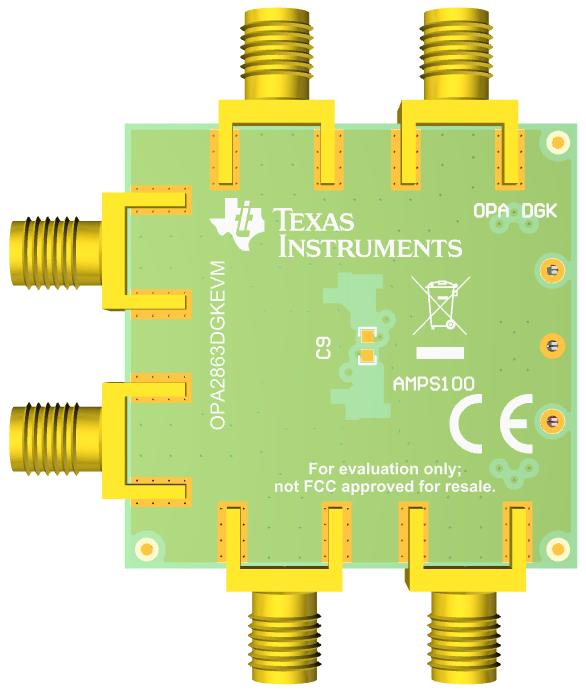

GUID-20200915-CA0I-PVXR-CWTT-FGKFJ2NW6G1N-low.pngFigure 5-7 OPA2863DGKEVM 3D Render - Bottom
