2.1.2 Card Emulation Type B

The frame format for Data Exchange Protocol (DEP) packets at 106 kbps during anticollision (see Figure 5) is based on the NFC-B technology specifications in NFCForum-TS-DigitalProtocol-1.0 or the ISO 14443-3 specifications. The Type B frame format must always include the two CRC bytes.

fig05_frame_format_type_b.gifFigure 5. Frame Format for Card Emulation Type B Commands During Anticollision

Initially, when configured for Type 4B tag platform emulation, the TRF7970A must receive with CRC.

After receiving commands from the reader/writer, the following registers must be modified before and after the anticollision is completed:

  1. ISO Control register (0x01) → 0x25 (ISO 14443B 106 kbps, receive with CRC, after anticollision is completed).
  2. Send packet:
    1. Reset FIFO (0x0F) direct command
    2. Transmission (0x11) with CRC direct command
    3. TX Length Byte 1 and 2 (0x1D and 0x1E) registers
    4. Write the response to the FIFO

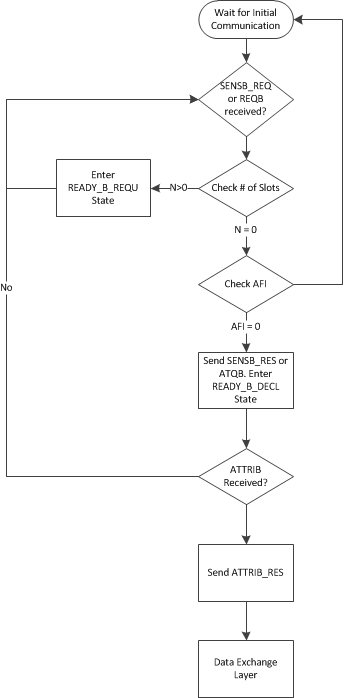

Figure 6 shows the Type B anticollision flowchart. The TRF7970A supports only 106 kbps for card emulation of Type B.

fig06_type_b_anticoll.gifFigure 6. Card Emulation Type B Anticollision
