2 TUSB216EVM Board Description

The TUSB216IEVM is designed to provide easy evaluation of the redriver device for various types of applications. The TUSB216IEVM is also meant to serve as a reference design to show a practical example of how to use the device in a mass-production system.

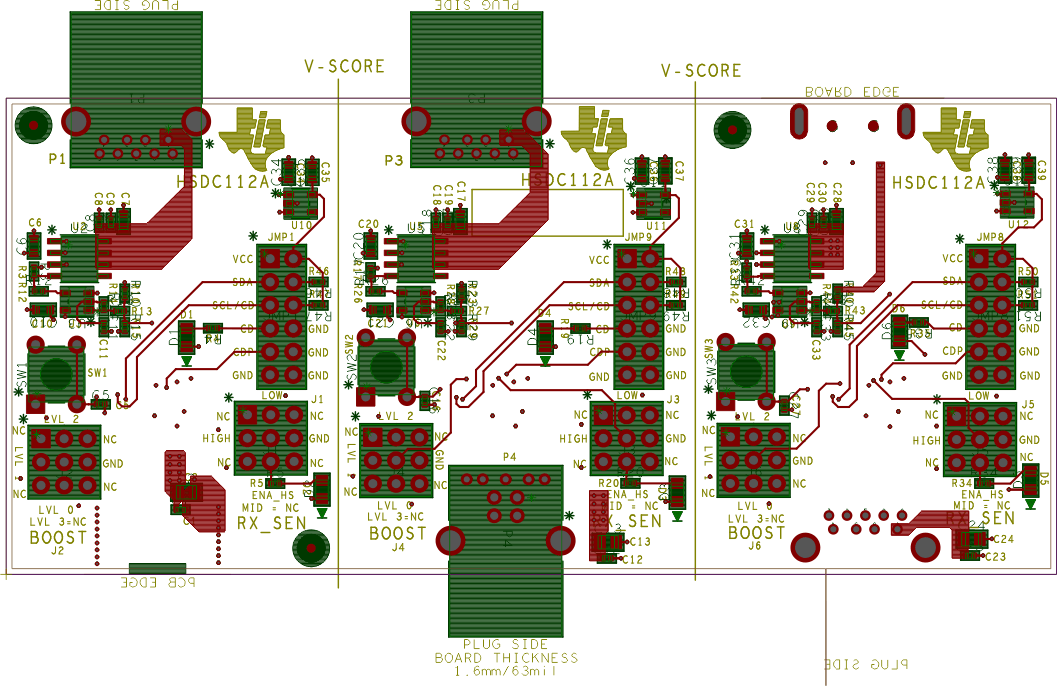

GUID-20210224-CA0I-LFCN-CR0F-JZ77MCJKJ6V2-low.gifFigure 2-1 TUSB216IEVM
