Step 2: Configuration Selection

Select the desired configurations for the binary file. Multiple configurations of the tuning data can be generated. For example, a tuning data for music playing and another for notification chime. Once it is complete, please select “Next” to continue.

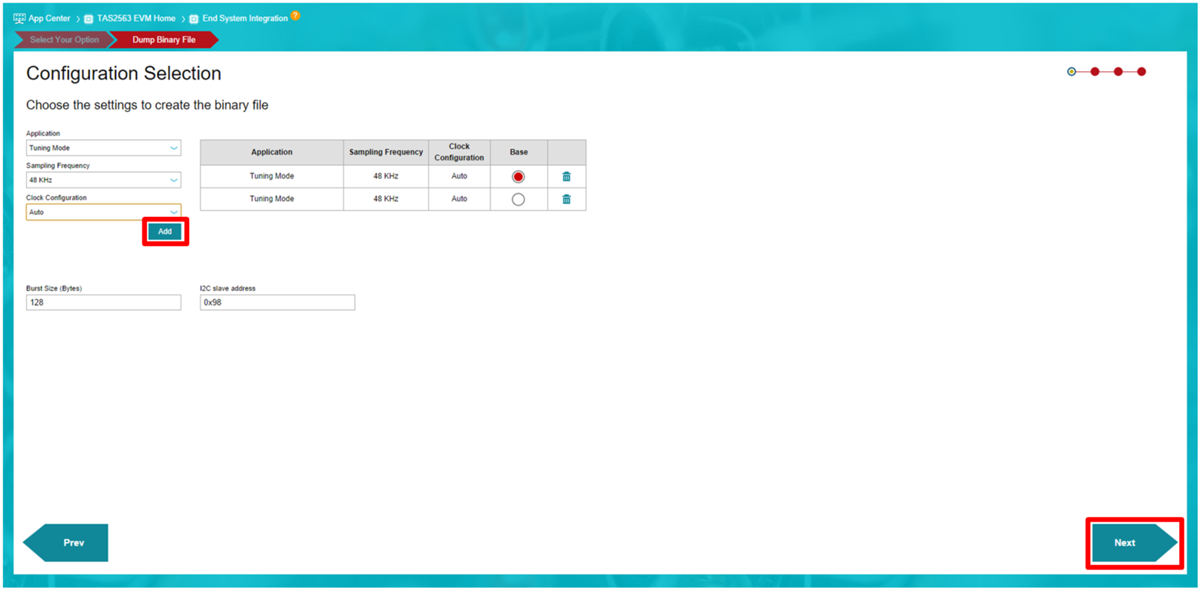

GUID-20200721-CA0I-FR2Q-WQ0L-J6RRQMXDLMMC-low.pngFigure 1-3 Binary File Configuration.
