7.3.4 Two-Wire Timing Diagrams

TMP1075 Two-Wire Timing Diagram for Write Word FormatFigure 7-3 Two-Wire Timing Diagram for Write Word Format
TMP1075 Two-Wire Timing Diagram for Write Single Byte FormatFigure 7-4 Two-Wire Timing Diagram for Write Single Byte Format
TMP1075 Two-Wire Timing Diagram for Read Word FormatFigure 7-5 Two-Wire Timing Diagram for Read Word Format

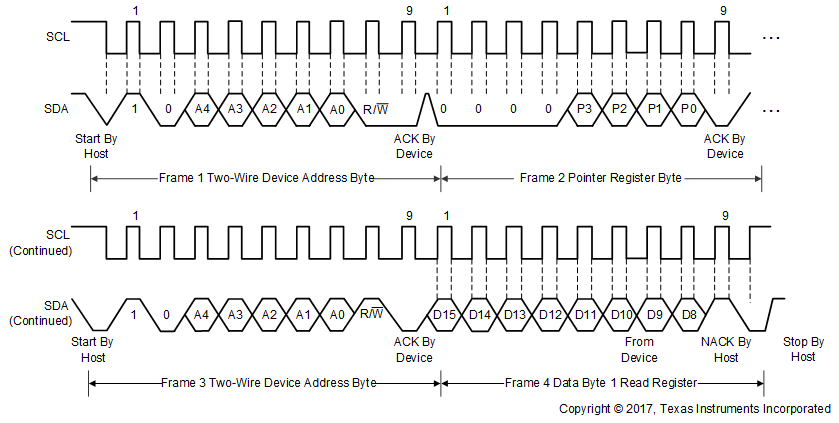

TMP1075 Two-Wire Timing Diagram for Read Single Byte FormatFigure 7-6 Two-Wire Timing Diagram for Read Single Byte Format
TMP1075 General-Call Reset Command Timing DiagramFigure 7-7 General-Call Reset Command Timing Diagram

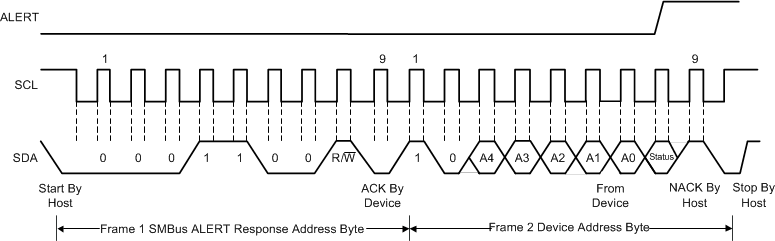

TMP1075 Timing Diagram for SMBus AlertFigure 7-8 Timing Diagram for SMBus Alert
