7.6 Typical Characteristics

at TA = 25°C, VS = ±15 V, RL = 10 kΩ, VREF = 0 V, and G = 1 (unless otherwise noted)
INA826 G026_bos562.gif
Figure 1. Typical Distribution of Input Offset Voltage

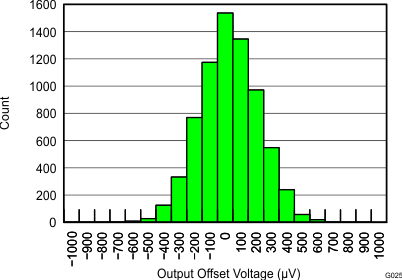

INA826 G025_bos562.gif
Figure 3. Typical Distribution of Output Offset Voltage
INA826 G027_bos562.gif
Figure 5. Typical Distribution of Input Bias Current
INA826 G052_bos562.png
G = 1
Figure 7. Typical Gain Error Drift Distribution
INA826 G035_bos562_Rev 1.png
Single supply
Figure 9. Input Common-Mode Voltage vs Output Voltage

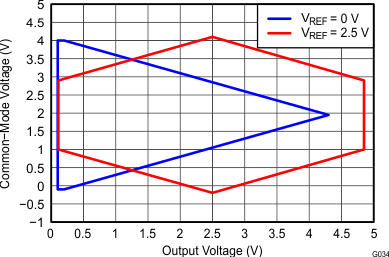

INA826 G034_bos562.gif
Single supply
Figure 11. Input Common-Mode Voltage vs Output Voltage
INA826 G039_bos562.gif
Dual supply
Figure 13. Input Common-Mode Voltage vs Output Voltage
INA826 G040_bos562.gif
Dual supply
Figure 15. Input Common-Mode Voltage vs Output Voltage
INA826 G065_bos562.gif
G = 1
Figure 17. Input Overvoltage vs Input Current
INA826 G001_bos562.png
Figure 19. CMRR vs Frequency (RTI)
INA826 G003_bos562.png
Figure 21. Positive PSRR vs Frequency (RTI)

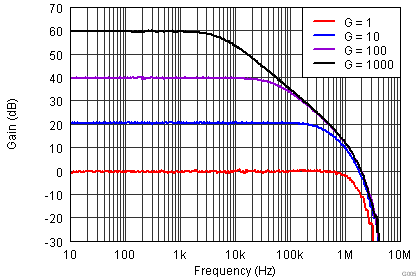

INA826 G005_bos562.png
Figure 23. Gain vs Frequency
INA826 G020_bos562.png
Figure 25. Current Noise Spectral Density vs Frequency (RTI)
INA826 G006_bos562.png
G = 1000
Figure 27. 0.1-Hz to 10-Hz RTI Voltage Noise
INA826 G056_bos562.png
VS = 3.0 V
Figure 29. Input Bias Current vs Common-Mode Voltage
INA826 G033_bos562.png
Figure 31. Input Bias Current vs Temperature

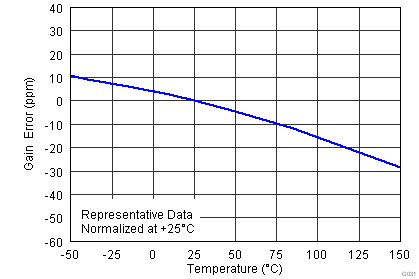

INA826 G031_bos562.png
G = 1
Figure 33. Gain Error vs Temperature
INA826 G032_bos562.png
G = 1
Figure 35. CMRR vs Temperature
INA826 G021_bos562.png
G = 1
Figure 37. Gain Nonlinearity
INA826 G023_bos562.png
G = 100
Figure 39. Gain Nonlinearity
INA826 G057_bos562.png
Figure 41. Offset Voltage vs Negative Common-Mode Voltage
INA826 G059_bos562 Rev2.png
Figure 43. Offset Voltage vs Negative Common-Mode Voltage
INA826 G045_bos562.png
Figure 45. Positive Output Voltage Swing vs Output Current
INA826 G048_bos562.png
Figure 47. Positive Output Voltage Swing vs Output Current
INA826 G014_bos562.png
Figure 49. Large-Signal Frequency Response
INA826 G013_bos562.png
G = 1
Figure 51. Small-Signal Response Over Capacitive Loads
INA826 G010_bos562.png
G = 10, RL = 10 kΩ, CL = 100 pF
Figure 53. Small-Signal Response
INA826 G012_bos562.png
G = 1000, RL = 10 kΩ, CL = 100 pF
Figure 55. Small-Signal Response
INA826 G063_bos562.png
Figure 57. Change in Input Offset Voltage vs Warm-Up Time
INA826 G029_bos562.gif
Figure 2. Typical Distribution of Input Offset Voltage Drift
INA826 G030_bos562.gif
Figure 4. Typical Distribution of Output Offset Voltage Drift
INA826 G028_bos562.gif
Figure 6. Typical Distribution of Input Offset Current
INA826 G051_bos562.png
G > 1
Figure 8. Typical Gain Error Drift Distribution
INA826 G036_bos562 Rev2.png
Single supply
Figure 10. Input Common-Mode Voltage vs Output Voltage
INA826 G037_bos562.gif
Single supply
Figure 12. Input Common-Mode Voltage vs Output Voltage
INA826 G038_bos562.gif
Dual supply
Figure 14. Input Common-Mode Voltage vs Output Voltage
INA826 G041_bos562.gif
Dual supply
Figure 16. Input Common-Mode Voltage vs Output Voltage
INA826 G064_bos562.gif
G = 1
Figure 18. Input Overvoltage vs Input Current
With 10-kΩ Resistance
INA826 G002_bos562.png
Figure 20. CMRR vs Frequency
(RTI, 1-kΩ Source Imbalance)
INA826 G004_bos562.png
Figure 22. Negative PSRR vs Frequency (RTI)
INA826 G019_bos562.png
Figure 24. Voltage Noise Spectral Density
vs Frequency (RTI)
INA826 G007_bos562.png
G = 1
Figure 26. 0.1-Hz to 10-Hz RTI Voltage Noise
INA826 G008_bos562.png
Figure 28. 0.1-Hz to 10-Hz RTI Current Noise
INA826 G055_bos562.png
Figure 30. Input Bias Current vs Common-Mode Voltage
INA826 G053_bos562.png
Figure 32. Input Offset Current vs Temperature
INA826 G054_bos562.png
G > 1
Figure 34. Gain Error vs Temperature
INA826 G043_bos562 Rev 2.png
Figure 36. Supply Current vs Temperature
INA826 G022_bos562.png
G = 10
Figure 38. Gain Nonlinearity
INA826 G024_bos562.png
G = 1000
Figure 40. Gain Nonlinearity
INA826 G058_bos562.png
Figure 42. Offset Voltage vs Positive Common-Mode Voltage
INA826 G060_bos562 Rev2.png
Figure 44. Offset Voltage vs Positive Common-Mode Voltage
INA826 G046_bos562.png
Figure 46. Negative Output Voltage Swing vs Output Current
INA826 G049_bos562.png
Figure 48. Negative Output Voltage Swing vs Output Current
INA826 G061_bos562.png
Figure 50. Settling Time vs Step Size
INA826 G009_bos562.png
G = 1, RL = 1 kΩ, CL = 100 pF
Figure 52. Small-Signal Response
INA826 G011_bos562.png
G = 100, RL = 10 kΩ, CL = 100 pF
Figure 54. Small-Signal Response
INA826 G062_bos562.png
Figure 56. Open-Loop Output Impedance
