Typical Characteristics

Unless otherwise specified VVDD=VHB = 12 V, VHS=VVSS = 0 V, No load on outputs

VHI = VLI = 0 V

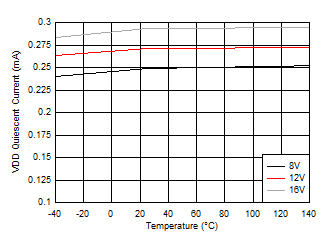

Figure 6-2 VDD Quiescent Current
CL = 0 F VDD =VHB= 12V

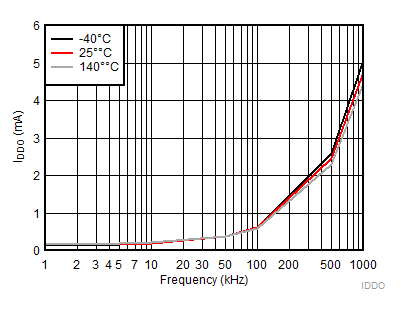

Figure 6-4 VDD Operating Current
VHB=VHS=100V

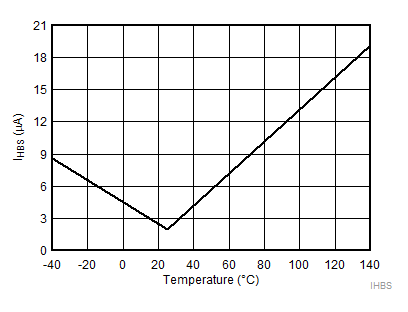

Figure 6-6 HB to VSS Quiescent Current

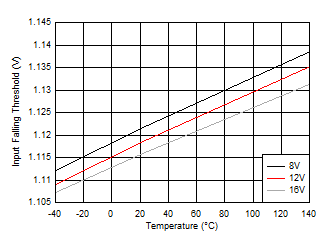

GUID-A37960F0-749D-4163-8F04-44BDB903742A-low.gifFigure 6-8 Input Falling Threshold
GUID-9865D931-080E-4FDE-8219-44E018FA3016-low.gifFigure 6-10 VDD UVLO Threshold
IO=100mA

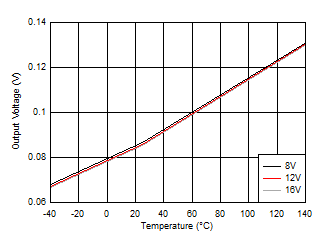

Figure 6-12 LO Low Output Voltage (VLOL)
IO=100mA

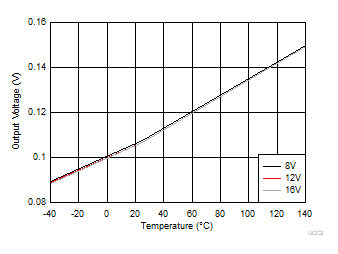

Figure 6-14 HO Low Output Voltage (VHOL)
CL=1800pF

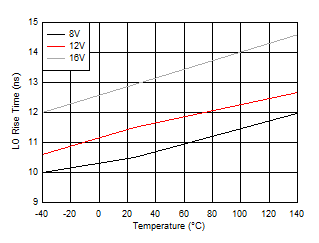

Figure 6-16 LO Rise Time
CL=1800pF

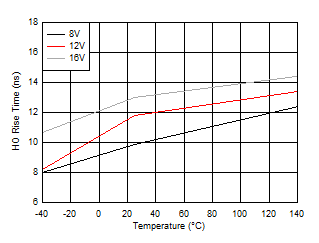

Figure 6-18 HO Rise Time
CL=100nF VDD = 12 V

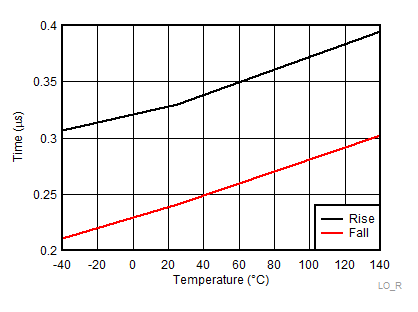

Figure 6-20 LO Rise & Fall Time
CL=No Load

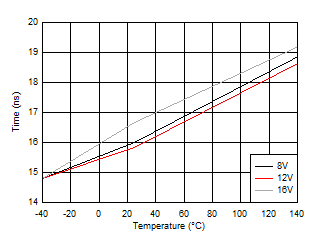

Figure 6-22 HO Rising Propagation Delay (TDHRR)
CL= No Load

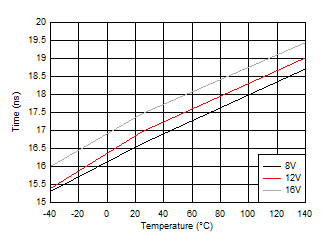

Figure 6-24 LO Rising Propagation Delay (TDLRR)
VHI = VLI = 0 V

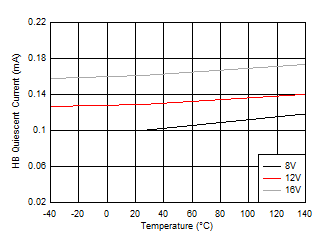

Figure 6-3 HB Quiescent Current
CL = 0 F VDD =VHB= 12V

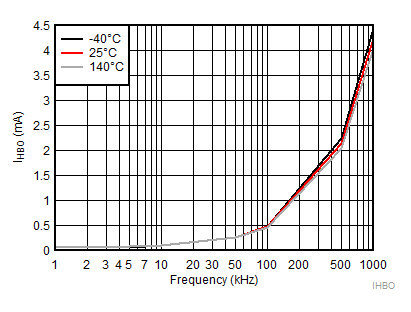

Figure 6-5 HB Operating Current
GUID-505E33E6-C88D-4B5A-9090-B9F49DA16339-low.gifFigure 6-7 Input Rising Threshold

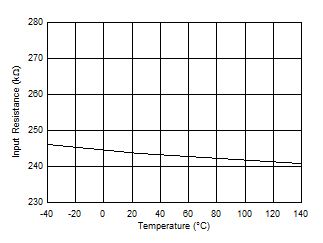

GUID-6082C9A7-CCA7-4E91-BF96-0F196207BDEB-low.gifFigure 6-9 Input Pull-down Resistor
GUID-92FAA77A-B866-4412-B636-9D73177B4017-low.gifFigure 6-11 HB UVLO Threshold
IO=-100mA

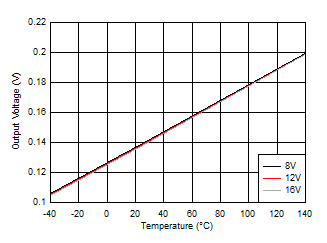

Figure 6-13 LO High Output Voltage (VLOH)
IO=-100mA

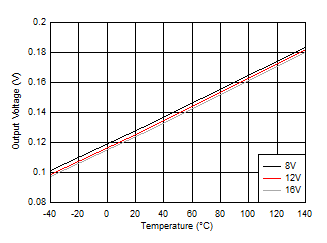

Figure 6-15 HO High Output Voltage (VHOH)
CL=1800pF

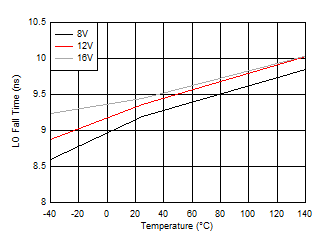

Figure 6-17 LO Fall Time
CL=1800pF

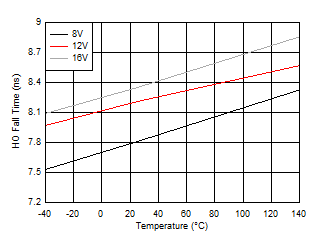

Figure 6-19 HO Fall Time
CL=100nF VDD = 12 V

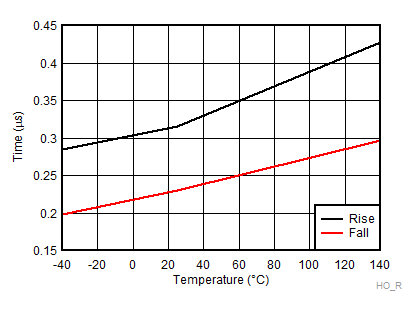

Figure 6-21 HO Rise & Fall Time
CL= No Load

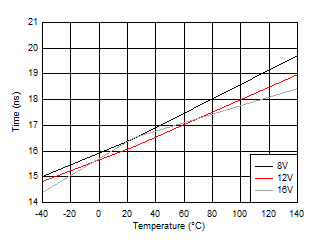

Figure 6-23 HO Falling Propagation Delay (TDHFF)
CL= No Load

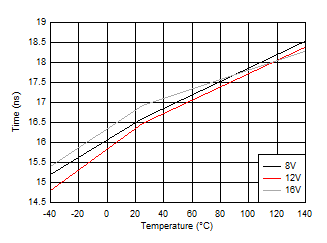

Figure 6-25 LO Falling Propagation Delay (TDLFF)
