Layout Example

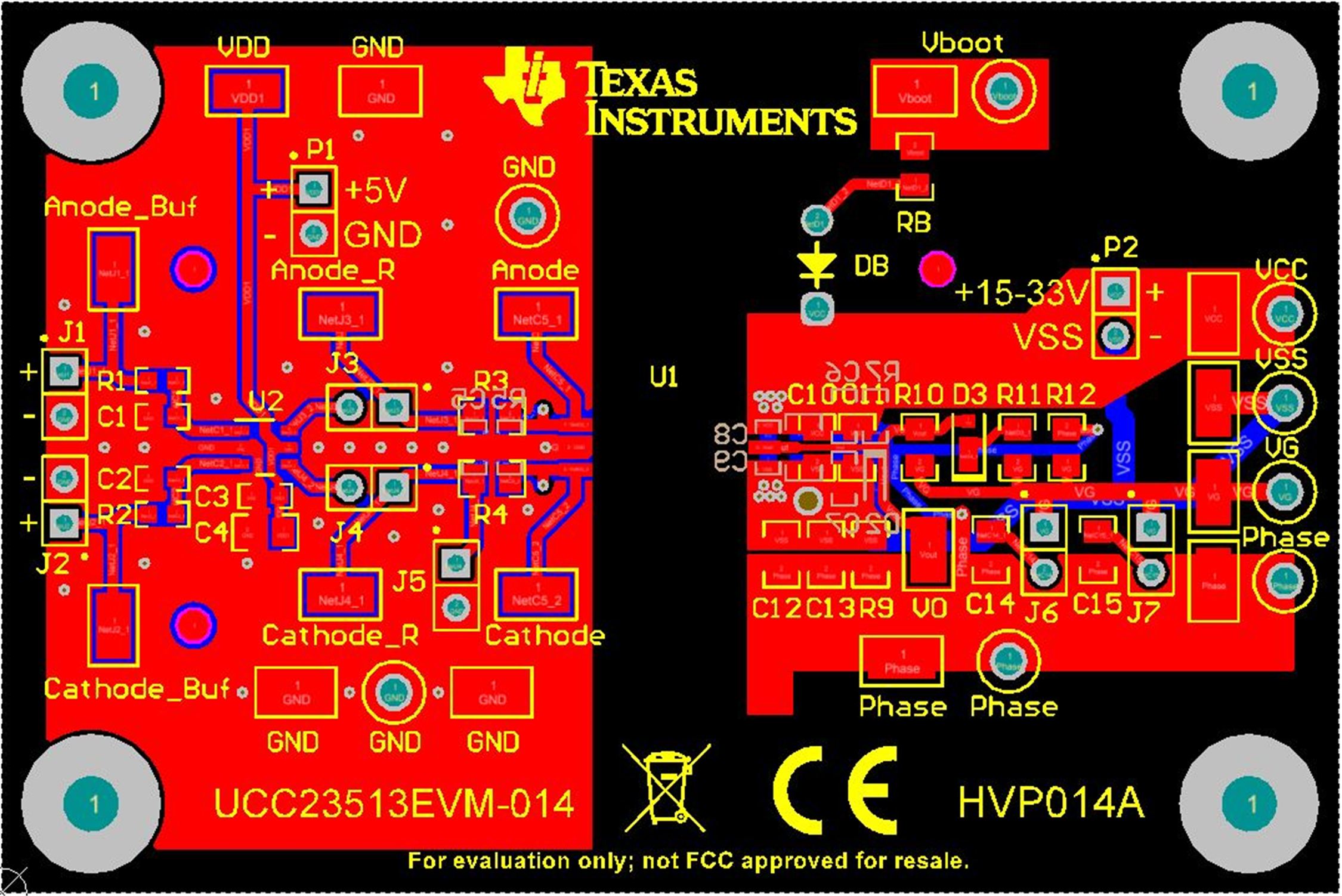

Figure 11-1 shows a PCB layout example with the signals and key components labeled.

No PCB traces or copper are located between the primary and secondary side, which ensures isolation performance.
Figure 11-1 Layout Example

Figure 11-2 and Figure 11-3 show the top and bottom layer traces and copper.

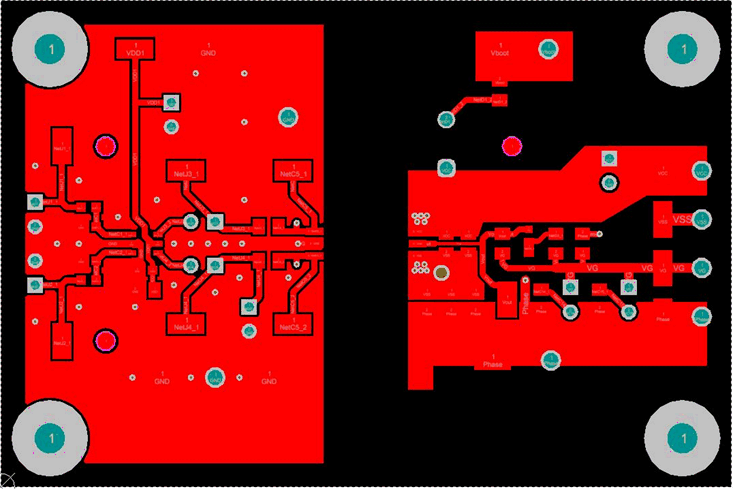

GUID-215ED8F4-FAF0-41A1-B3B2-EC64C04F99B2-low.gifFigure 11-2 Top-Layer Traces and Copper

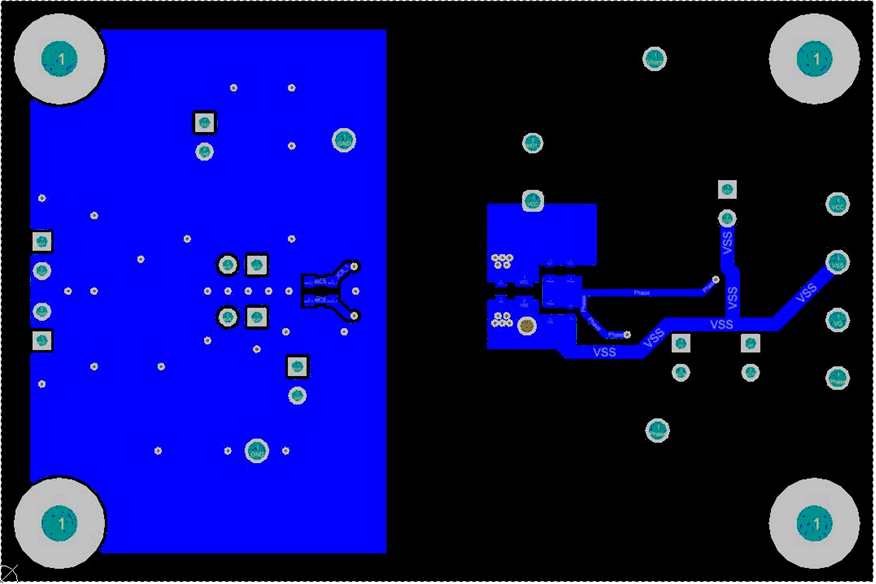

GUID-20945EE7-A312-4F87-8B25-A775156841CE-low.gifFigure 11-3 Bottom-Layer Traces and Copper (Flipped)

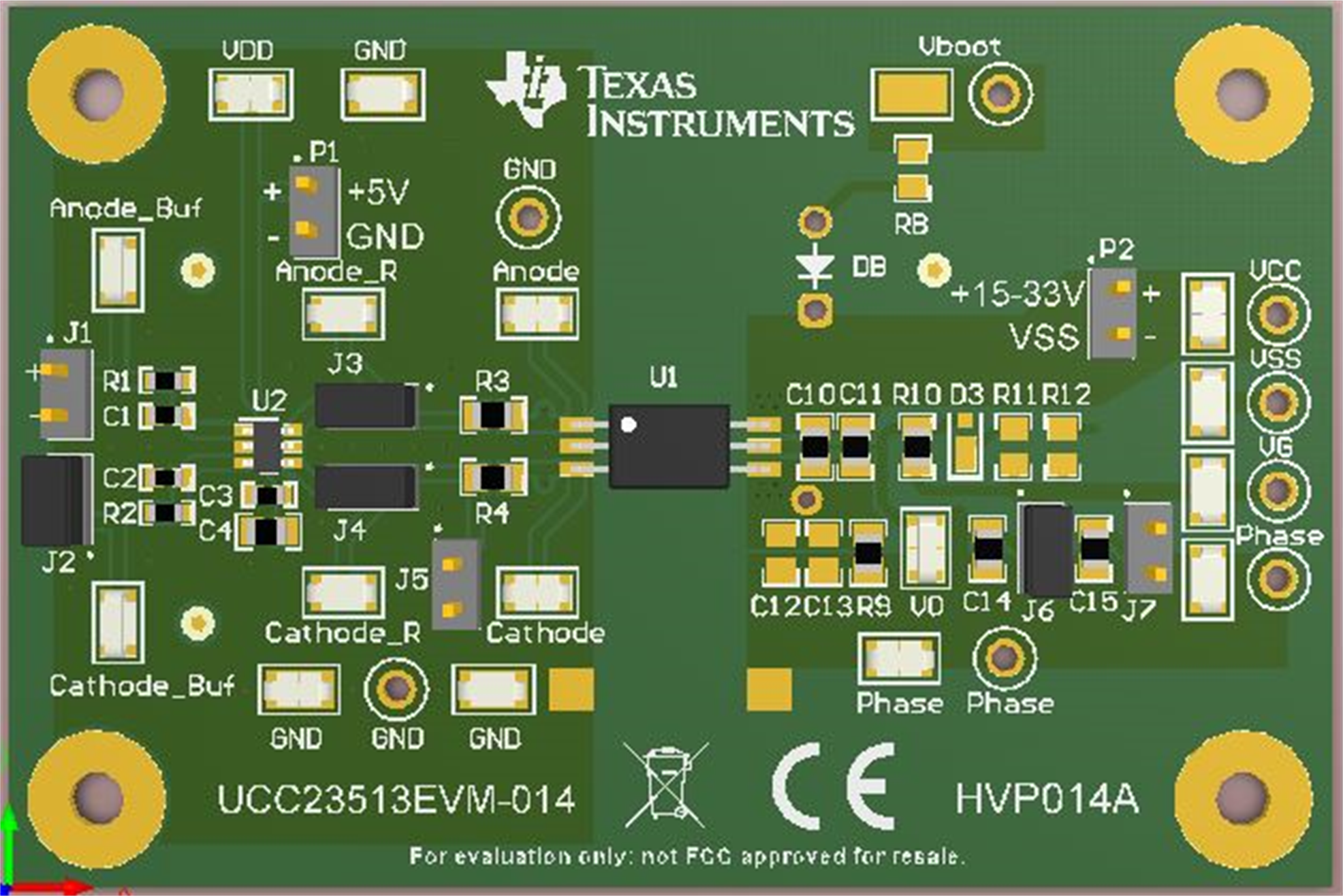

Figure 11-4 shows the 3D layout of the top view of the PCB.

The location of the PCB cutout between primary side and secondary sides ensures isolation performance.
Figure 11-4 3-D PCB View
