8.4.2 Layout Example

Figure 8-6 shows a 2-layer PCB layout example with the signals and key components labeled.

UCC21351-Q1 Layout Example Figure 8-6 Layout Example

Figure 8-7 and Figure 8-8 shows top and bottom layer traces and copper.

Note:

There are no PCB traces or copper between the primary and secondary side, which ensures isolation performance.

PCB traces between the high-side and low-side gate drivers in the output stage are increased to maximize the creepage distance for high-voltage operation, which will also minimize cross-talk between the switching node VSSA (SW), where high dv/dt may exist, and the low-side gate drive due to the parasitic capacitance coupling.

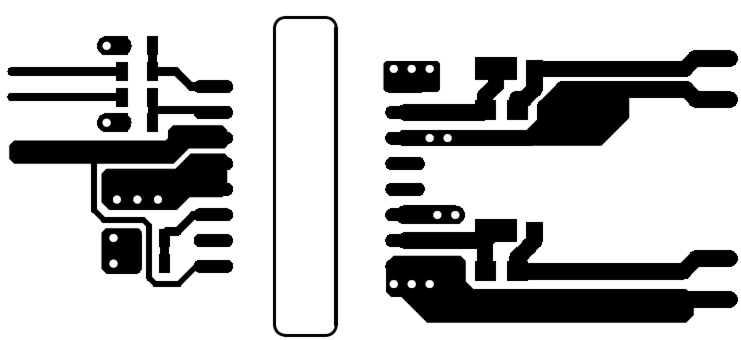

UCC21351-Q1 Top Layer Traces and Copper
Figure 8-7 Top Layer Traces and Copper

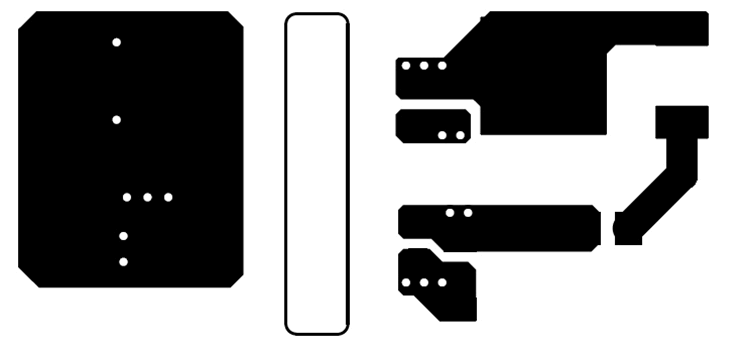

UCC21351-Q1 Bottom Layer Traces and Copper
Figure 8-8 Bottom Layer Traces and Copper

Figure 8-9 and Figure 8-10 are 3D layout pictures with top view and bottom views.

Note:

The location of the PCB cutout is between the primary side and secondary sides, which ensures isolation performance.

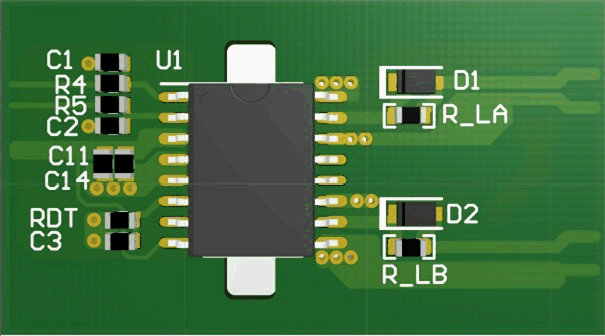

UCC21351-Q1 3-D PCB Top View
Figure 8-9 3-D PCB Top View
UCC21351-Q1 3-D PCB Bottom View
Figure 8-10 3-D PCB Bottom View
