7 Specifications

7.1 Absolute Maximum Ratings(1)(2)

over operating free-air temperature range (unless otherwise noted)
MIN MAX UNIT
V+ Supply voltage range(3) –0.5 6.5 V
VNO
VCOM
Analog voltage range(3)(4)(5) –0.5 V+ + 0.5 V
IK Analog port diode current VNO, VCOM < 0 –50 mA
INO
ICOM
On-state switch current VNO, VCOM = 0 to V+ –200 200 mA
On-state peak switch current(6) –400 400
VI Digital input voltage range(3)(4) –0.5 6.5 V
IIK Digital clamp current VI < 0 –50 mA
I+ Continuous current through V+ 100 mA
IGND Continuous current through GND –100 mA
Tstg Storage temperature range –65 150 °C
(1) Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2) The algebraic convention, whereby the most negative value is a minimum and the most positive value is a maximum
(3) All voltages are with respect to ground, unless otherwise specified.
(4) The input and output voltage ratings may be exceeded if the input and output clamp-current ratings are observed.
(5) This value is limited to 5.5 V maximum.
(6) Pulse at 1-ms duration < 10% duty cycle.

7.2 ESD Ratings

VALUE UNIT
V(ESD) Electrostatic discharge Human-body model (HBM), per AEC Q100-002(1) ±2000 V
Charged-device model (CDM), per AEC Q100-011 ±1000
(1) AEC Q100-002 indicates that HBM stressing shall be in accordance with the ANSI/ESDA/JEDEC JS-001 specification.

7.3 Recommended Operating Conditions

over operating free-air temperature range (unless otherwise noted)
MIN MAX UNIT
VI/O Input/output voltage 0 5.5 V
V+ Supply voltage 0 5.5 V
VI Control Input Voltage 0 5.5 V
TA Operating free-air temperature –40 125 °C

7.4 Thermal Information

THERMAL METRIC(1) TS5A3166-Q1 UNIT
DCK
5 PINS
RθJA Junction-to-ambient thermal resistance 283.1 °C/W
RθJC(top) Junction-to-case (top) thermal resistance 92.2
RθJB Junction-to-board thermal resistance 60.8
ψJT Junction-to-top characterization parameter 1.7
ψJB Junction-to-board characterization parameter 60.0
(1) For more information about traditional and new thermal metrics, see the IC Package Thermal Metrics application report, SPRA953.

7.5 Electrical Characteristics for 5-V Supply(1)

V+ = 4.5 V to 5.5 V, TA = –40°C to 85°C (unless otherwise noted)
PARAMETER SYMBOL TEST CONDITIONS TA V+ 85°C 125°C UNIT
MIN TYP MAX MIN TYP MAX
Analog Switch
Analog signal range VCOM,
VNO
0 V+ 0 V+ V
Peak ON resistance rpeak 0 ≤ VNO ≤ V+,
ICOM = –100 mA,
Switch ON,
See Figure 13
25°C 4.5 V 0.8 1.1 0.8 1.1 Ω
Full 1.2 1.44
ON-state resistance ron VNO = 2.5 V,
ICOM = –100 mA,
Switch ON,
See Figure 13
25°C 4.5 V 0.7 0.9 0.7 0.9 Ω
Full 1 1.2
ON-state resistance
flatness
ron(flat) 0 ≤ VNO ≤ V+,
ICOM = –100 mA,
Switch ON,
See Figure 13
25°C 4.5 V 0.15 0.15 Ω
VNO = 1 V, 1.5 V,
2.5 V,
ICOM = –100 mA,
25°C 0.09 0.15 0.09 0.15
Full 0.15 0.18
NO
OFF leakage current
INO(OFF) VNO = 1 V,
VCOM = 4.5 V,
or
VNO = 4.5 V,
VCOM = 1 V,
Switch OFF,
See Figure 14
25°C 5.5 V –20 4 20 –80 4 80 nA
Full –100 100 –400 400
INO(PWROFF) VNO = 0 to 5.5 V,
VCOM = 5.5 V to 0,
25°C 0 V –5 0.4 5 –5 0.4 5 μA
Full –15 15 –30 30
COM
OFF leakage current
ICOM(OFF) VCOM = 1 V,
VNO = 4.5 V,
or
VCOM = 4.5 V,
VNO = 1 V,
Switch OFF,
See Figure 14
25°C 5.5 V –20 4 20 –80 4 80 nA
Full –100 100 –400 400
ICOM(PWROFF) VCOM = 5.5 V to 0,
VNO = 0 to 5.5 V,
25°C 0 V –5 0.4 5 –5 0.4 5 μA
Full –15 15 –30 30
NO
ON leakage current
INO(ON) VNO = 1 V,
VCOM = Open,
or
VNO = 4.5 V,
VCOM = Open,
Switch ON,
See Figure 15
25°C 5.5 V –2 0.3 2 –80 0.3 80 nA
Full –20 20 –400 400
COM
ON leakage current
ICOM(ON) VCOM = 1 V,
VNO = Open,
or
VCOM = 4.5 V,
VNO = Open,
Switch ON,
See Figure 15
25°C 5.5 V –2 0.3 2 –80 0.3 80 nA
Full –20 20 –400 400
Digital Control Inputs (IN)
Input logic high VIH Full 2.4 5.5 2.4 5.5 V
Input logic low VIL Full 0 0.8 0 0.8 V
Input leakage
current
IIH, IIL VI = 5.5 V or 0 25°C 5.5 V –2 0.3 2 nA
Full –20 20 –400 400
Dynamic
Turn-on time tON VCOM = V+,
RL = 50 Ω,
CL = 35 pF,
See Figure 17
25°C 5 V 2.5 4.5 7 2.5 4.5 7 ns
Full 4.5 V to
5.5 V
1.5 7.5 1.5 7.5
Turn-off time tOFF VCOM = V+,
RL = 50 Ω,
CL = 35 pF,
See Figure 17
25°C 5 V 6 9 11.5 6 9 11.5 ns
Full 4.5 V to
5.5 V
4 12.5 4 12.5
Charge injection QC VGEN = 0,
RGEN = 0 ,
CL = 1 nF,
See Figure 20
25°C 5 V 1 1 pC
NO
OFF capacitance
CNO(OFF) VNO = V+ or GND,
Switch OFF,
See Figure 16 25°C 5 V 19 19 pF
COM
OFF capacitance
CCOM(OFF) VCOM = V+ or GND,
Switch OFF,
See Figure 16 25°C 5 V 18 18 pF
NO
ON capacitance
CNO(ON) VNO = V+ or GND,
Switch ON,
See Figure 16 25°C 5 V 35.5 35.5 pF
COM
ON capacitance
CCOM(ON) VCOM = V+ or GND,
Switch ON,
See Figure 16 25°C 5 V 35.5 35.5 pF
Digital input
capacitance
CI VI = V+ or GND, See Figure 16 25°C 5 V 2 2 pF
Bandwidth BW RL = 50 Ω,
Switch ON,
See Figure 18 25°C 5 V 200 200 MHz
OFF isolation OISO RL = 50 Ω,
f = 1 MHz,
Switch OFF,
See Figure 19
25°C 5 V –64 –64 dB
Total harmonic
distortion
THD RL = 600 Ω,
CL = 50 pF,
f = 20 Hz to 20 kHz,
See Figure 21
25°C 5 V 0.005 0.005 %
Supply
Positive supply
current
I+ VI = V+ or GND, Switch ON or OFF 25°C 5.5 V 0.01 0.1 0.01 0.1 μA
Full 0.5 0.8
(1) The algebraic convention, whereby the most negative value is a minimum and the most positive value is a maximum.

7.6 Electrical Characteristics for 3.3-V Supply(1)

V+ = 3 V to 3.6 V, TA = –40°C to 85°C (unless otherwise noted)
PARAMETER SYMBOL TEST CONDITIONS TA V+ 85°C 125°C UNIT
MIN TYP MAX MIN TYP MAX
Analog Switch
Analog signal range VCOM,
VNO
0 V+ 0 V+ V
Peak ON resistance rpeak 0 ≤ VNO ≤ V+,
ICOM = –100 mA,
Switch ON,
See Figure 13
25°C 3 V 1.1 1.5 1.1 1.5 Ω
Full 1.7 2.07
ON-state resistance ron VNO = 2 V,
ICOM = –100 mA,
Switch ON,
See Figure 13
25°C 3 V 1 1.4 1 1.4 Ω
Full 1.5 1.8
ON-state resistance
flatness
ron(flat) 0 ≤ VNO ≤ V+,
ICOM = –100 mA,
Switch ON,
See Figure 13
25°C 3 V 0.3 0.3 Ω
VNO = 2 V, 0.8 V,
ICOM = –100 mA,
25°C 0.09 0.15 0.09 0.15
Full 0.15 0.18
NO
OFF leakage current
INO(OFF) VNO = 1 V,
VCOM = 3 V,
or
VNO = 3 V,
VCOM = 1 V,
Switch OFF,
See Figure 14
25°C 3.6 V –2 0.5 2 –2 0.5 2 nA
Full –20 20 –360 360
INO(PWROFF) VNO = 0 to 3.6 V,
VCOM = 3.6 V to 0,
25°C 0 V –1 0.1 1 –1 0.1 1 μA
Full –5 5 –27 27
COM
OFF leakage current
ICOM(OFF) VCOM = 1 V,
VNO = 3 V,
or
VCOM = 3 V,
VNO = 1 V,
Switch OFF,
See Figure 14
25°C 3.6 V –2 0.5 2 –72 0.5 72 nA
Full –20 20 –360 360
ICOM(PWROFF) VCOM = 3.6 V to 0,
VNO = 0 to 3.6 V,
25°C 0 V –1 0.1 1 –2 0.1 2 μA
Full –5 5 –27 27
NO
ON leakage current
INO(ON) VNO = 1 V,
VCOM = Open,
or
VNO = 3 V,
VCOM = Open,
Switch ON,
See Figure 15
25°C 3.6 V –2 0.2 2 –72 72 nA
Full –20 20 –360 360
COM
ON leakage current
ICOM(ON) VCOM = 1 V,
VNO = Open,
or
VCOM = 3 V,
VNO = Open,
Switch ON,
See Figure 15
25°C 3.6 V –2 0.2 2 –72 72 nA
Full –20 20 –360 360
Digital Control Inputs (IN)
Input logic high VIH Full 2 5.5 2 5.5 V
Input logic low VIL Full 0 0.8 0 0.8 V
Input leakage current IIH, IIL VI = 5.5 V or 0 25°C 3.6 V –2 0.3 2 nA
Full –20 20 –360 360
Dynamic
Turn-on time tON VCOM = V+,
RL = 50 Ω,
CL = 35 pF,
See Figure 17
25°C 3.3 V 2 5 10 2 5 10 ns
Full 3 V to
3.6 V
1.5 11 1.5 11
Turn-off time tOFF VCOM = V+,
RL = 50 Ω,
CL = 35 pF,
See Figure 17
25°C 3.3 V 6.5 9 12 6.5 9 12 ns
Full 3 V to
3.6 V
4 13 4 13
Charge injection QC VGEN = 0,
RGEN = 0,
CL = 1 nF,
See Figure 21
25°C 3.3 V 1 1 pC
NO
OFF capacitance
CNO(OFF) VNO = V+ or GND,
Switch OFF,
See Figure 16 25°C 3.3 V 19 19 pF
COM
OFF capacitance
CCOM(OFF) VCOM = V+ or GND,
Switch OFF,
See Figure 16 25°C 3.3 V 18 18 pF
NO
ON capacitance
CNO(ON) VNO = V+ or GND,
Switch ON,
See Figure 16 25°C 3.3 V 36 36 pF
COM
ON capacitance
CCOM(ON) VCOM = V+ or GND,
Switch ON,
See Figure 16 25°C 3.3 V 36 36 pF
Digital input
capacitance
CI VI = V+ or GND, See Figure 16 25°C 3.3 V 2 2 pF
Bandwidth BW RL = 50 Ω,
Switch ON,
See Figure 18 25°C 3.3 V 200 200 MHz
OFF isolation OISO RL = 50 Ω,
f = 1 MHz,
Switch OFF,
See Figure 19
25°C 3.3 V –64 –64 dB
Total harmonic
distortion
THD RL = 600 Ω,
CL = 50 pF,
f = 20 Hz to 20 kHz,
See Figure 21
25°C 3.3 V 0.01 0.01 %
Supply
Positive supply
current
I+ VI = V+ or GND, Switch ON or OFF 25°C 3.6 V 0.01 0.1 0.01 0.1 μA
Full 0.25 0.7
(1) The algebraic convention, whereby the most negative value is a minimum and the most positive value is a maximum

7.7 Electrical Characteristics for 2.5-V Supply(1)

V+ = 2.3 V to 2.7 V, TA = –40°C to 85°C (unless otherwise noted)
PARAMETER SYMBOL TEST CONDITIONS TA V+ 85°C 125°C UNIT
MIN TYP MAX MIN TYP MAX
Analog Switch
Analog signal range VCOM,
VNO
2.3 V 0 V+ 0 V+ V
Peak ON resistance rpeak 0 ≤ VNO ≤ V+,
ICOM = –100 mA,
Switch ON,
See Figure 13
25°C 2.3 V 1.8 2.4 1.8 2.4 Ω
Full 2.6 3.1
ON-state resistance ron VNO = 2 V,
ICOM = –100 mA,
Switch ON,
See Figure 13
25°C 2.3 V 1.2 2.1 1.2 2.1 Ω
Full 2.4 2.88
ON-state resistance
flatness
ron(flat) 0 ≤ VNO ≤ V+,
ICOM = –100 mA,
Switch ON,
See Figure 13
25°C 2.3 V 0.7 0.7 Ω
VNO = 2 V, 0.8 V,
ICOM = –100 mA,
25°C 0.4 0.6 0.4 0.6
Full 0.6 0.72
NO
OFF leakage current
INO(OFF) VNO = 1 V,
VCOM = 3 V,
or
VNO = 3 V,
VCOM = 1 V,
Switch OFF,
See Figure 14
25°C 2.7 V –5 0.3 5 –64 0.3 64 nA
Full –50 50 –320 320
INO(PWROFF) VNO = 0 to 3.6 V,
VCOM = 3.6 V to 0,
25°C 0 V –2 0.05 2 –2 0.05 2 μA
Full –15 15 –24 24
COM
OFF leakage current
ICOM(OFF) VCOM = 1 V,
VNO = 3 V,
or
VCOM = 3 V,
VNO = 1 V,
Switch OFF,
See Figure 14
25°C 2.7 V –5 0.3 5 –64 0.3 64 nA
Full –50 50 –320 320
ICOM(PWROFF) VCOM = 3.6 V to 0,
VNO = 0 to 3.6 V,
25°C 0 V –2 0.05 2 –2 0.05 2 μA
Full –15 15 –24 24
NO
ON leakage current
INO(ON) VNO = 1 V,
VCOM = Open,
or
VNO = 3 V,
VCOM = Open,
Switch ON,
See Figure 15
25°C 2.7 V –2 0.3 2 –64 64 nA
Full –20 20 –320 320
COM
ON leakage current
ICOM(ON) VCOM = 1 V,
VNO = Open,
or
VCOM = 3 V,
VNO = Open,
Switch ON,
See Figure 15
25°C 2.7 V –2 0.3 2 –64 0.3 64 nA
Full –20 20 –320 320
Digital Control Inputs (IN1, IN2)
Input logic high VIH Full 1.8 5.5 1.8 5.5 V
Input logic low VIL Full 0 0.6 0 0.6 V
Input leakage current IIH, IIL VI = 5.5 V or 0 25°C 2.7 V –2 0.3 2 nA
Full –20 20 –320 320
Dynamic
Turn-on time tON VCOM = V+,
RL = 50 Ω,
CL = 35 pF,
See Figure 17
25°C 2.5 V 2 6 10 2 6 10 ns
Full 2.3 V to 2.7 V 1 12 1 12
Turn-off time tOFF VCOM = V+,
RL = 50 Ω,
CL = 35 pF,
See Figure 17
25°C 2.5 V 4.5 8 10.5 4.5 8 10.5 ns
Full 2.3 V to 2.7 V 3 15 3 15
Charge injection QC VGEN = 0,
RGEN = 0,
CL = 1 nF,
See Figure 21
25°C 2.5 V 4 4 pC
NO
OFF capacitance
CNO(OFF) VNO = V+ or GND,
Switch OFF,
See Figure 16 25°C 2.5 V 19.5 19.5 pF
COM
OFF capacitance
CCOM(OFF) VCOM = V+ or GND,
Switch OFF,
See Figure 16 25°C 2.5 V 18.5 18.5 pF
NO
ON capacitance
CNO(ON) VNO = V+ or GND,
Switch ON,
See Figure 16 25°C 2.5 V 36.5 36.5 pF
COM
ON capacitance
CCOM(ON) VCOM = V+ or GND,
Switch ON,
See Figure 16 25°C 2.5 V 36.5 36.5 pF
Digital input
capacitance
CI VI = V+ or GND, See Figure 16 25°C 2.5 V 2 2 pF
Bandwidth BW RL = 50 Ω,
Switch ON,
See Figure 18 25°C 2.5 V 150 150 MHz
OFF isolation OISO RL = 50 Ω,
f = 1 MHz,
Switch OFF,
See Figure 19
25°C 2.5 V –62 –62 dB
Total harmonic
distortion
THD RL = 600 Ω,
CL = 50 pF,
f = 20 Hz to 20 kHz,
See Figure 21
25°C 2.5 V 0.02 0.02 %
Supply
Positive supply
current
I+ VI = V+ or GND, Switch ON or OFF 25°C 2.7 V 0.001 0.02 0.001 0.02 μA
Full 0.25 0.6
(1) The algebraic convention, whereby the most negative value is a minimum and the most positive value is a maximum

7.8 Electrical Characteristics for 1.8-V Supply(1)

V+ = 1.65 V to 1.95 V, TA = –40°C to 85°C (unless otherwise noted))
PARAMETER SYMBOL TEST CONDITIONS TA V+ 85°C 125°C UNIT
MIN TYP MAX MIN TYP MAX
Analog Switch
Analog signal range VCOM,
VNO
0 V+ 0 V+ V
Peak ON resistance rpeak 0 ≤ VNO ≤ V+,
ICOM = –100 mA,
Switch ON,
See Figure 13
25°C 1.65 V 4.2 25 4.2 25 Ω
Full 30 36
ON-state resistance ron VNO = 2 V,
ICOM = –100 mA,
Switch ON,
See Figure 13
25°C 1.65 V 1.6 3.9 1.6 3.9 Ω
Full 4.0 4.8
ON-state resistance
flatness
ron(flat) 0 ≤ VNO ≤ V+,
ICOM = –100 mA,
Switch ON,
See Figure 13
25°C 1.65 V 2.8 2.8 Ω
VNO = 2 V, 0.8 V,
ICOM = –100 mA,
25°C 4.1 22 4.1 22
Full 27 32.4
NO
OFF leakage current
INO(OFF) VNO = 1 V,
VCOM = 3 V,
or
VNO = 3 V,
VCOM = 1 V,
Switch OFF,
See Figure 14
25°C 1.95 V –5 5 –58 58 nA
Full –50 50 –320 320
INO(PWROFF) VNO = 0 to 3.6 V,
VCOM = 3.6 V to 0,
25°C 0 V –2 2 –2 2 μA
Full –10 10 –22 22
COM
OFF leakage current
ICOM(OFF) VCOM = 1 V,
VNO = 3 V,
or
VCOM = 3 V,
VNO = 1 V,
Switch OFF,
See Figure 14
25°C 1.95 V –5 5 –58 58 nA
Full –50 50 –320 320
ICOM(PWROFF) VCOM = 0 to 3.6 V,
VNO = 3.6 V to 0,
25°C 0 V –2 2 –2 2 μA
Full –10 10 –22 22
NO
ON leakage current
INO(ON) VNO = 1 V,
VCOM = Open,
or
VNO = 3 V,
VCOM = Open,
Switch ON,
See Figure 15
25°C 1.95 V –2 2 –58 58 nA
Full –20 20 –320 320
COM
ON leakage current
ICOM(ON) VCOM = 1 V,
VNO = Open,
or
VCOM = 3 V,
VNO = Open,
Switch ON,
See Figure 15
25°C 1.95 V –2 2 –58 58 nA
Full –20 20 –320 320
Digital Control Inputs (IN1, IN2)
Input logic high VIH Full 1.5 5.5 1.5 5.5 V
Input logic low VIL Full 0 0.6 0 0.6 V
Input leakage current IIH, IIL VI = 5.5 V or 0 25°C 1.95 V –2 0.3 2 nA
Full –20 20 –320 320
Dynamic
Turn-on time tON VCOM = V+,
RL = 50 Ω,
CL = 35 pF,
See Figure 17
25°C 1.8 V 3 9 18 3 9 18 ns
Full 1.65 V to
1.95 V
1 20 1 20
Turn-off time tOFF VCOM = V+,
RL = 50 Ω,
CL = 35 pF,
See Figure 17
25°C 1.8 V 5 10 15.5 5 10 15.5 ns
Full 1.65 V to
1.95 V
4 18.5 4 18.5
Charge injection QC VGEN = 0,
RGEN = 0,
CL = 1 nF,
See Figure 21
25°C 1.8 V 2 2 pC
NO
OFF capacitance
CNO(OFF) VNO = V+ or GND,
Switch OFF,
See Figure 16 25°C 1.8 V 19.5 19.5 pF
COM
OFF capacitance
CCOM(OFF) VCOM = V+ or GND,
Switch OFF,
See Figure 16 25°C 1.8 V 18.5 18.5 pF
NO
ON capacitance
CNO(ON) VNO = V+ or GND,
Switch ON,
See Figure 16 25°C 1.8 V 36.5 36.5 pF
COM
ON capacitance
CCOM(ON) VCOM = V+ or GND,
Switch ON,
See Figure 16 25°C 1.8 V 36.5 36.5 pF
Digital input
capacitance
CI VI = V+ or GND, See Figure 16 25°C 1.8 V 2 2 pF
Bandwidth BW RL = 50 Ω,
Switch ON,
See Figure 18 25°C 1.8 V 150 150 MHz
OFF isolation OISO RL = 50 Ω,
f = 1 MHz,
Switch OFF,
See Figure 19
25°C 1.8 V –62 –62 dB
Total harmonic
distortion
THD RL = 600 Ω,
CL = 50 pF,
f = 20 Hz to 20 kHz
See Figure 21
25°C 1.8 V 0.055 0.055 %
Supply
Positive supply
current
I+ VI = V+ or GND, Switch ON or OFF 25°C 1.95 V 0.001 0.01 0.001 0.01 μA
Full 0.15 0.6
(1) The algebraic convention, whereby the most negative value is a minimum and the most positive value is a maximum

7.9 Typical Characteristics

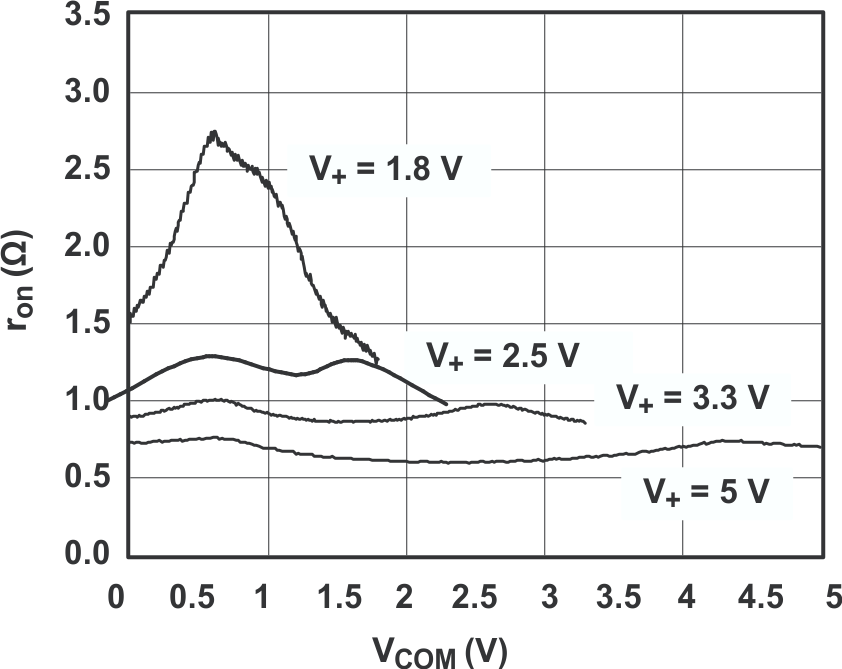

TS5A3166-Q1 grp1_cds187.gif Figure 1. ron vs VCOM

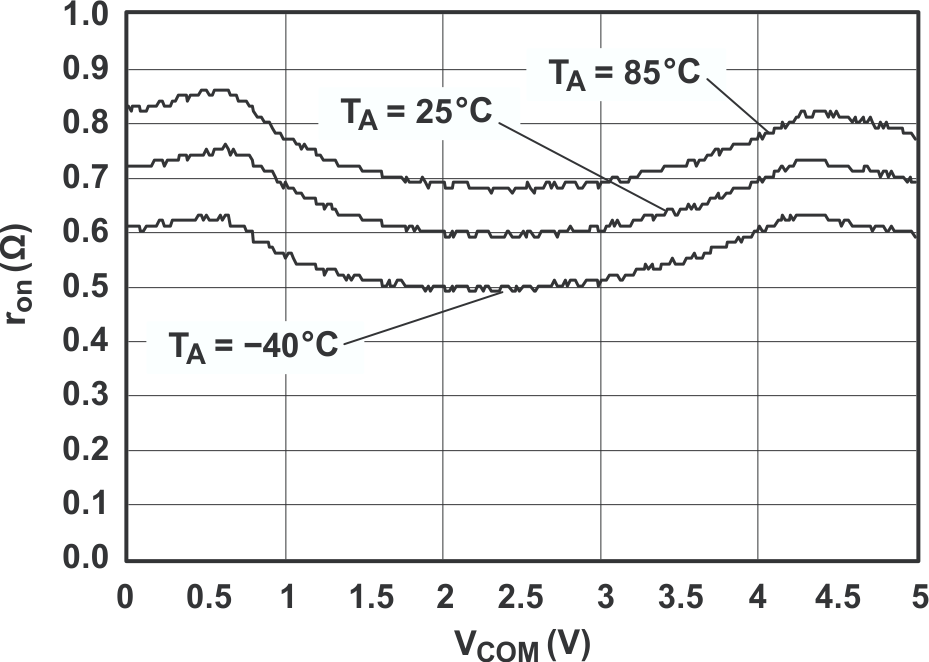

TS5A3166-Q1 grp3_cds187.gif Figure 3. ron vs VCOM (V+ = 5 V)

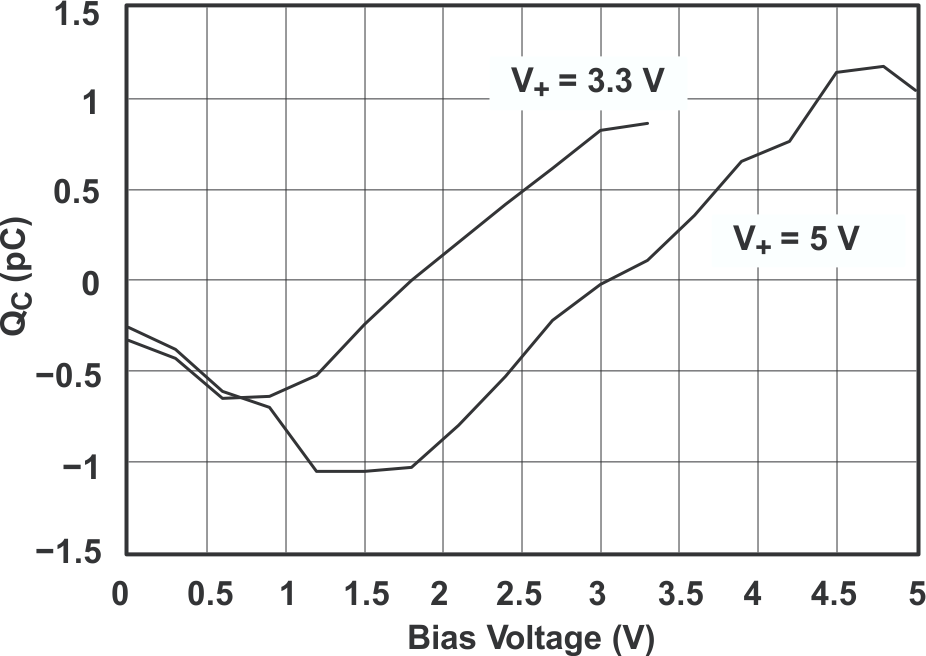

TS5A3166-Q1 grp5_cds187.gif Figure 5. Charge Injection (QC) vs VCOM

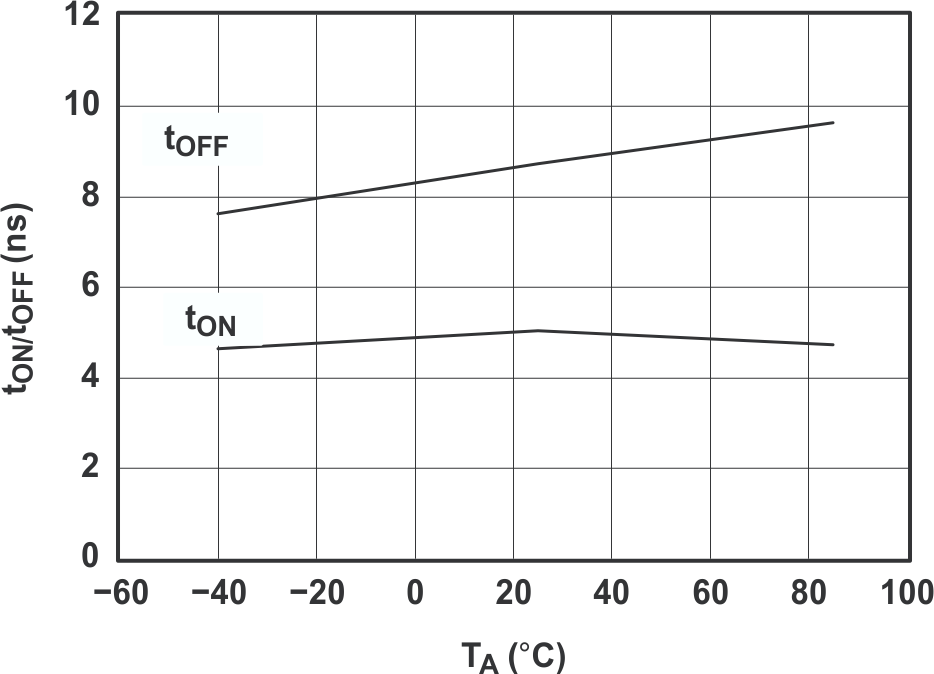

TS5A3166-Q1 grp7_cds187.gif Figure 7. tON and tOFF vs Temperature (V+ = 5 V)

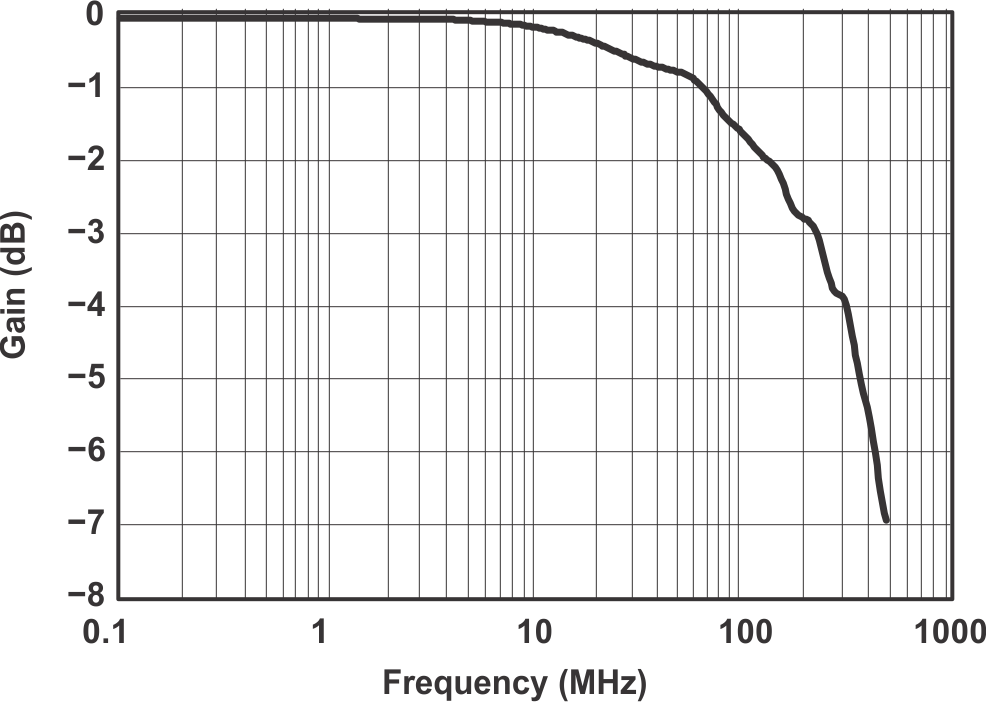

TS5A3166-Q1 grp9_cds187.gif Figure 9. Gain vs Frequency (V+ = 5 V)

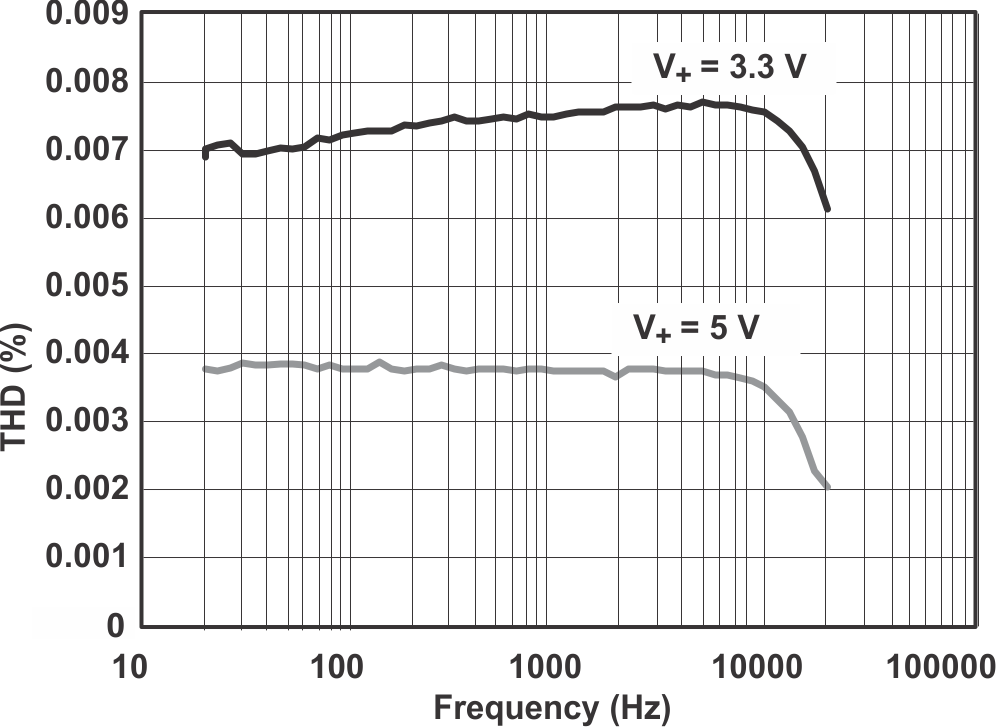

TS5A3166-Q1 grp11_cds187.gif Figure 11. Total Harmonic Distortion vs Frequency
(V+ = 5 V)

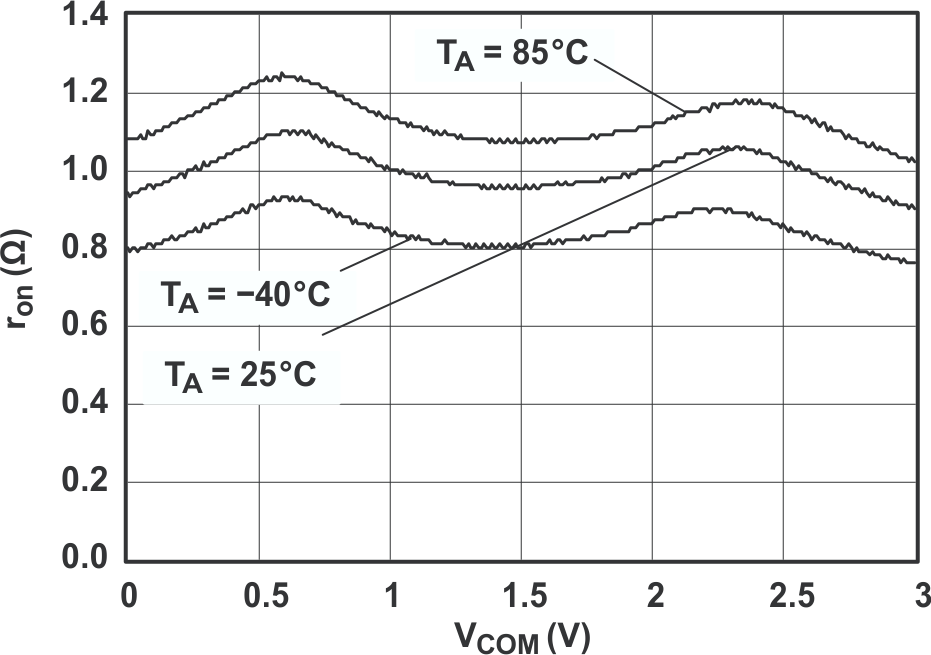

TS5A3166-Q1 grp2_cds187.gif Figure 2. ron vs VCOM (V+ = 3 V)

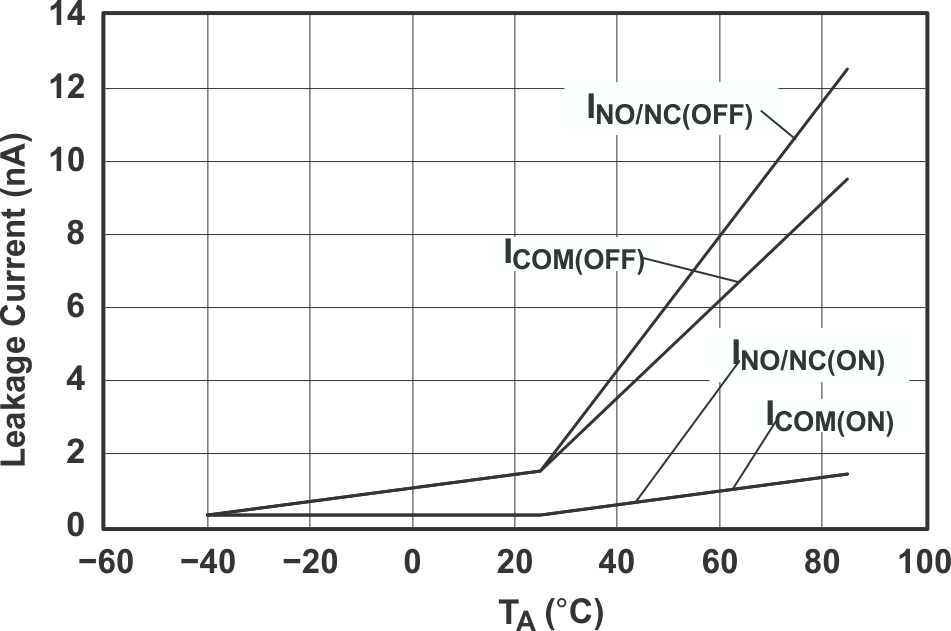

TS5A3166-Q1 grp4_cds187.gif Figure 4. Leakage Current vs Temperature (V+ = 5.5 V)

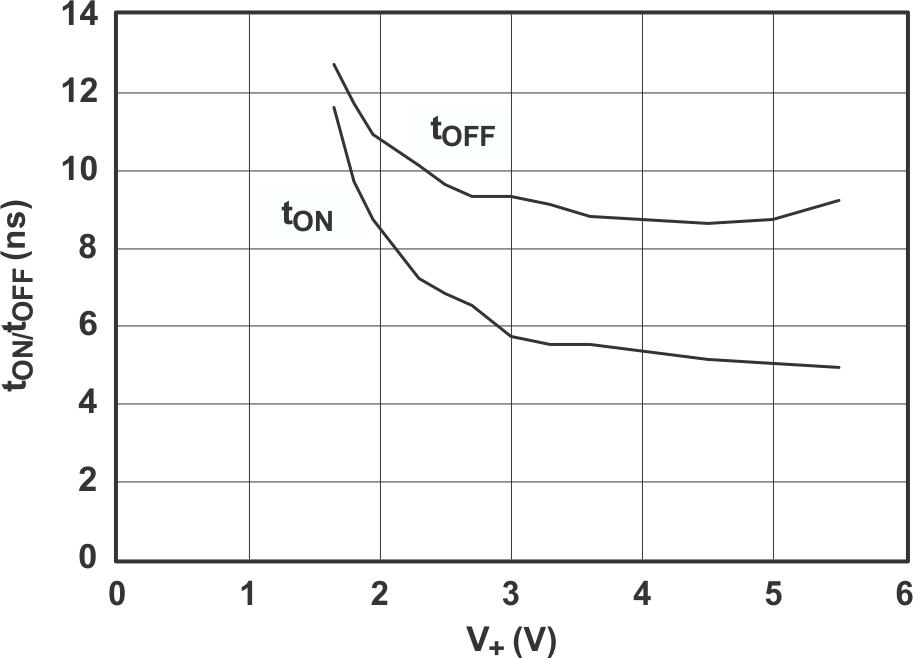

TS5A3166-Q1 grp6_cds187.gif Figure 6. tON and tOFF vs Supply Voltage

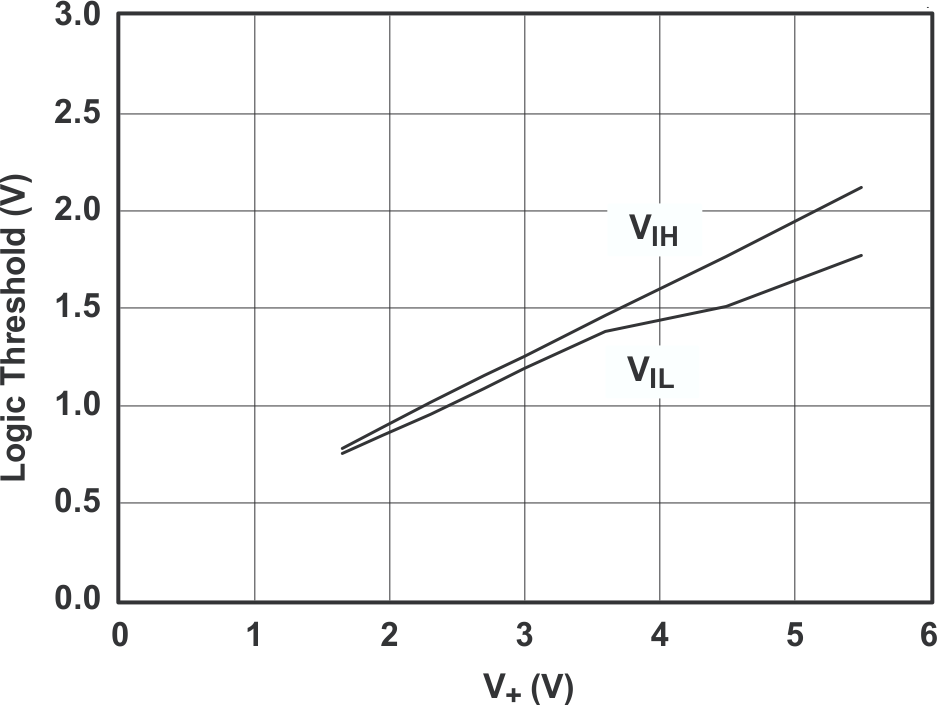

TS5A3166-Q1 grp8_cds187.gif Figure 8. Logic Threshold vs V+

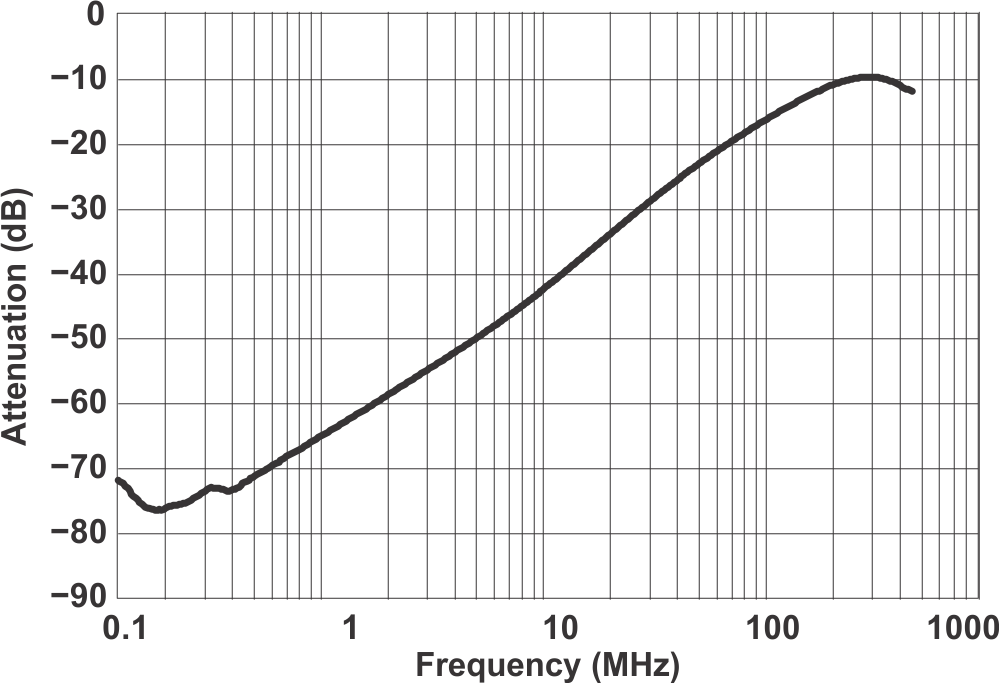

TS5A3166-Q1 grp1x_cds187.gif Figure 10. OFF Isolation vs Frequency (V+ = 5 V)

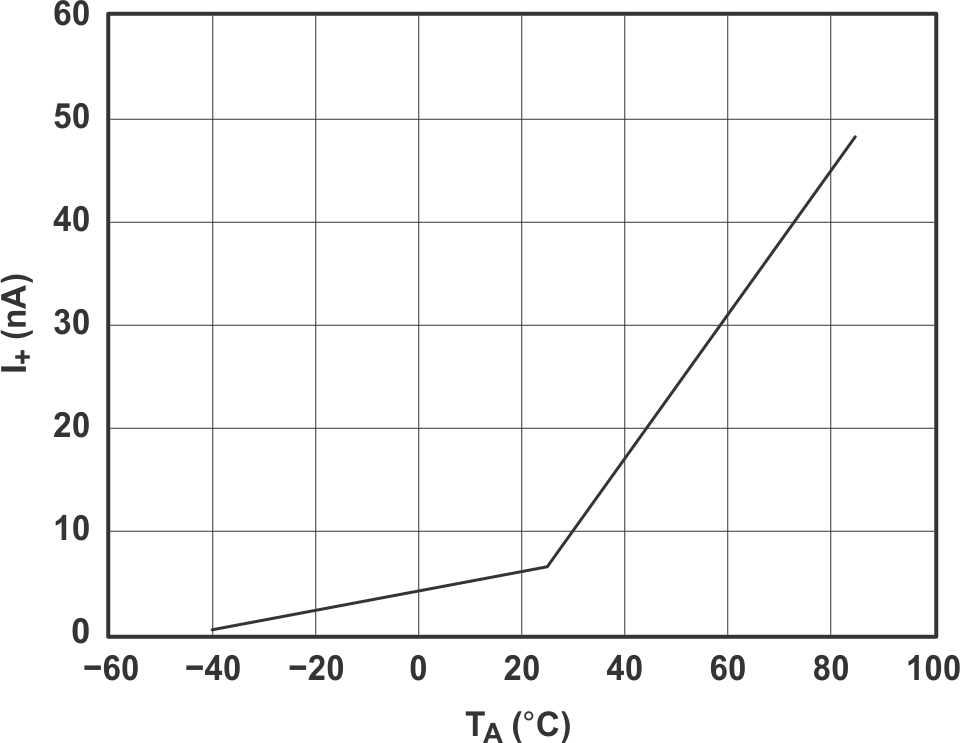

TS5A3166-Q1 grp12_cds187.gif Figure 12. Power-Supply Current vs Temperature
(V+ = 5 V)
