10 Application and Implementation

NOTE

Information in the following applications sections is not part of the TI component specification, and TI does not warrant its accuracy or completeness. TI’s customers are responsible for determining suitability of components for their purposes. Customers should validate and test their design implementation to confirm system functionality.

10.1 Application Information

SPST analog switch is a basic component that could be used in any electrical system design. The following are some basic applications that utilize the TS5A3166, more detailed applications may be found in the Typical Application section.

  1. Gain-control circuit for amplifier
    1. Additional details are available in the Typical Application section.
  2. Improve lock time of a PLL by changing the time constant
    1. Example Diagram:
TS5A3166-Q1 app1_scds357.gif Figure 22. Improved Lock Time Circuit Simplified Block Diagram
  1. Improve power consumption for PLL
    1. Example Diagram:

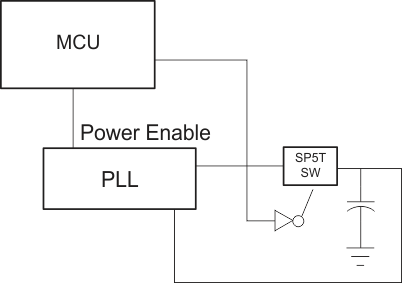

TS5A3166-Q1 app2_scds357.gif Figure 23. PLL Improved Power Consumption Simplified Block Diagram

10.2 Typical Application

TS5A3166-Q1 typapp_scds357.gif Figure 24. Gain-Control Circuit for OP Amplifier

10.2.1 Design Requirements

Place a switch in series with the input of the op amp. Since the op amp input impedance is very large, a switch on ron(1) is irrelevant.

10.2.2 Detailed Design Procedure

By choosing values of R1 and R2, such that Rx >> ron(x), ron of TS5A3166 can be ignored. The gain of op amp can be calculated as follow:

Equation 1. Vo / VI = 1+ R|| / R3
Equation 2. R|| = (R1+ron(1)) || (R2+ron(2))

10.2.3 Application Curves

TS5A3166-Q1 grp1_cds187.gif Figure 25. ron vs VCOM
TS5A3166-Q1 grp3_cds187.gif Figure 27. ron vs VCOM (V+ = 5 V)
TS5A3166-Q1 grp2_cds187.gif Figure 26. ron vs VCOM (V+ = 3 V)
