Application and Implementation

NOTE

Information in the following applications sections is not part of the TI component specification, and TI does not warrant its accuracy or completeness. TI’s customers are responsible for determining suitability of components for their purposes. Customers should validate and test their design implementation to confirm system functionality.

Application Information

The switch is bidirectional, so the NO, NC, and COM pins may be used as either inputs or outputs.

Typical Application

TS5A12301E TS5A12301E_typical_application.gif Figure 23. Application Schematic

Design Requirements

This TS5A12301E application may be properly operated without any external components. Unused pins (for example, COM, NC, and NO) may be left floating. Digital control pin (IN) has an integrated 6-MΩ pulldown resistor, so no external component is required to keep the logic pin in a known state.

Detailed Design Procedure

To ensure proper performance, keep all signals passing through the switch within the ranges specified in Recommended Operating Conditions.

Application Curve

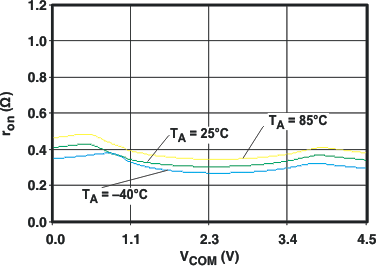

TS5A12301E typ03_ces707.gif
VCC = 4.5 V
Figure 24. ron vs VCOM
