7 Parameter Measurement Information

on_resis_cds208.gifFigure 16. ON-state Resistance (RON)

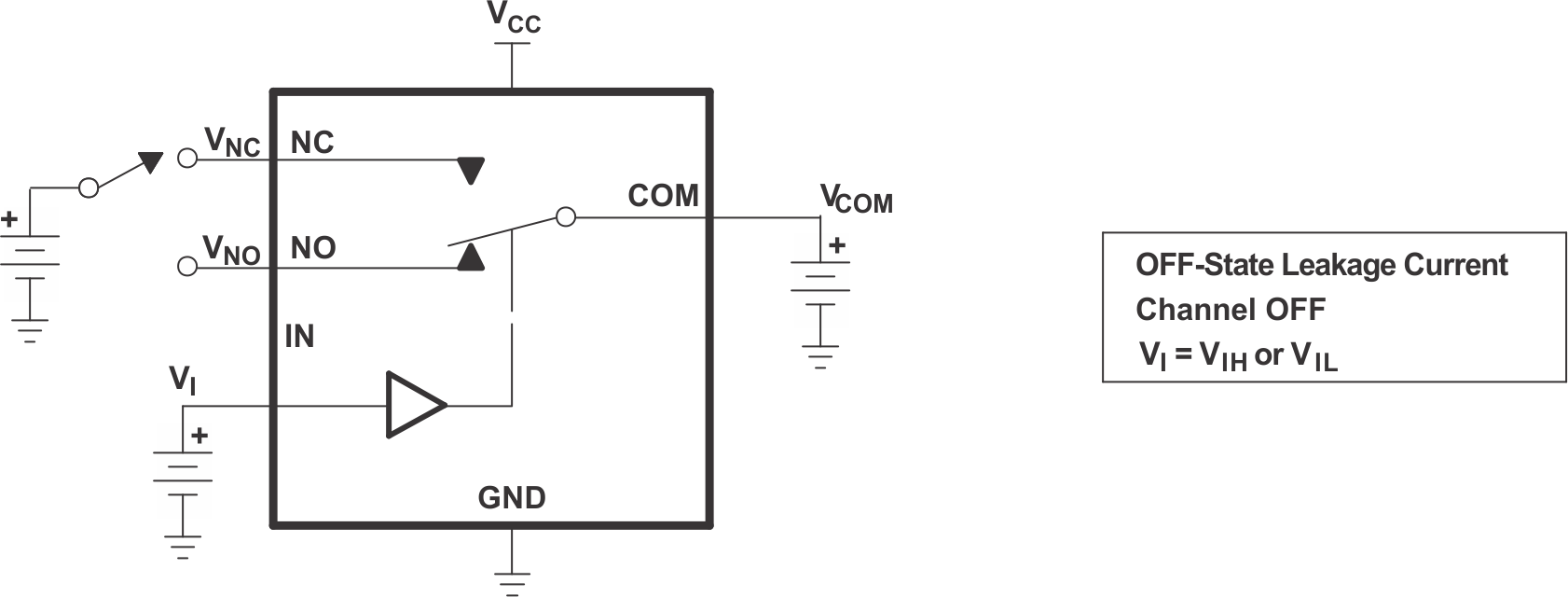

off_leak_cds208.gifFigure 17. OFF-State Leakage Current (INC(OFF), INC(PWROFF), INO(OFF), INO(PWROFF), ICOM(OFF), ICOM(PWROFF))
on-leak_cds208.gifFigure 18. ON-State Leakage Current (ICOM(ON), INC(ON), INO(ON))
capacitance_cds208.gifFigure 19. Capacitance (CI, CCOM(ON), CNC(OFF), CNO(OFF), CNC(ON), CNO(ON))
A. All input pulses are supplied by generators having the following characteristics:
PRR ≤ 10 MHz, ZO = 50 Ω, tr < 5 ns, tf < 5 ns.
B. CL includes probe and jig capacitance.
Figure 20. Turn-On (tON) and Turn-Off Time (tOFF)
A. CL includes probe and jig capacitance.
B. All input pulses are supplied by generators having the following characteristics:
PRR ≤ 10 MHz, ZO = 50 Ω, tr < 5 ns, tf < 5 ns.
Figure 21. Break-Before-Make Time (tBBM)
bandwidth_cds208.gifFigure 22. Bandwidth (BW)

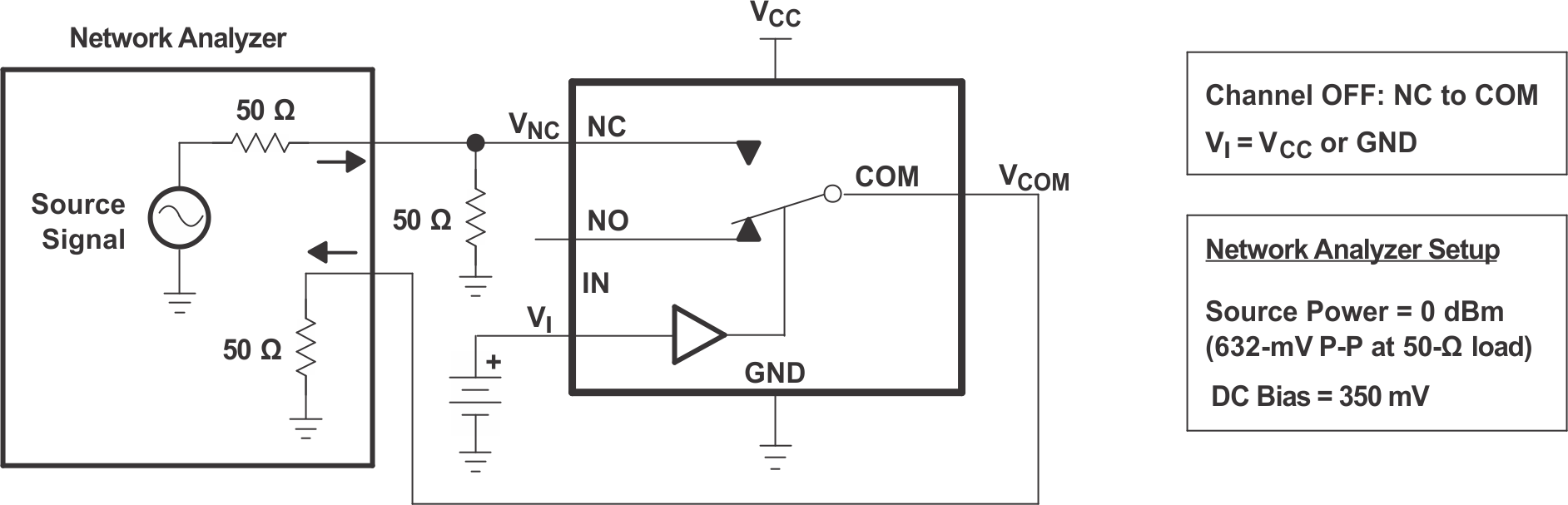

off_isol_cds208.gifFigure 23. OFF Isolation (OISO)
crosstalk_cds208.gifFigure 24. Crosstalk (XTALK)
A. All input pulses are supplied by generators having the following characteristics:
PRR ≤ 10 MHz, ZO = 50 Ω, tr < 5 ns, tf < 5 ns.
B. CL includes probe and jig capacitance.
Figure 25. Charge Injection (QC)
A. CL includes probe and jig capacitance.
Figure 26. Total Harmonic Distortion (THD)
