5 Pin Configuration and Functions

GUID-1037C32D-7FC9-4B90-91BD-3DA11457EA2B-low.gifFigure 5-1 16-Pin SSOP (DB) or TSSOP (PW) Packages, Top View

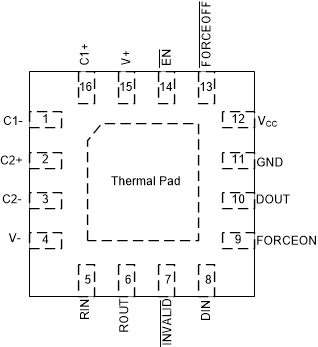

GUID-20200910-CA0I-CQ3J-CHCF-QZFXBJ35NF5T-low.gifFigure 5-2 16-pin VQFN (RGT) Package, Top View
Table 5-1 Pin Functions
PIN TYPE DESCRIPTION
NAME DB or PW

RGT
C1+ 2

16

 — Positive terminals of the voltage-doubler charge-pump capacitors
C2+ 5

2

 —
C1– 4

1

 — Negative terminals of the voltage-doubler charge-pump capacitors
C2– 6

3

 —
DIN 11

8

 I Driver input
DOUT 13

10

 O RS-232 driver output
EN 1

14

 I Low input enables receiver ROUT output. High input sets ROUT to high impedance.
FORCEOFF 16

13

 I Automatic power-down control input
FORCEON 12

9

 I Automatic power-down control input
GND 14

11

 GND Ground
INVALID 10

7

 O Invalid output pin. Output is low when all RIN inputs are unpowered.
RIN 8

5

 I RS-232 receiver input
ROUT 9

6

 O Receiver output
VCC 15

12

 — 3-V to 5.5-V supply voltage
V+ 3

15

 O 5.5-V supply generated by the charge pump
V– 7

4

 O –5.5-V supply generated by the charge pump
Thermal Pad None Thermal Pad - Exposed thermal pad. Can be connected to GND or left floating.
