9.2.3 Application Curves

VIN = 5.0 V, VOUT = 1.2 V, TA = 25°C, BOM = Table 9-2, unless otherwise noted. Solid lines show the FPWM mode and dashed lines show PSM.
VIN = 5.0 V, VOUT = 1.2 V, TA = 25°C, BOM = Table 9-2, unless otherwise noted. Solid lines show the FPWM mode and dashed lines show PSM.
TPSM8286xAA0SRDJPSM and FPWM
Figure 9-2 Efficiency VIN = 5.0 V and TA = 25°C. VIN = 5.0 V, VOUT = 1.2 V, TA = 25°C, BOM = Table 9-2, unless otherwise noted. Solid lines show the FPWM mode and dashed lines show PSM.
TPSM8286xAA0SRDJPSM and FPWM
Figure 9-4 Efficiency VIN = 3.3 V and TA = 25°C
TPSM8286xAA0SRDJPSM and FPWM
Figure 9-6 Efficiency VIN = 2.8 V and TA = 25°C
TPSM8286xAA0HRDMPSM and FPWM
Figure 9-8 Efficiency VIN = 5.0 V and TA = 25°C
TPSM8286xAA0HRDMPSM and FPWM
Figure 9-10 Efficiency VIN = 3.3 V and TA = 25°C
TPSM8286xAA0HRDMPSM and FPWM
Figure 9-12 Efficiency VIN = 2.8 V and TA = 25°C
TA = 25°C
Figure 9-14 Load Regulation VIN = 5.0 V and PSM
TA = 25°C
Figure 9-16 Load Regulation VIN = 3.3 V and PSM
TA = 25°C
Figure 9-18 Load Regulation VIN = 2.8 V and PSM
PSM and FPWMTA = 25°C
Figure 9-20 Switching Frequency VIN = 5.0 V
VIN = 5.0 VVOUT = 1.2 VTA = 25°C

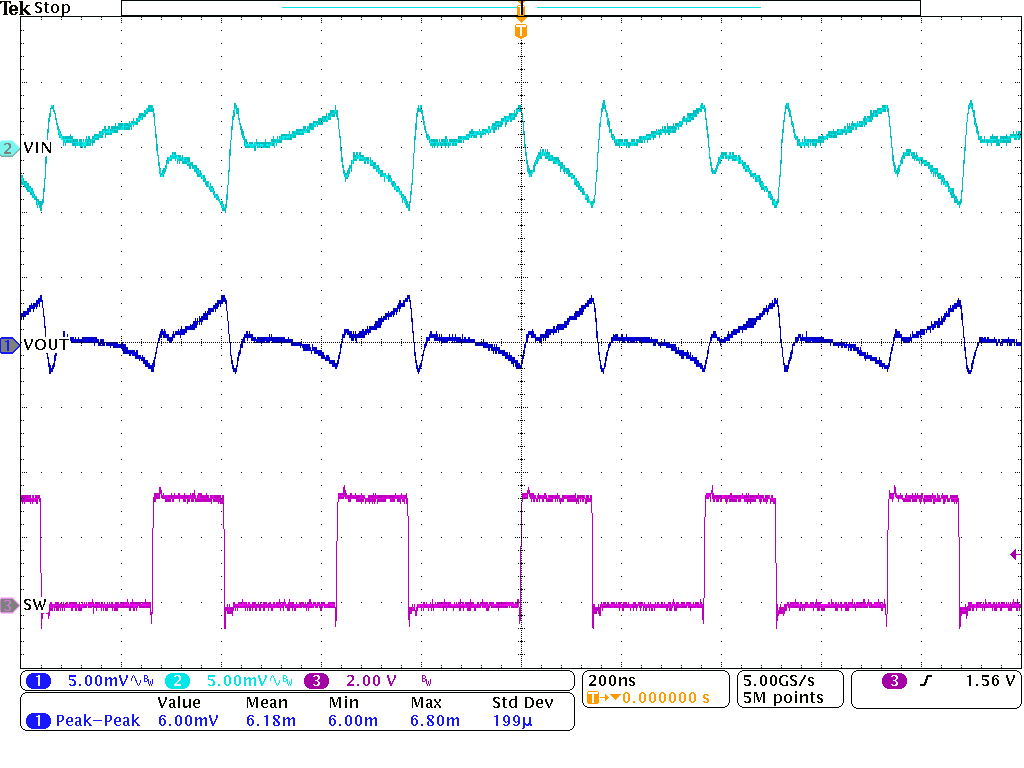

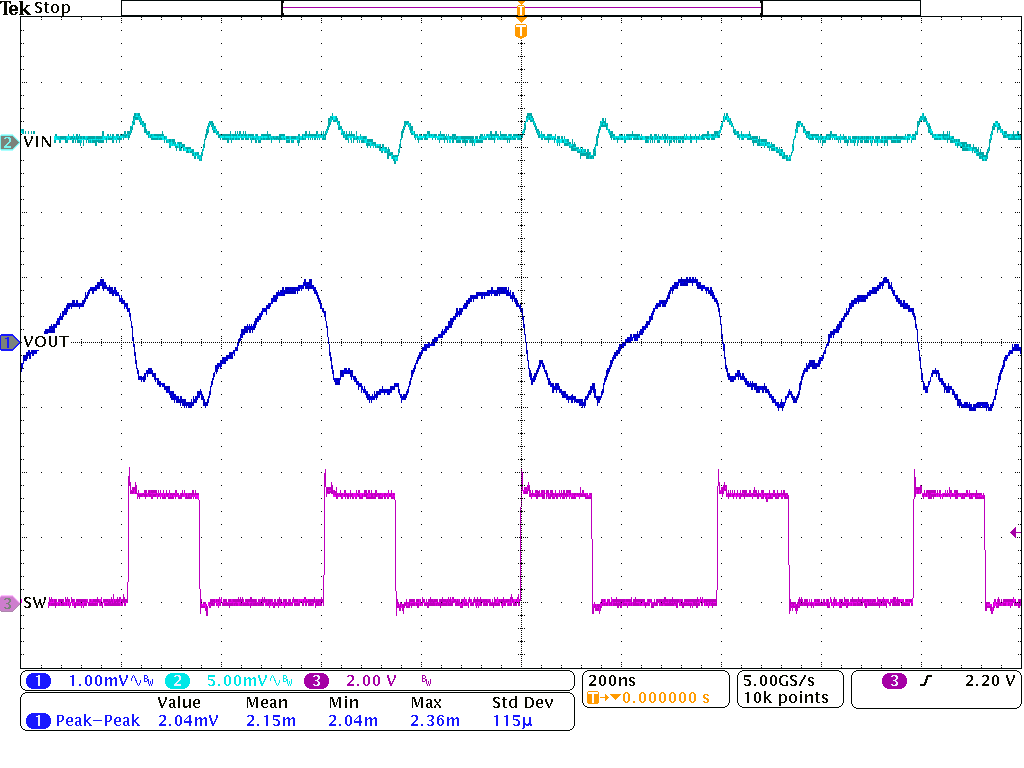

Figure 9-22 FPWM Operation IOUT = 6 A
VIN = 5.0 VVOUT = 1.2 VTA = 25°C
Figure 9-24 Load Transient FPWM IOUT = 0 A → 6 A
RVSET = 56.2 kΩIOUT = 6.0 A
Figure 9-26 Start-Up into Full Load
VIN = 5.0 VVOUT = 1.2 VTA = 25°C
Figure 9-28 Load Sweep IOUT = 20 mA → 6 A
RθJA = 25.4°C/WTJmax = 125°C
Figure 9-30 Safe Operating Area VIN = 5.0-V TPSM82866AA0HRDMR
RθJA = 25.4°C/WTJmax = 125°C
Figure 9-32 Safe Operating Area VIN = 5.0-V TPSM82866AA0SRDJR
TPSM8286xAA0SRDJFPWM
Figure 9-3 Efficiency VIN = 5.0 V and TA = 85°C
TPSM8286xAA0SRDJ

FPWM

Figure 9-5 Efficiency VIN = 3.3 V and TA = 85°C
TPSM8286xAA0SRDJ

FPWM

Figure 9-7 Efficiency VIN = 2.8 V and TA = 85°C
TPSM8286xAA0HRDMFPWM
Figure 9-9 Efficiency VIN = 5.0 V and TA = 85°C
TPSM8286xAA0HRDM

FPWM

Figure 9-11 Efficiency VIN = 3.3 V and TA = 85°C
TPSM8286xAA0HRDM

FPWM

Figure 9-13 Efficiency VIN = 2.8 V and TA = 85°C
TA = 25°C
Figure 9-15 Load Regulation VIN = 5.0 V and FPWM
TA = 25°C
Figure 9-17 Load Regulation VIN = 3.3 V and FPWM
TA = 25°C
Figure 9-19 Load Regulation VIN = 2.8 V and FPWM
PSM and FPWMTA = 25°C
Figure 9-21 Switching Frequency VIN = 3.3 V
VIN = 5.0 VVOUT = 1.2 VTA = 25°C

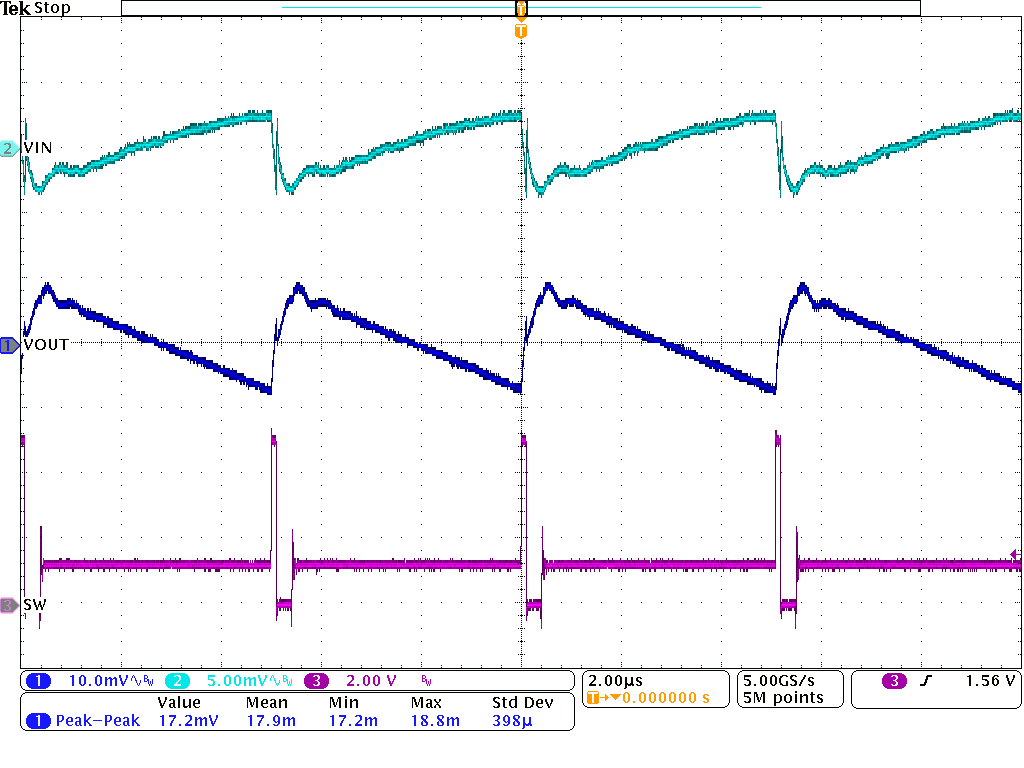

Figure 9-23 PSM Operation IOUT = 0.1 A
VIN = 5.0 VVOUT = 1.2 VTA = 25°C
Figure 9-25 Load Transient PSM IOUT = 0 A → 6 A
RVSET = 56.2 kΩIOUT = 0 A
Figure 9-27 Start-Up with No Load
RLOAD = 100 mΩ (during overload)
Figure 9-29 HICCUP Short-Circuit Protection
RθJA = 25.4°C/WTJmax = 125°C
Figure 9-31 Safe Operating Area VIN = 3.3-V TPSM82866AA0HRDMR
RθJA = 25.4°C/WTJmax = 125°C
Figure 9-33 Safe Operating Area VIN = 3.3-V TPSM82866AA0SRDJR
