7.7 Typical Characteristics

R(REF) = 8.35 kΩ
CONF_REFRANGE[1:0] = 3h
Figure 7-1 Fault Current vs Supply Voltage
CONF_IOUTx[5:0] = 3Fh
CONF_REFRANGE[1:0] = 3h
Figure 7-3 Output Full-range Current vs REF Resistor
R(REF) = 12.6 kΩ
CONF_IOUTx[5:0] = 3Fh

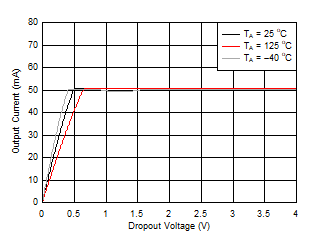

Figure 7-5 Output Current vs Dropout Voltage
R(REF) = 12.6 kΩ
CONF_IOUTx[5:0] = 3Fh
Figure 7-7 Average Current vs PWMOUT[7:0]

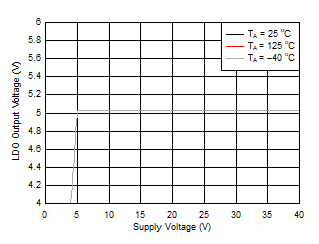

GUID-C5C7162C-52BE-429C-B45C-76DCDBB815E8-low.gifFigure 7-9 LDO Output Line Regulation
CONF_REFRANGE[1:0] = 3h

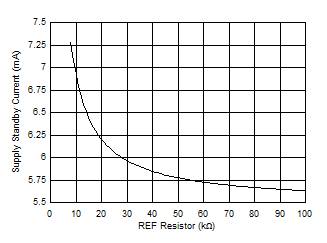

Figure 7-2 Standby Current vs REF Resistor
CONF_REFRANGE[1:0] = 3h

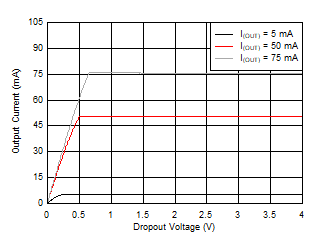

Figure 7-4 Output Current vs Dropout Voltage
CONF_REFRANGE[1:0] = 3h

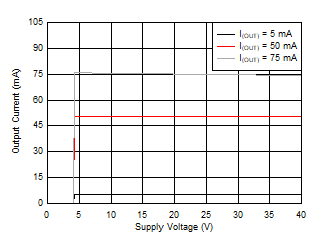

Figure 7-6 Output Current vs Supply Voltage
R(REF) = 8.35 kΩ & 12.6 kΩ
CONF_REFRANGE[1:0] = 3h

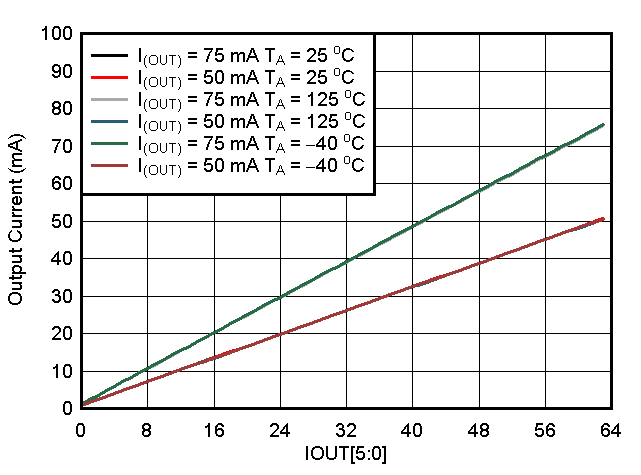

Figure 7-8 Output DC Current vs IOUT[5:0]
GUID-C9721F56-FE66-496F-BB5C-6E5C5876821C-low.gifFigure 7-10 LDO Output Load Regulation
Ch1 = V(SUPPLY)Ch3 = V(OUT0)Ch6 = I(OUT0)
Figure 7-11 PWM Dimming at 200 Hz
Ch1 = V(SUPPLY)Ch3 = V(OUT0)Ch6 = I(OUT0)
Figure 7-13 Supply Dimming In Fail-Safe Mode
Ch1 = V(SUPPLY)Ch2 = ERRCh3 = V(OUT0)
Ch6 = I(OUT0)
Figure 7-15 Transient Overvoltage
Ch1 = V(SUPPLY)Ch2 = ERRCh3 = V(OUT0)
Ch6 = I(OUT0)
Figure 7-17 Superimposed Alternating Voltage 15 Hz
Ch1 = V(SUPPLY)Ch2 = ERRCh3 = V(OUT0)
Ch4 = V(LDO)Ch6 = I(OUT0)
Figure 7-19 Slow Decrease and Quick Increase of Supply Voltage
Ch1 = V(SUPPLY)Ch2 = ERRCh4 = V(LDO)
Ch6 = I(LDO)0 to 80 mA
Figure 7-21 LDO Output Load Transient
Ch1 = V(SUPPLY)Ch2 = ERRCh3 = V(OUT0)
Ch6 = I(OUT0)T(ODPW) = 100 µsF(PWM) = 2 kHz
Figure 7-23 LED Short-Circuit Detection In Normal Mode
Ch1 = V(SUPPLY)Ch2 = ERRCh3 = V(OUT5)
Ch6 = I(OUT0)T(ODPW) = 100 µsF(PWM) = 2 kHz

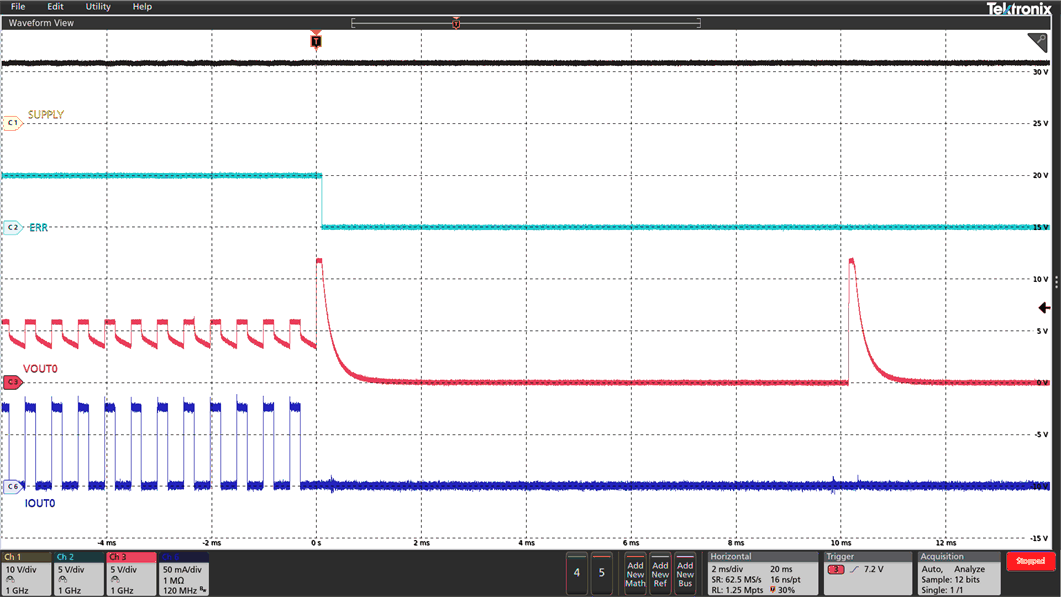

Figure 7-25 LED Open-Circuit Detection In FS Mode
Ch1 = V(SUPPLY)Ch2 = ERRCh3 = V(OUT5)
Ch6 = I(OUT0)T(ODPW) = 100 µsF(PWM) = 2 kHz
Figure 7-27 LED Short-Circuit Detection In Fail-Safe Mode
Ch1 = V(SUPPLY)Ch3 = V(OUT0)Ch6 = I(OUT0)
Figure 7-12 PWM Dimming at 2000 Hz
Ch1 = V(SUPPLY)Ch2 = ERRCh3 = V(OUT0)
Ch6 = I(OUT0)
Figure 7-14 Transient Undervoltage
Ch1 = V(SUPPLY)Ch2 = ERRCh3 = V(OUT0)
Ch6 = I(OUT0)

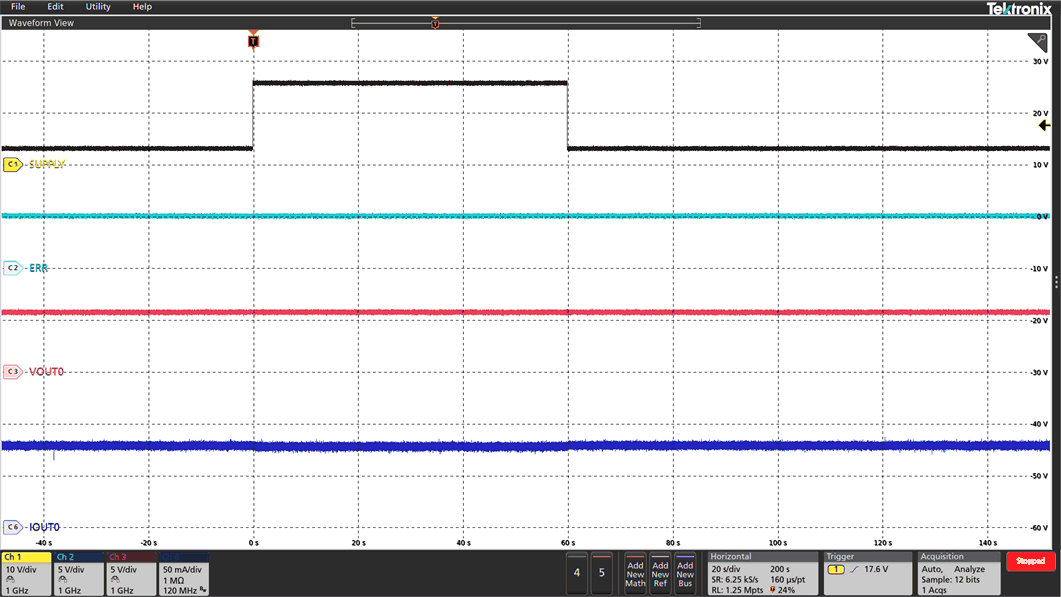

Figure 7-16 Jump Start
Ch1 = V(SUPPLY)Ch2 = ERRCh3 = V(OUT0)
Ch6 = I(OUT0)

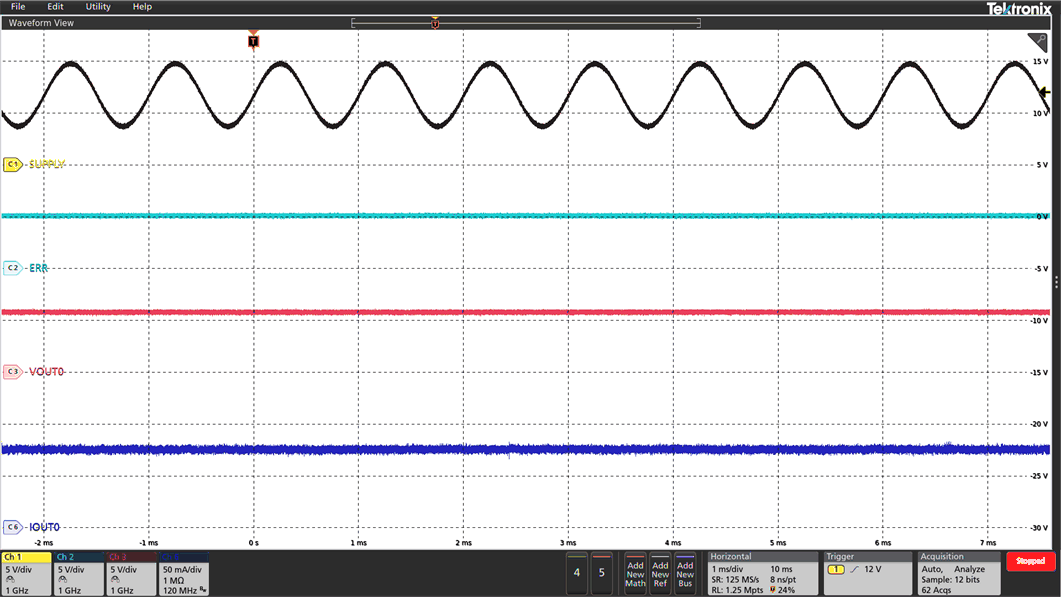

Figure 7-18 Superimposed Alternating Voltage 1 kHz
Ch1 = V(SUPPLY)Ch2 = ERRCh3 = V(OUT0)
Ch4 = V(LDO)Ch6 = I(OUT0)
Figure 7-20 Slow Decrease and Slow Increase of Supply Voltage
Ch1 = V(SUPPLY)Ch2 = ERRCh3 = V(OUT0)
Ch6 = I(OUT0)T(ODPW) = 100 µsF(PWM) = 2 kHz
Figure 7-22 LED Open-Circuit Detection In Normal Mode
Ch1 = V(SUPPLY)Ch2 = ERRCh3 = V(OUT5)
Ch6 = I(OUT5)T(ODPW) = 100 µsF(PWM) = 2 kHz
V(ADCSHORTTH) = 4 V
Figure 7-24 Single-LED Short-Circuit Detection In Normal Mode
Ch1 = V(SUPPLY)Ch2 = ERRCh3 = V(OUT5)
Ch6 = I(OUT0)T(ODPW) = 100 µsF(PWM) = 2 kHz
Figure 7-26 LED Open-Circuit Recovery In FS Mode
Ch1 = V(SUPPLY)Ch2 = ERRCh3 = V(OUT5)
Ch6 = I(OUT0)T(ODPW) = 100 µsF(PWM) = 2 kHz
Figure 7-28 LED Short-Circuit Recovery In Fail-Safe Mode
