10
Layout
10.1
Layout Guidelines
For best performance, all traces should be as short as possible, and no longer than 5 cm.
Use wide traces for IN, OUT and GND to minimize the parasitic electrical effects.
Place the output capacitors (COUT) as close as possible to the OUT pin of the device.
10.2
Layout Example

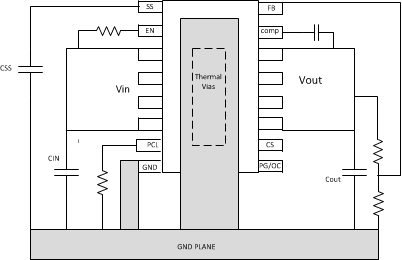

Figure 25.
PCB Layout Example
