6.7 Typical Characteristics

VIN = 14 V, VEN ≥ 2 V, TJ = –40°C to +150°C (unless otherwise noted)

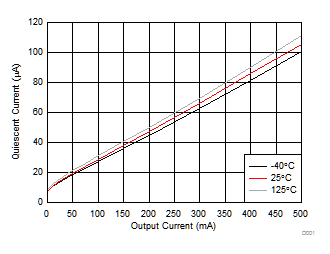

TPS7B68-Q1 D001_SLVSD43.gif
Figure 1. Quiescent Current vs Output Current
TPS7B68-Q1 D003_SLVSD43.gif
Figure 3. Shutdown Current vs Ambient Temperature
TPS7B68-Q1 D005_SLVSD43.gif
Figure 5. Dropout Voltage vs Output Current

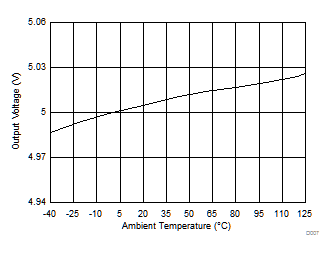

TPS7B68-Q1 D007_SLVSD43.gif
VOUT = 5 V
Figure 7. Output Voltage vs Ambient Temperature

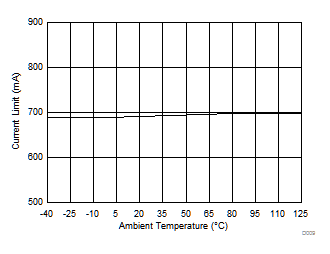

TPS7B68-Q1 D009_SLVSD43.gif
VIN = 5.6 V
Figure 9. Output Current Limit (ILIM) vs Ambient Temperature

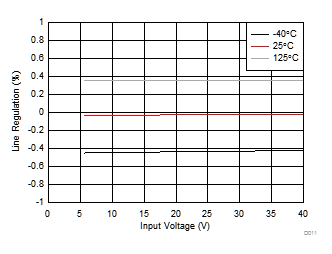

TPS7B68-Q1 D011_SLVSD43.gif
Figure 11. Line Regulation

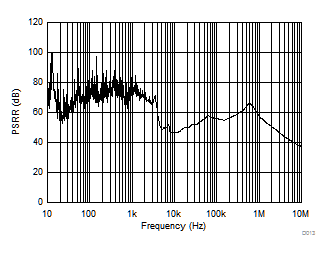

TPS7B68-Q1 D013_SLVSD43.gif
COUT = 10 μF IOUT = 100 mA TA = 25°C
Figure 13. PSRR vs Frequency

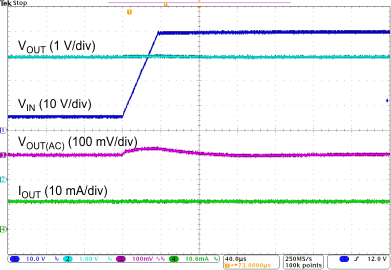

TPS7B68-Q1 D015_SLVSD43.gif
VIN = 6 V to 40 V VOUT = 5 V COUT = 10 µF
IOUT = 1 mA
Figure 15. Line Transient

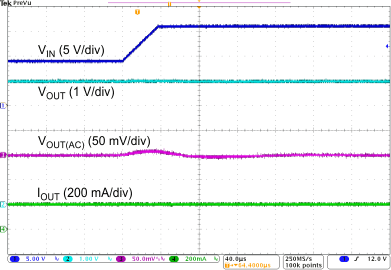

TPS7B68-Q1 D017_SLVSD43.gif
VIN = 6 V to 40 V VOUT = 5 V COUT = 10 µF
IOUT = 200 mA
Figure 17. Line Transient
TPS7B68-Q1 D019_SLVSD43.gif
VOUT = 5 V COUT = 10 µF IOUT = 1 mA to 200 mA
Figure 19. Load Transient

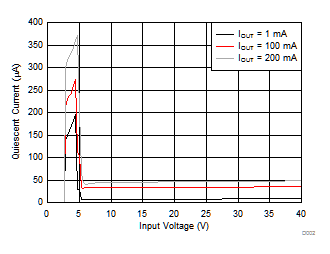

TPS7B68-Q1 D002_SLVSD43.gif
Figure 2. Quiescent Current vs Input Voltage

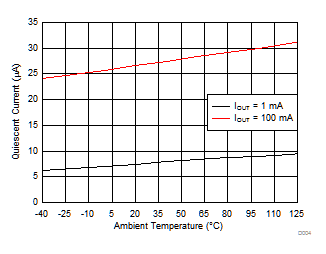

TPS7B68-Q1 D004_SLVSD43.gif
Figure 4. Quiescent Current vs Ambient Temperature
TPS7B68-Q1 D006_SLVSD43.gif
IOUT = 200 mA
Figure 6. Dropout Voltage vs Ambient Temperature
TPS7B68-Q1 D008_SLVSD43.gif
VOUT = 5 V
Figure 8. Output Voltage vs Input Voltage

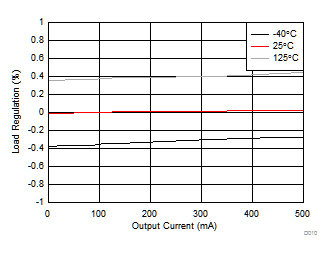

TPS7B68-Q1 D010_SLVSD43.gif
Figure 10. Load Regulation
TPS7B68-Q1 D012_SLVSD43.gif
COUT = 10 μF IOUT = 1 mA TA = 25°C
Figure 12. PSRR vs Frequency

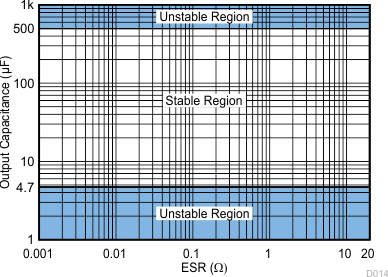

TPS7B68-Q1 D014A_SLVSD43.gif
Figure 14. ESR Stability vs Output Capacitance
TPS7B68-Q1 D016_SLVSD43.gif
VIN = 40 V to 6 V VOUT = 5 V COUT = 10 µF
IOUT = 1 mA
Figure 16. Line Transient

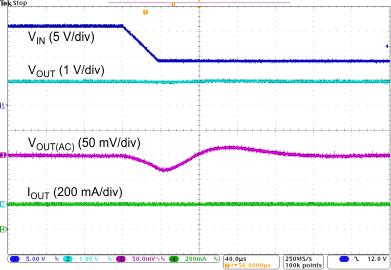

TPS7B68-Q1 D018_SLVSD43.gif
VIN = 40 V to 6 V VOUT = 5 V COUT = 10 µF
IOUT = 200 mA
Figure 18. Line Transient
TPS7B68-Q1 D020_SLVSD43.gif
VOUT = 5 V COUT = 10 µF IOUT = 200 mA to 1 mA
Figure 20. Load Transient
