Output Voltage Restart (Overshoot Prevention Circuit)

Wide bandwidth linear regulators suffer from an undesirable excessive overshooting of the output voltage during restart events that occur when the CNR/SS and COUT capacitors are not fully discharged. In this device, and as shown in Figure 8-1, this undesirable behavior is mitigated by implementing low hysteresis circuitry consisting of two ORed comparators to detect when the input voltage is either 20 mV (typical) lower than the VNR/SS reference voltage or 300 mV (typical) lower than VOUT.

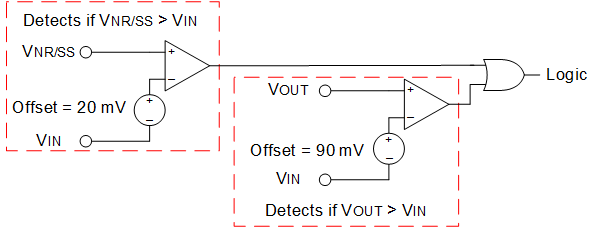

GUID-20210430-CA0I-44CM-5S61-SN43KGXGP2SL-low.gif Figure 8-1 Overshoot Prevention Circuit

When the device is operating in dropout, transient events (such as an input voltage brownout, heavy load transient, or short-circuit event) can force the device in a reversed bias condition where the input voltage is either 20 mV (typical) lower than the VNR/SS reference voltage or 300 mV (typical) lower than VOUT. The output overshoot prevention circuit can be triggered, as shown in Figure 8-2, thus forcing the device to shutdown and restart, thereby preventing output voltage overshoot. If the device is still operating in dropout and the error condition that triggered this circuit is still present, an additional restart can occur until these conditions are removed or the device is no longer in dropout. The restart always occurs from a discharged state and always has the same characteristics as the initial LDO power-up, so the start-up time, VOUT ramp rate, and VOUT monotonicity are all predictable.

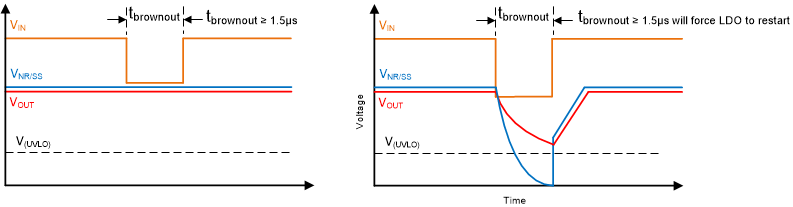

GUID-20210427-CA0I-CTFX-81X2-K0KTSFK4N8T6-low.gif Figure 8-2 Device Behavior in Dropout

Figure 8-3 and Figure 8-4 show examples of a soft brownout and a brownout event, respectively.

The brownout overshoot is present with higher VIN slew rates. A 1-V/μs slew rate was used in Figure 8-5.

GUID-20220308-SS0I-8M4M-4MFT-5TCWW0V9SHKC-low.pngFigure 8-3 Example: Soft Brownout to VNR/SS
GUID-20220323-SS0I-JGLX-WRXK-VC0SXWGLT1F5-low.pngFigure 8-5 Example: Brownout With Overshoot Recovery
GUID-20220308-SS0I-PDM0-5JFP-DQJ7G45N60FD-low.pngFigure 8-4 Example: Brownout

The overshoot prevention circuit is implemented to provide a predictable start-up and shutdown of the device without output overshoot if the EN_UV external UVLO is not used as described in this section. This circuit can be prevented from triggering by:

  1. Using an input supply capable of handling heavy load transients or a larger value input capacitor
  2. Increasing the operating headroom between VIN and VOUT (for example, when using a battery as an input supply to make sure that VIN stays higher than VOUT even when the battery is near the full discharge state)
  3. Using an input supply with a ramp rate faster than the set output voltage time constant formed by CNR/SS || RNR/SS
  4. Discharging the input supply slower than the discharge time formed by COUT || (Load || RPULLDOWN) or by the CNR/SS || (RNR/SS || RPULLDOWN_NR/SS)
