User-Configurable Output Voltage

Unlike traditional LDO devices, the TPS7A7300 comes with only one orderable part number. There is no adjustable or fixed output voltage option. The output voltage of the TPS7A7300 is selectable in accordance with the names given to the output voltage setting pins: 50 mV, 100 mV, 200 mV, 400 mV, 800 mV, and 1.6 V. For each pin connected to the ground, the output voltage setting increases by the value associated with that pin name, starting from the value of the reference voltage of 0.5 V. Floating the pins has no effect on the output voltage. Figure 6-1 through Figure 6-6 show examples of how to program the output voltages.

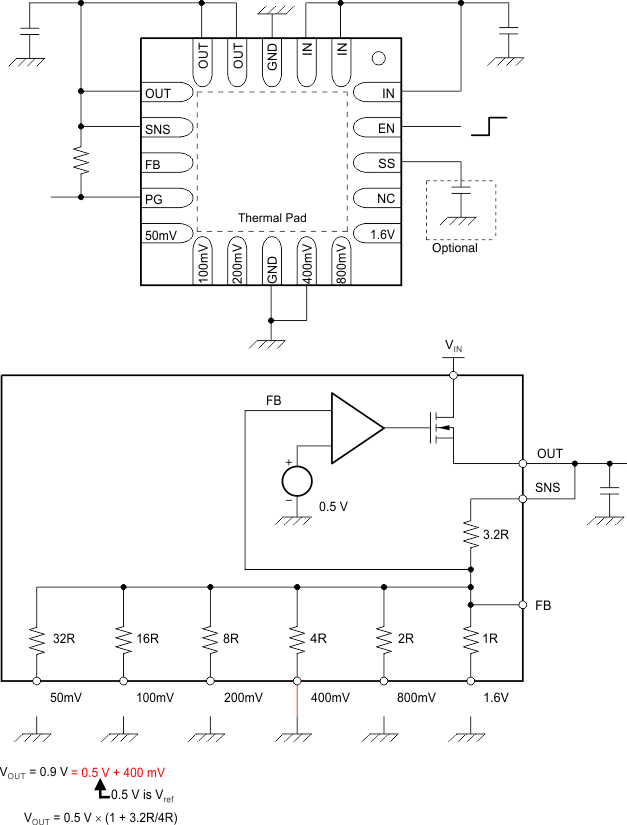

GUID-486046BC-4425-4693-9749-CDF04C8611EC-low.gifFigure 6-1 0.9-V Configuration

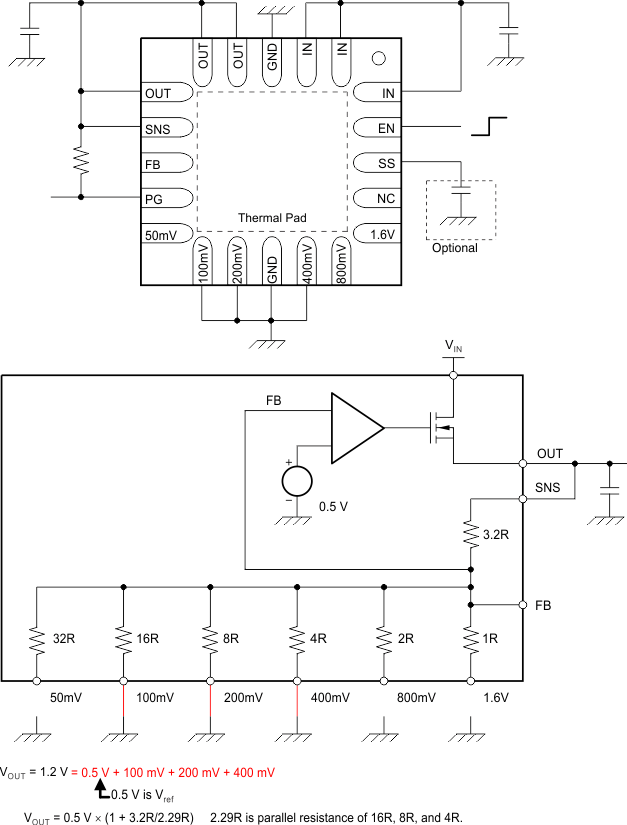

GUID-3496D15C-E746-4E82-9F02-C5D095A47004-low.gifFigure 6-2 1.2-V Configuration
GUID-0C934FA1-3D2A-4364-BE21-58FC05720A25-low.gifFigure 6-3 1.8-V Configuration

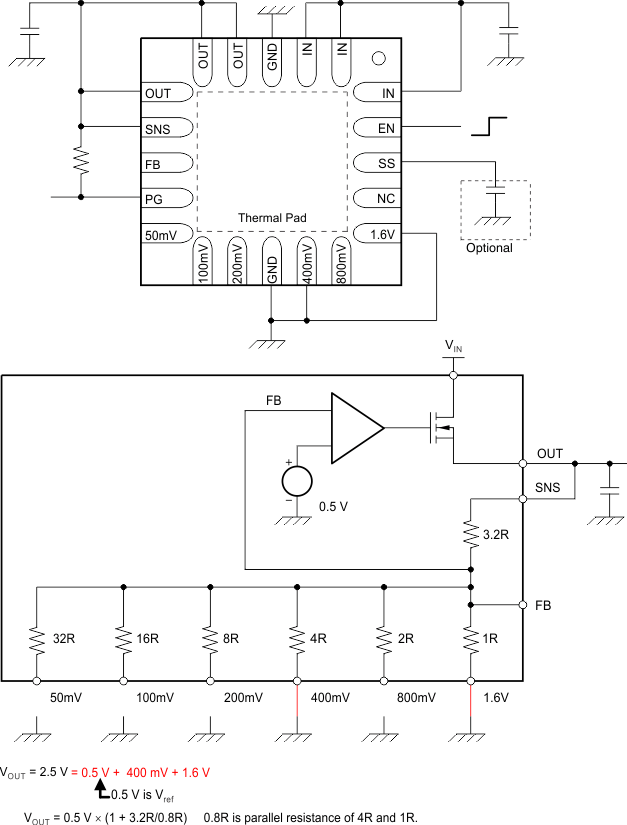

GUID-B2ABD788-A880-4580-A670-E9D6B2ABACFC-low.gifFigure 6-4 2.5-V Configuration
GUID-4CE7F4FD-5093-4413-88F6-9BC10C11EC31-low.gifFigure 6-5 3.3-V Configuration
GUID-A2411130-B835-4870-AA5F-89E00AAC02B7-low.gifFigure 6-6 3.5-V Configuration

See Table 6-1 for a full list of target output voltages and corresponding pin settings. The voltage setting pins have a binary weight; therefore, the output voltage can be programmed to any value from 0.9 V to 3.5 V in 50-mV steps.

Figure 5-11 and Figure 5-12 illustrate this output voltage programming performance.



Note:

Any output voltage setting that is not listed in Table 6-1 is not covered in the Electrical Characteristics . For output voltages greater than 3.5 V, use a traditional adjustable configuration (see the Traditional Adjustable ConfigurationTraditional Adjustable ConfigurationTraditional Adjustable Configuration section).

Table 6-1 User Configurable Output Voltage Setting
VOUT(TARGET)
(V)
50 mV 100 mV 200 mV 400 mV 800 mV 1.6 V
0.9 open open open GND open open
0.95 GND open open GND open open
1 open GND open GND open open
1.05 GND GND open GND open open
1.1 open open GND GND open open
1.15 GND open GND GND open open
1.2 open GND GND GND open open
1.25 GND GND GND GND open open
1.3 open open open open GND open
1.35 GND open open open GND open
1.4 open GND open open GND open
1.45 GND GND open open GND open
1.5 open open GND open GND open
1.55 GND open GND open GND open
1.6 open GND GND open GND open
1.65 GND GND GND open GND open
1.7 open open open GND GND open
1.75 GND open open GND GND open
1.8 open GND open GND GND open
1.85 GND GND open GND GND open
1.9 open open GND GND GND open
1.95 GND open GND GND GND open
2 open GND GND GND GND open
2.05 GND GND GND GND GND open
2.1 open open open open open GND
2.15 GND open open open open GND
2.2 open GND open open open GND
2.25 GND GND open open open GND
2.3 open open GND open open GND
2.35 GND open GND open open GND
2.4 open GND GND open open GND
2.45 GND GND GND open open GND
2.5 open open open GND open GND
2.55 GND open open GND open GND
2.6 open GND open GND open GND
2.65 GND GND open GND open GND
2.7 open open GND GND open GND
2.75 GND open GND GND open GND
2.8 open GND GND GND open GND
2.85 GND GND GND GND open GND
2.9 open open open open GND GND
2.95 GND open open open GND GND
3 open GND open open GND GND
3.05 GND GND open open GND GND
3.1 open open GND open GND GND
3.15 GND open GND open GND GND
3.2 open GND GND open GND GND
3.25 GND GND GND open GND GND
3.3 open open open GND GND GND
3.35 GND open open GND GND GND
3.4 open GND open GND GND GND
3.45 GND GND open GND GND GND
3.5 open open GND GND GND GND
